1.What is beamsplitter penta prism used for?

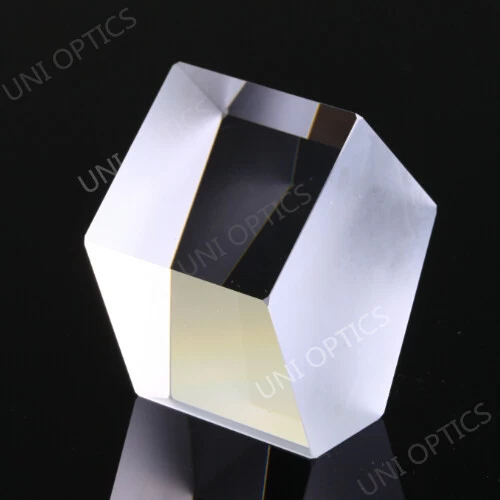

Beamsplitter Penta Prism by adding a wedge and with partial reflective coating on one of its leaning surfaces, Penta Prism can be used as Beamsplitter. Transmission/reflection (T/R) ratio of 50/50.
2.What kinds of materials can UNI Optics use to make right angle prism?
N-BK7, Grade A optical glass, Fused silica
3. What is UNI Optics standard manufacturing capability and top limit for beamsplitter penta prism?
|
Specification
|
Standard capability
|
Top limit
|
|
Dimension Tolerance
|
+/-0.2mm
|
+/-0.1mm
|
|
90° Deviation Tolerance
|
3’
|
3’’
|
|
Flatness
|
λ/2
|
λ/4
|
|
Surface Quality
|
60-40
|
40-20
|
|
Coating: Optional
input and output sides (S1 & S2) AR coated
Beamsplitter Ratio T/R: 20/80±5 or 50/50±5
Reflectivity: R>90% per surface @630-680nm
|
4. What is the typical size?
|
Part No.
|
AxB(mm)
|
L1=L2(mm)
|
|
UPBA001
|
6.0x7.0
|
9.90
|
|
UPBA002
|
10.0x10.0
|
14.14
|
|
UPBA003
|
15.0x15.0
|
21.21
|
|
UPBA004
|
20.0x20.0
|
28.28
|
|
UPBA005
|
30.0x30.0
|
42.42
|
