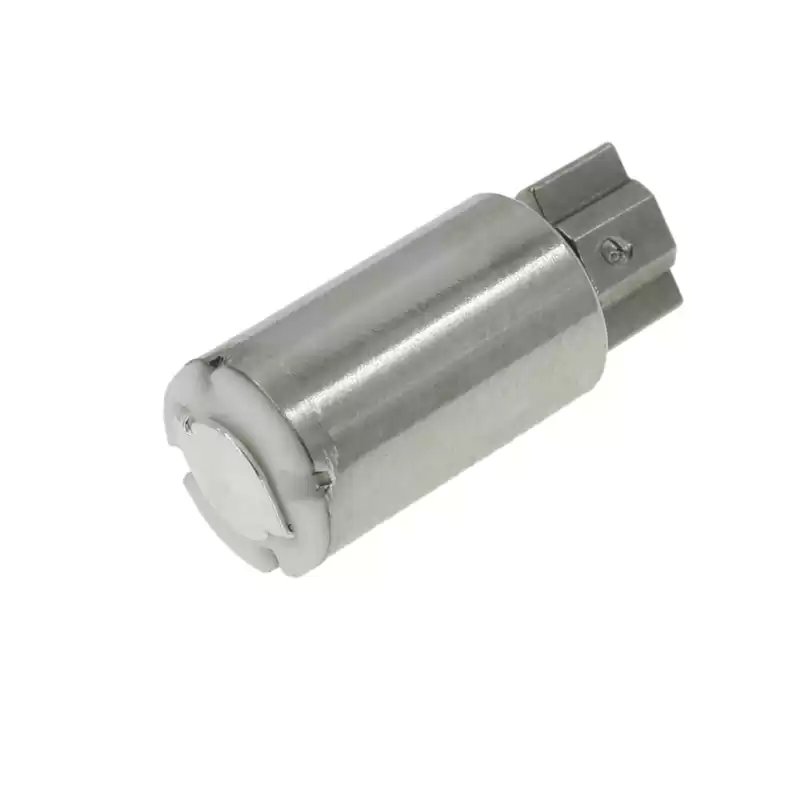

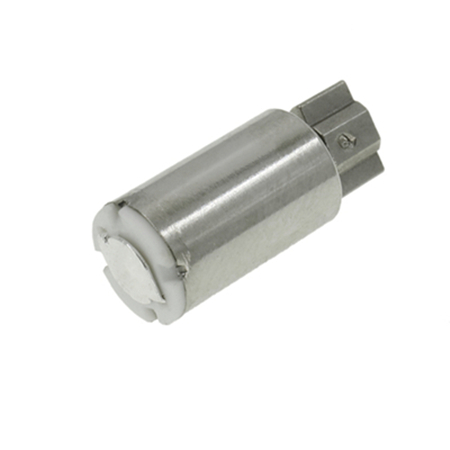

Micro 6mm Brushes Vibration Coreless PMDC Toy Motor

Brushed DC Motor has accumulated 20 years of technical advantages, has a mature motor customization platform, customization period is short, reasonable cost.

About this item

• Dimension of the motor is 6 mm(D) x 10 mm(L) / 0.24" (D) x 0.40" (L).

• Shaft Diameter: 0.8 mm / 0.03" | Motor Diameter: 6 mm / 0.24" | Motor Length: 10.3 mm / 0.40".

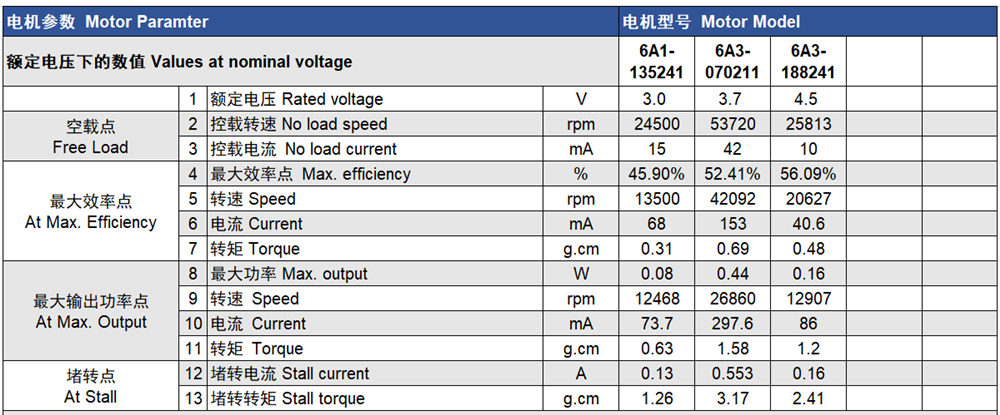

• Rated Voltage Range: DC 3.0 ~ 4.5V | Speed: 24000 ~ 53000 RPM (the actual speed may be high or low).
• Weight: 1.2 g/pcs;  Lead wire: (+): Red wire; (-): Black wire.
• Please Comfirm the Motor Size, Voltage, Current and other parameters before purchase.

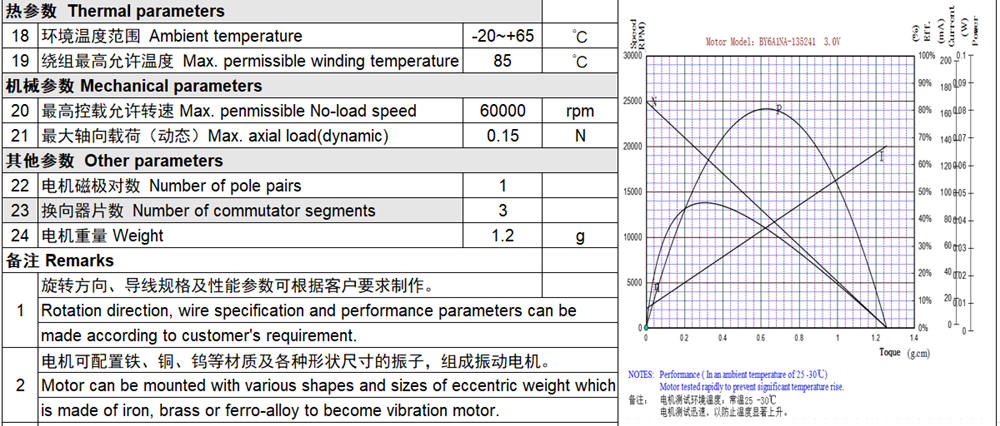

DC Brushes Micro Motor 6C614

• Rotation direction, wire specification and performance performance parameters can be made according to customer's requirement.
• Motor can be mounted with various shapes and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.

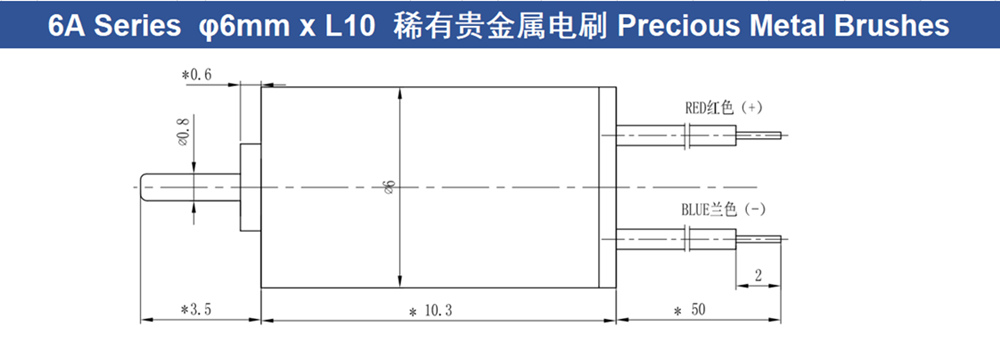

• Dimension with " * " in the drawing can be adjusted according to customer's requirement.

Feature

• Low rotor inertia;
• This motor uses pure copper wire coil, low heat and low loss;
• Small size, light weight, simple installation and easy maintenance;
• Our products use superb process technology, have good quality and low price, cost-effective;
• High motion efficiency, that allows you to build a more compact, precise and energy-efficient solution.

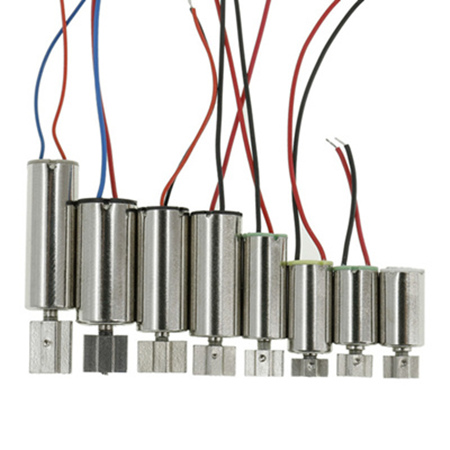

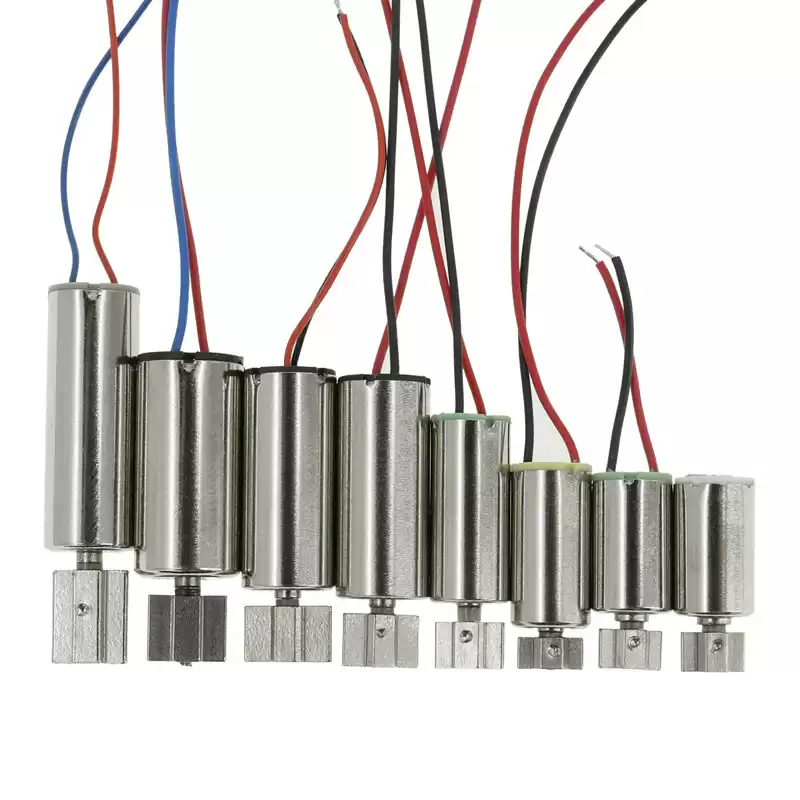

More Models

These micro motors come in a variety of different sizes and can be adapted to various applications to meet customer needs.

Application

DC brushless coreless motor is suitable for beauty products, remote control toys, electric toothbrushes, USB fans, intelligent electronic products, etc.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our motors are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
