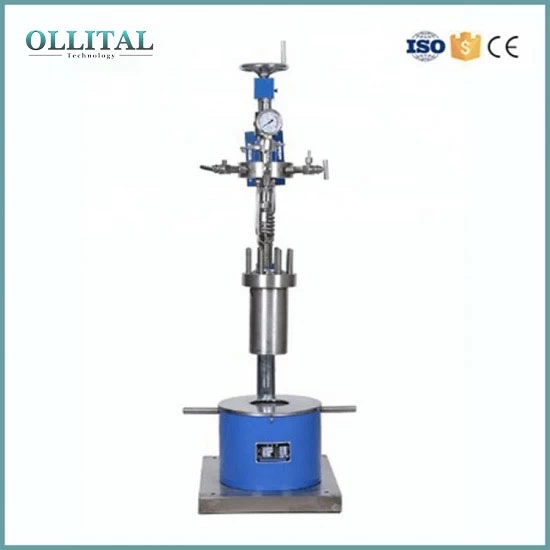

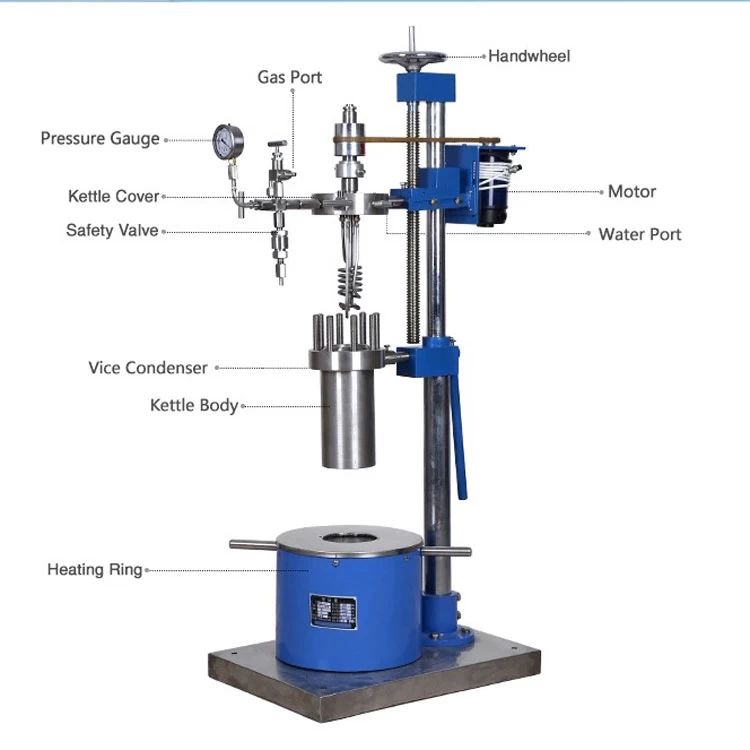

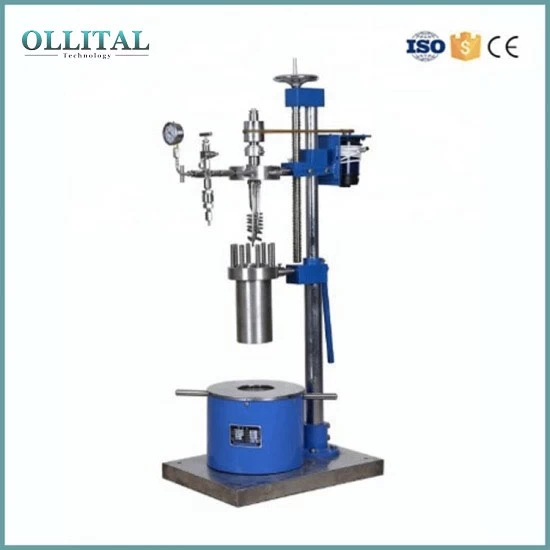

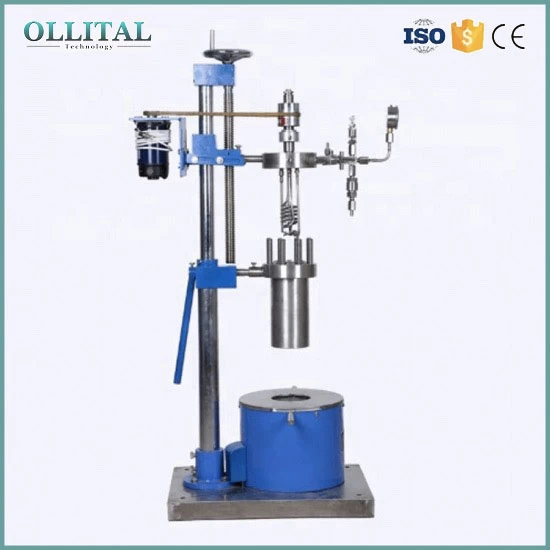

Small high pressure reactor autoclave is suitable for flammable,explosive,high toxic,precious media and chemical media of strong penetration to stir. It is the best no-leak response for petroleum,chemical,organic synthesis,polymer,food and other process to vulcanize, fluorate,oxidize.
|
Model
|
OLT-PF-1
|
OLT-PF-2
|
OLT-PF-3
|
OLT-PF-5
|
OLT-PF-10
|
OLT-PF-20
|
|
Capacity (L)
|
1
|
2
|
3
|
5
|
10
|
20
|
|
Setting Pressure (Mpa)
|
22
|
|
|
|
|
|
|
Setting Temperature (℃)
|
350
|
|
|
|
|
|
|
Accuracy of temperature Control (℃)
|
±1
|
|
|
|
|
|
|
Heating Method
|
General electric heating,
|
|
the others are far-infrared, thermal oil, steam,
|
|
circulating water, etc
|
|
|
|
Stirring Torque (N.cm)
|
120
|
|
Heating Power (kw)
|
1.5
|
2
|
2.5
|
4
|
7
|
10
|
|

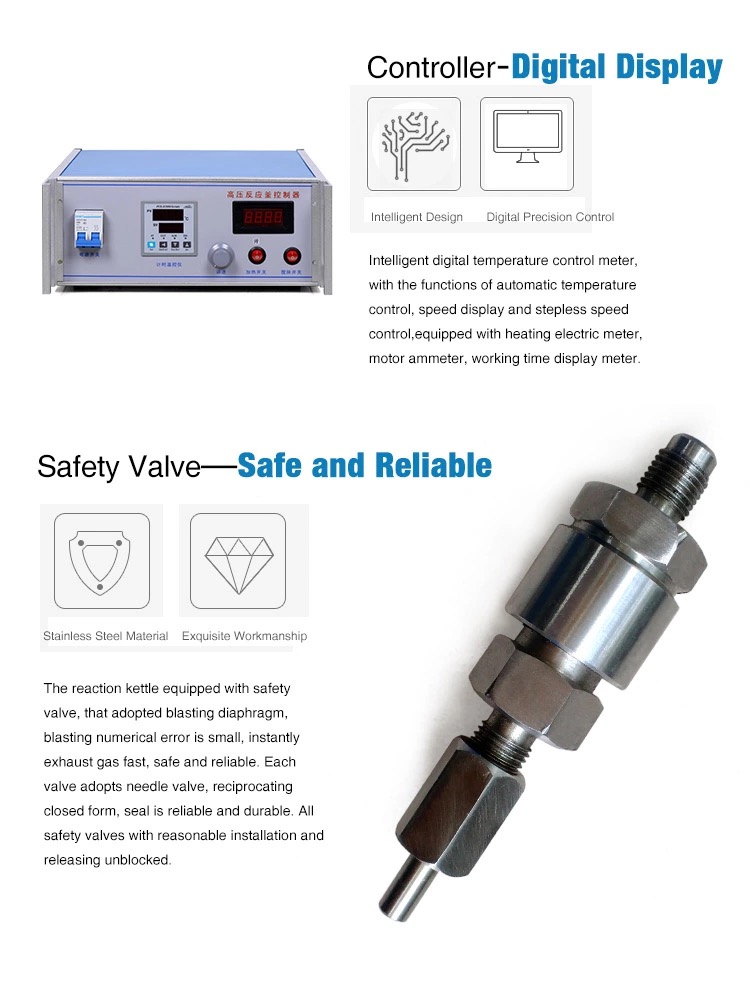

Temperature controller
|
Real~time display and adjust the speed,
|
|
temperature, time, heating voltage,
|
|
with standard PID automatic temperature adjustment meter.
|
|
|
|

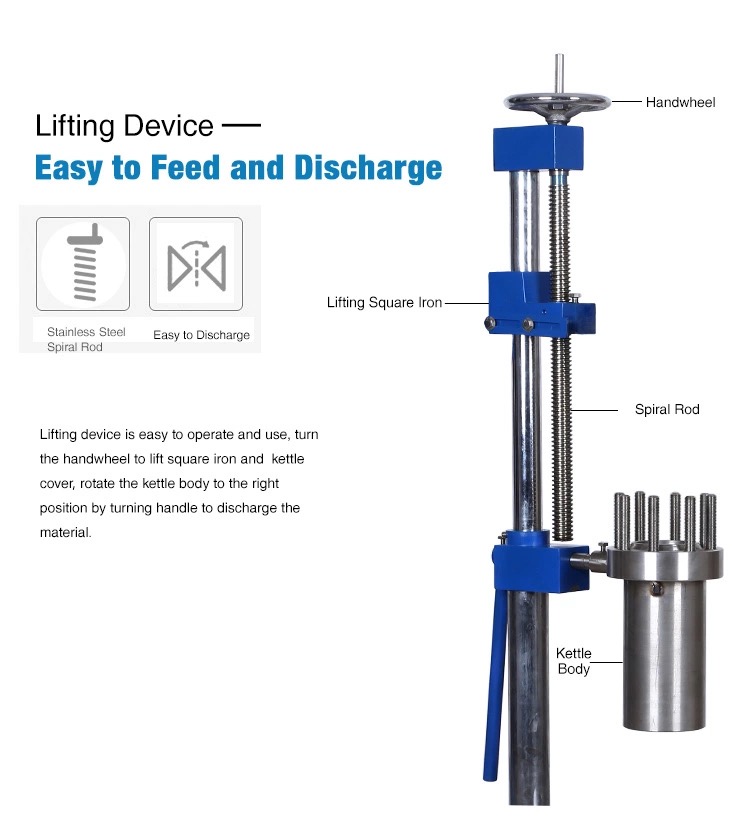

Lifting mode
|
Manual lift or electric lift
|
|
Material
|
304/316 Stainless steel, Titanium,
|

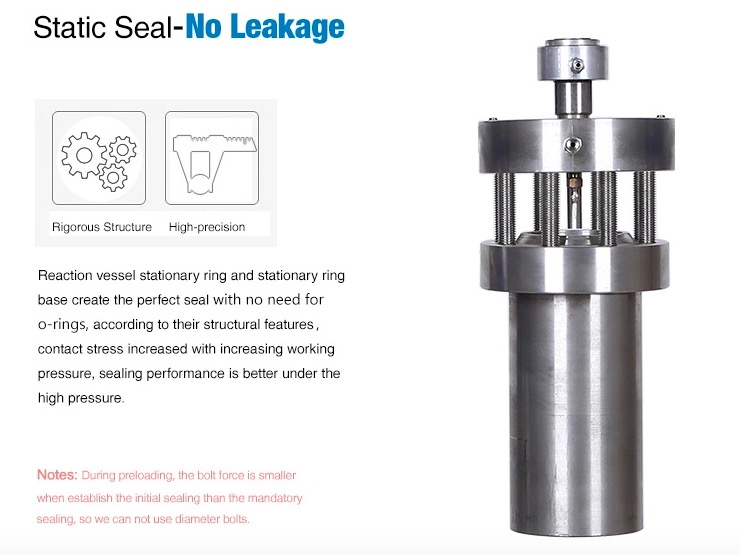

(1)Static sealing structure
(2)The mixer bath electrical machinery transmission uses the magnetic force couple connection.
(3)No-touch passing moment, solving the stirred leak problem. (4)Medium and the stirring member is in sealing state to work.
No leakage; sulfide, fluoride, oxidation and static sealing, polymer composite material.
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
