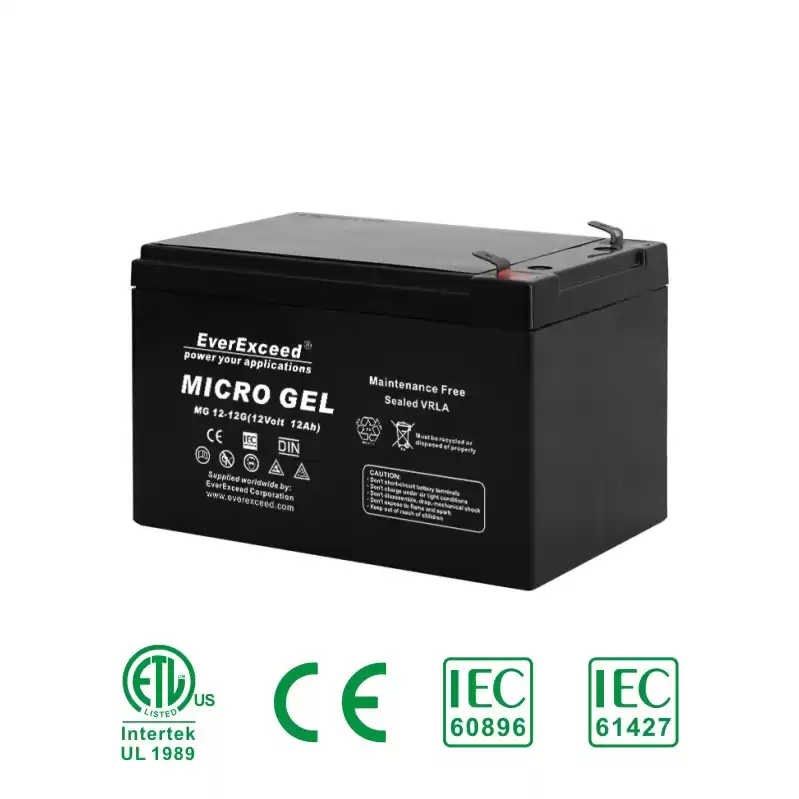

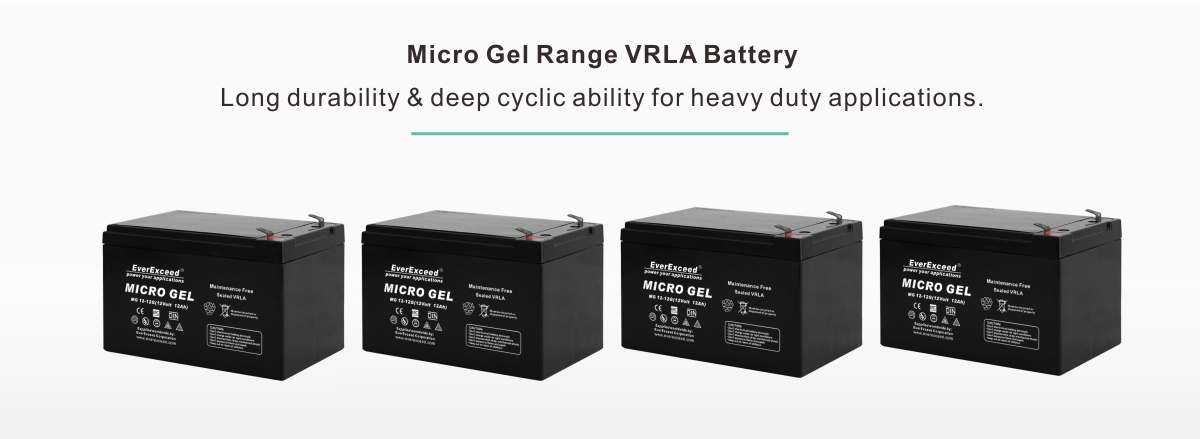

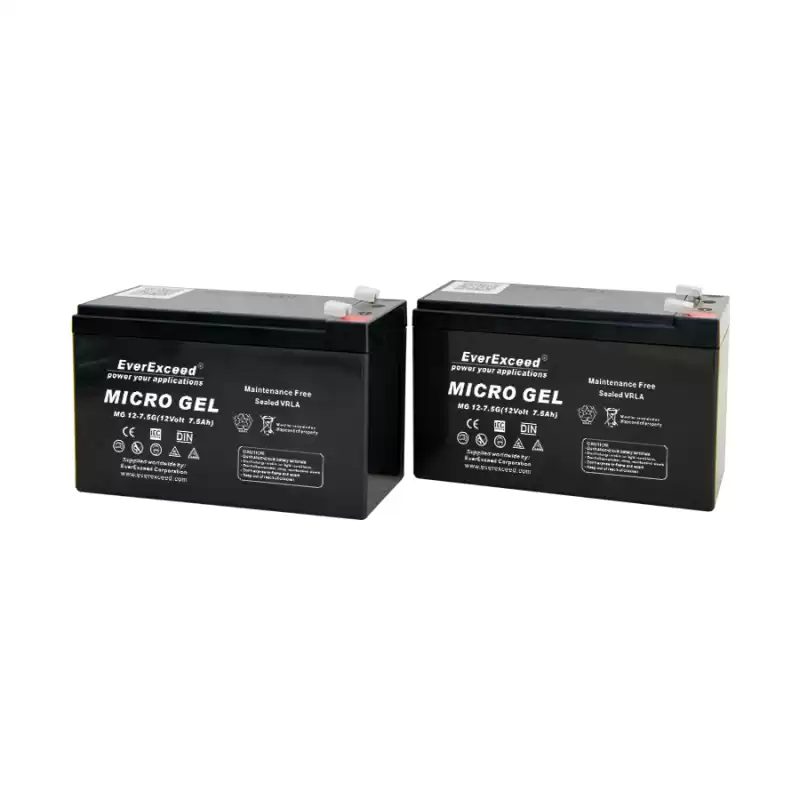

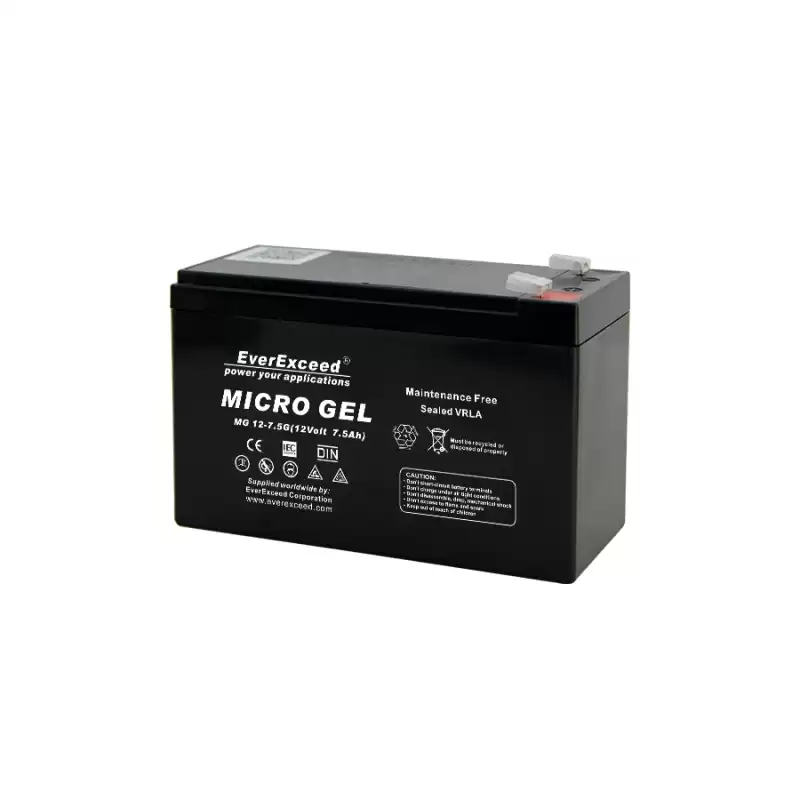

Micro Gel Range VRLA Battery

EverExceed Micro Gel Range VRLA Battery has compact design, these batteries save installation space, while providing full and reliable power. The use of special sealing epoxies, groove case and cover construction, and long-sealing paths for posts and connectors, assures that the VRLA battery will offer exceptional leak resistance, and allows them to be used in any position.


  • Usage•Solar; •Uninterrupted power supplies; •Security & fire alarm systems; •Power tools; •Wind Generation; •Telecom; •Medical equipment; •Consumer electronics
  • CertificatesUL1989; IEC61427;IEC60896; CE
  • OEM/ODM ServiceYes, customized
  • Rated capacity(Ah)4ah-26ah
  • ModelMG-G series
  • Rated voltage(V)6V/12V
Facebook Twitter Pinterest LinkedIn 分享



Technical features:











Unique charging performance
Best Gellyte technology
High safety
Proprietary Fixed Orifice Plate Pasting technology applying active materials on both sides of the grid for consistent cell-to-cell performance, higher capacity and uniform grid protection.
Sulfuric acid thixotropic gel, gel powder from Europe leading supplier to ensure the unique performance of gel battery.Electrolyte in solid gel form will not stratify no equalization charge required
Flame-arresting one-way pressure-relief vent for safe and long life.
More than 250 quality control checks.Reinforced ABS(UL94HB) container and cover compliant with UL94 V-0










High capacity
Unique performance against high temperature
High durability
Exceptional energy storage capacity combined with long life
Operate consistently even at high temperatures from -40°C  to +70°C
 Increased durability and deep cycle ability for heavy duty applications










High reliability
Assured quality
Flexible installation
Provides outstanding performance in withstanding overcharge, over discharge and resisting vibration and shock
These industry leading rechargeable batteries are approved with UL1989, CE certificates & IEC60896 & IEC61427 test reports
The battery is spill-proof and leak-proof. Can be used in any orientation. Upright, side or end mounting recommended










VRLA recombinant technology
Excellent anti corrosion ability
Long service life
High-Compression Absorbed Glass Mat technology (AGM) for greater than 99% recombination efficienc
Thick positive plate plus optimized plate alloy to anti-corrosion
5~8 years design life @ 20°C(68°F) ambient temperature, 80% remaining capacity

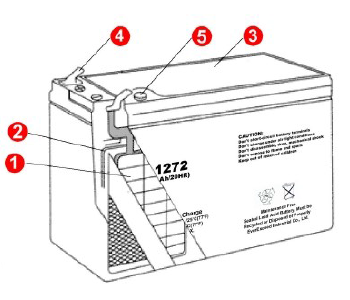

Construction:



①Plates: calcium  /  tin lead alloy, optimized for high corrosion resistance;

②Separator: Highly porous glass micro-fiber separator,
optimized for low internal resistance, for electrical separation of the positive and negative plates;

③Standard Housing: Reinforced ABS (UL 94HB) container and cover;
Optional Housing: Flame-retardant reinforced ABS container and cover compliant with U.L.94 V-0 with an Oxygen limiting
Index of greater than 28%;

④ Terminals: Faston Tab No.187, Faston Tab No.250,silver plated Copper female insert , Lead or silver plated,
Copper Flag terminal;

⑤ Valves: Release gas in case of excess pressure and protects the cell against atmosphere.




Applications:

•Solar; •Uninterrupted power supplies; •Security & fire alarm systems; •Power tools; •Wind Generation; •Telecom; •Medical equipment; •Consumer electronics

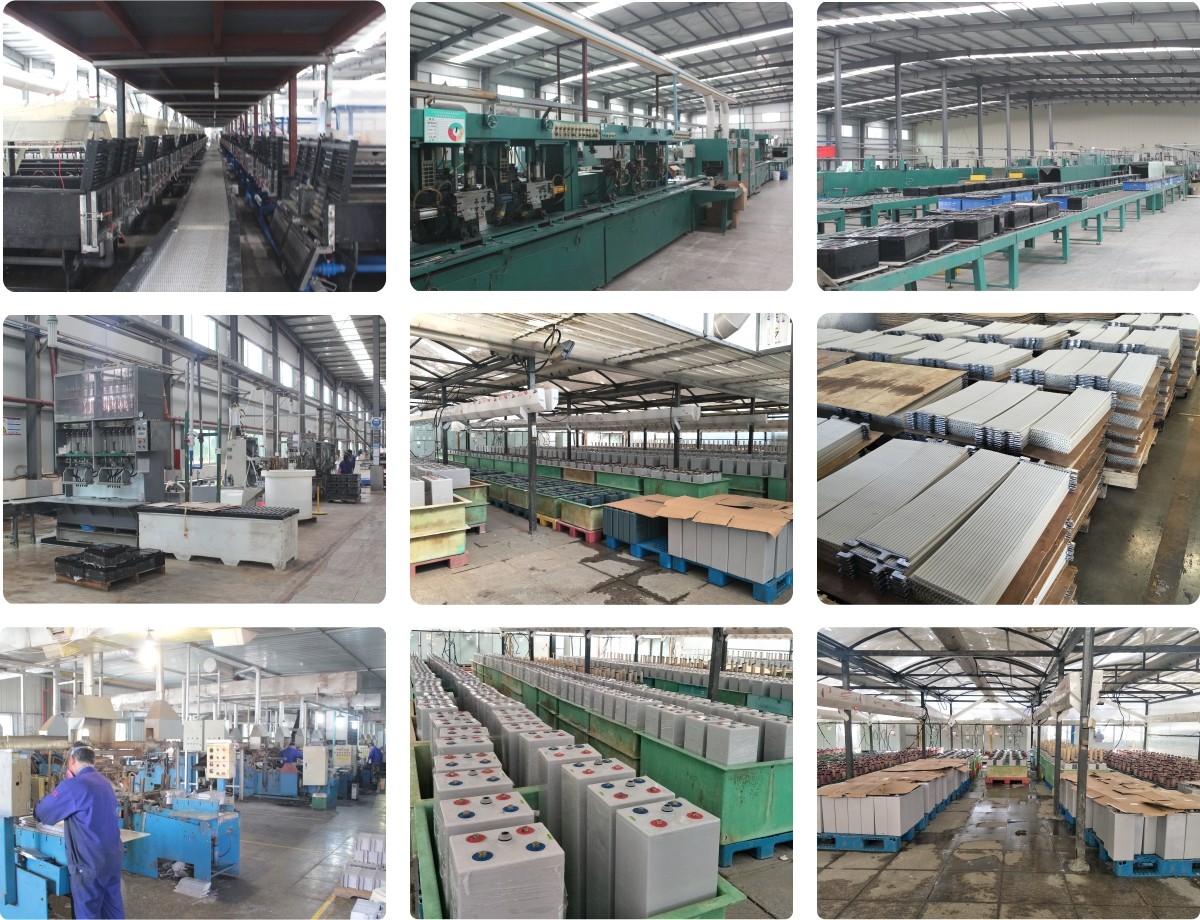

Factory:


Next Product
Prev Product
Product Tags 6V Gel Battery          VRLA Gel Battery          lead acid battery          gel battery 12v          12V 9Ah          Sealed Gel Battery          storage batteries          VRLA Battery
