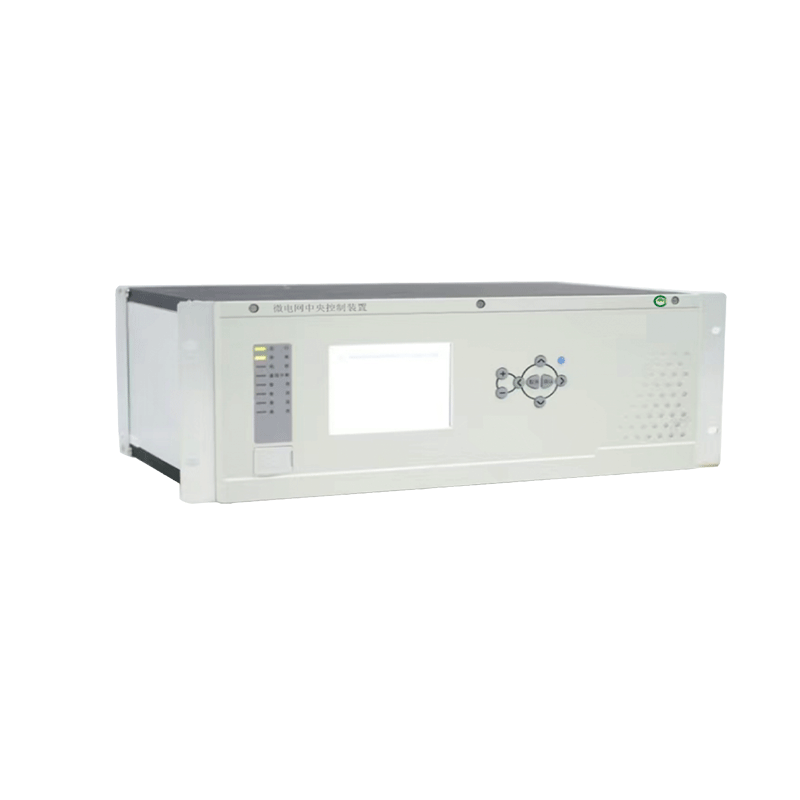

Microgrid Central Control Device

The EPCP-MG-3000i Microgrid Controller is designed for advanced protection and control, ensuring stable operation of microgrids across various voltage levels. It maintains system stability during disturbances, making it ideal for industrial facilities and community microgrid setups. With intelligent monitoring and fault management, it enhances energy reliability and resilience in distributed energy systems.

Facebook Twitter Pinterest LinkedIn 分享

Description

Main Functions

Frequency Emergency Control, Voltage Emergency Control, Grid Protection, Grid Connection, Measurement and Control, Grid Connection and Disconnection Control, Integrated Measurement and Control, Fault Recording

EPCP-MG-3000i - Microgrid Central Control Device Features

Integrated Protection and Measurement
Combines protection and measurement functionalities for reliable operation.
High-Reliability Control Platform
Offers robust, self-controllable protective measures.
Flexible High-Speed Bus
Supports multi-level communication with high-speed bus architecture.
Self-Diagnostic Functions
Ensures the integrity of output circuits with online self-checks.
Fault Analysis Tools
Includes software for troubleshooting and analysis, enhancing operational efficiency.

Specifications

*Communication, Time Synchronization, Installation*
Fault Recording	30 Times
Event Logging	500 Times
Recording Method	COMTRADE
Communication Interface	RJ45
Communication Protocol	DL/T 860 (IEC 61850)
Time Synchronization Method	IRIG-B, SNTP
Installation Dimensions	4U Chassis, 465.0W x 177.0H x 310.0L
Measurement and Control Function Accuracy
AC Current and Voltage Sampling Amplitude	< ±0.2%
Active Power	< ±0.5%
Reactive Power	< ±0.5%
Power Factor	< ±0.5%
Frequency	≤ ±0.003 Hz
Protection Function Measurement Accura
AC Current Sampling Amplitude	< ±2%
AC Current Sampling Phase Angle	< ±1°
AC Voltage Sampling Amplitude	< ±2%
AC Voltage Sampling Phase Angle	< ±1°
Key Technical Indicators
Protection Group Action Time	≤ 60 ms
Low Frequency and Low Voltage Group Action Time	≤ 60 ms
Grid Connection and Disconnection Switching Response Time	≤ 200 ms

Application Scenarios

Industrial Facilities

Community Microgrid Setups

Voltage Level Stability Management

Microgrid Protection and Control During Disturbances
