1、Up to 80% Energy-saving, mercury-free and 100% recyclable, energy saving and environmental protection
2、Constant current internal driver, safety guaranteed
3、High PF value over 0.9 for decrease of electricity loss
4、High quality PCB for good heat dissipation
5、High light efficacy, cost effective
6、No flicker,no delay, Instant on/off
7、Direct replacement for T8 fluorescent tubes is used to quick and easy installation to minimize retrofit and maintenance costs
8、Widely used in factories, car parks, supermarkets, offices and other public places is best retrofit for Philips, Osram, Panasonic T8 fluorescent lamp
Model
|
Size (mm)
|
Watt
|
Input Voltage
|
SMD LED
|
Material
|
PF
|
CRI
|
Cap
|
Beam Angle
|
Light efficiency
|
T8-60CM-10W-S
|
φ26*588
|
10w
|
AC85-265V
|
SMD2835
|
Half aviation Aluminum+ PC cover
|
>0.92
|
>80
|
G13 & G5,rotatable cap optional
|
140°
|
100LM/W or more higher
|
T8-120CM-18W-S
|
φ26*1198
|
18w
|
AC85-265V
|
SMD2835
|
Half aviation Aluminum+ PC cover
|
>0.92
|
>80
|
G13 & G5,rotatable cap optional
|
140°
|
100LM/W or more higher
|
T8-150CM-25W-S
|
φ26*1498
|
23w
|
AC85-265V
|
SMD2835
|
Half aviation Aluminum+ PC cover
|
>0.92
|
>80
|
G13 & G5,rotatable cap optional
|
140°
|
100LM/W or more higher
|
Warning: Switch off power supply BEFORE COMMENCING WORK!
Step1. Remove the fluorescent lamp.

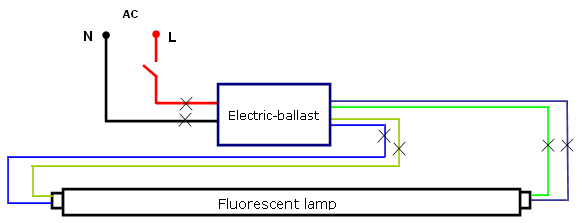

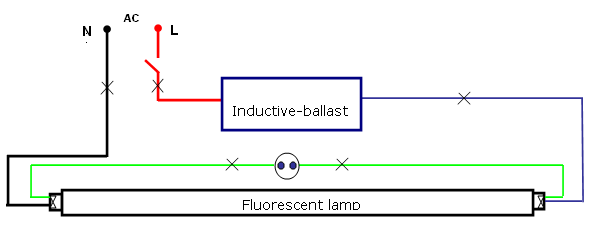

Step2. Cut off all wires which connected to inductive ballast or electrical ballast.

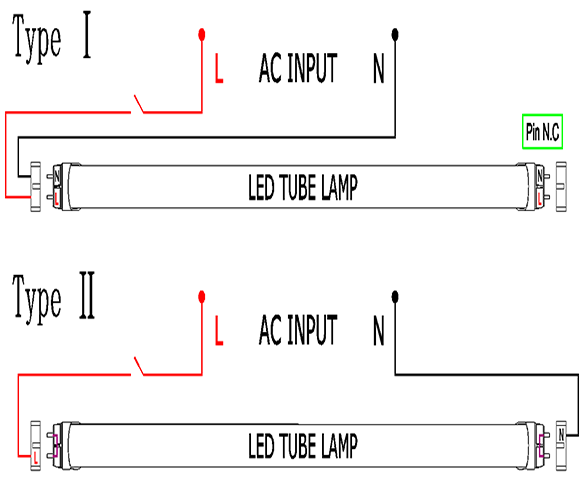

Step3. Install LED tube into lighting fixture with below one(Type I or Type II) wiring method refer to the label on the tube.
Step 4.Switch on power.

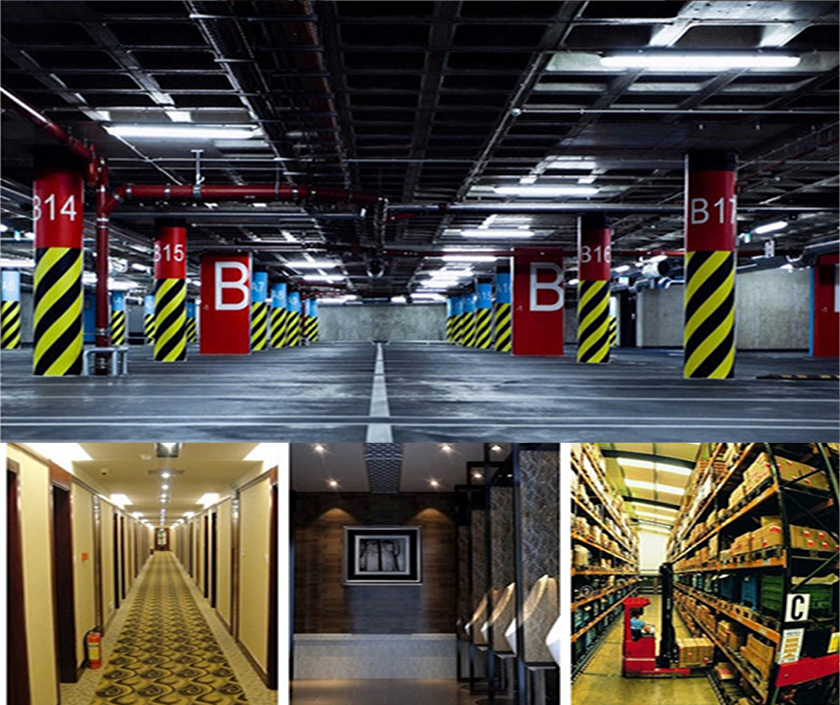

Perfect used for Parking lot, Corridor, Factory, Office, Shopping mall and Hotel lighting etc
