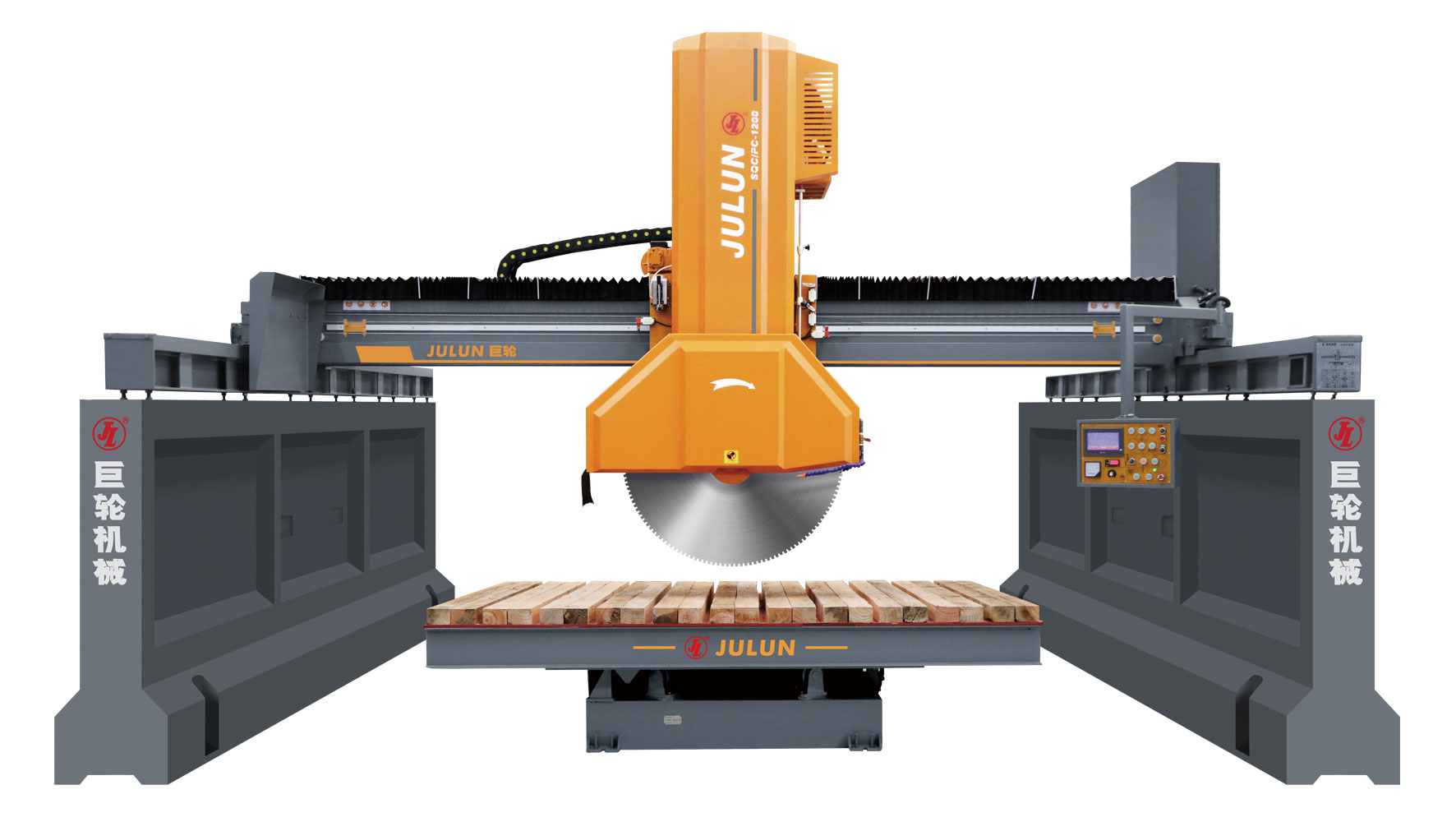

Middle Block Cutting Machine
1.stone cutting machine price uses PLC system and Human-machine interface, combined with Ultra-high precision rotary encoder to locate, and infrared device.
2.it uses inverter to control left-right feeding, adjust the speed according to the stone material.
3.It uses hydraulic lifting system, and main spare parts adopt imported good-quality materials.
Thus the whole machine is featured as high cutting efficiency, high stability, easy-operating to suit specially shaped stone products, tombstone and curb stone.
Specification
|
Appellation
|
unit
|
SQC/PC-1200
|
|
Max.blade diameter
|
mm
|
Φ1200
|
|
Max.lifting stroke
|
mm
|
760
|
|

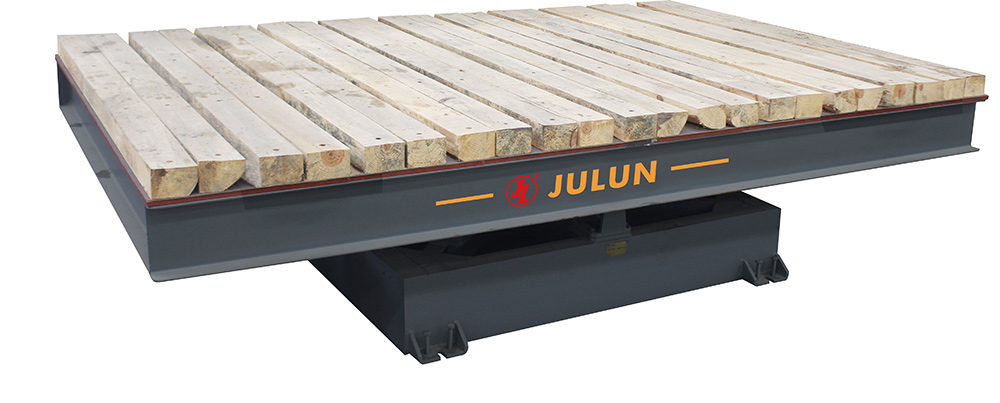

Worktable size
|
mm
|
3000×2000
|
|
Worktable rotation range(optional)
|
°
|
0°,90°/ 0°-360° （Set up by each 45 degree)
|
|
Water consumption
|
m³/h
|
4
|
|
Power of main motor
|
kw
|
22
|
|
Total power
|
kw
|
27
|
|
Dimension(L×W×H)
|
mm
|
6400×4800×4400
|
|
Weight
|
kg
|
6800（Including cement base 13000kg)
|

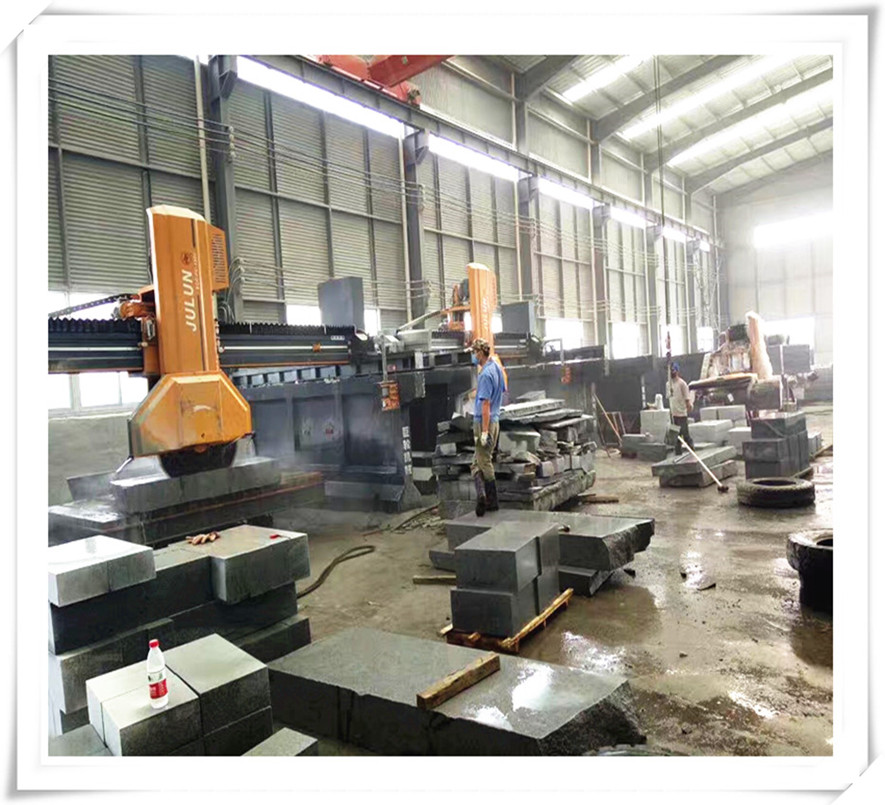

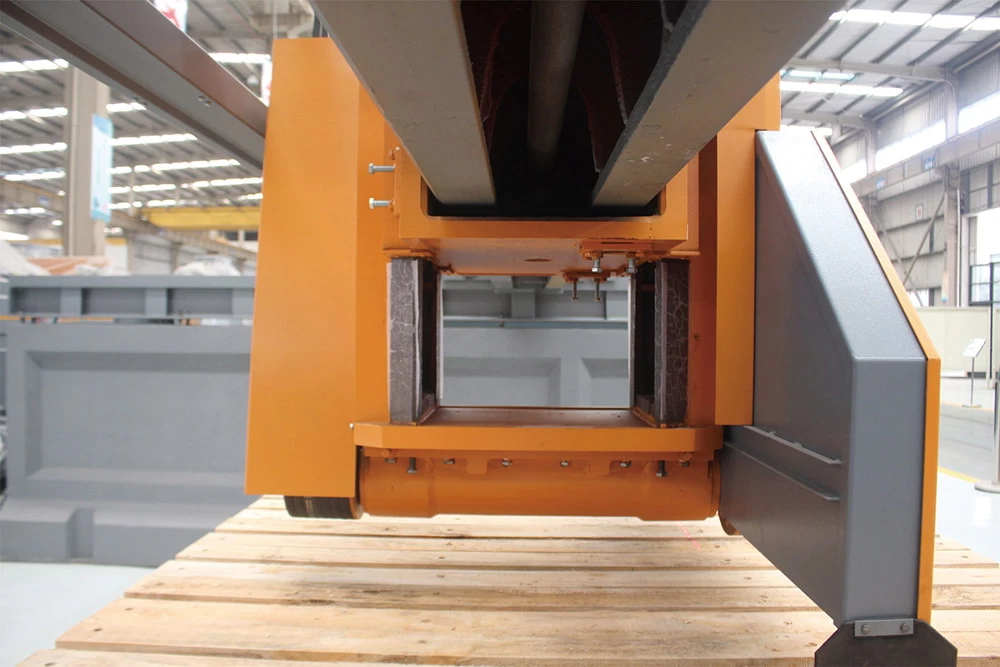

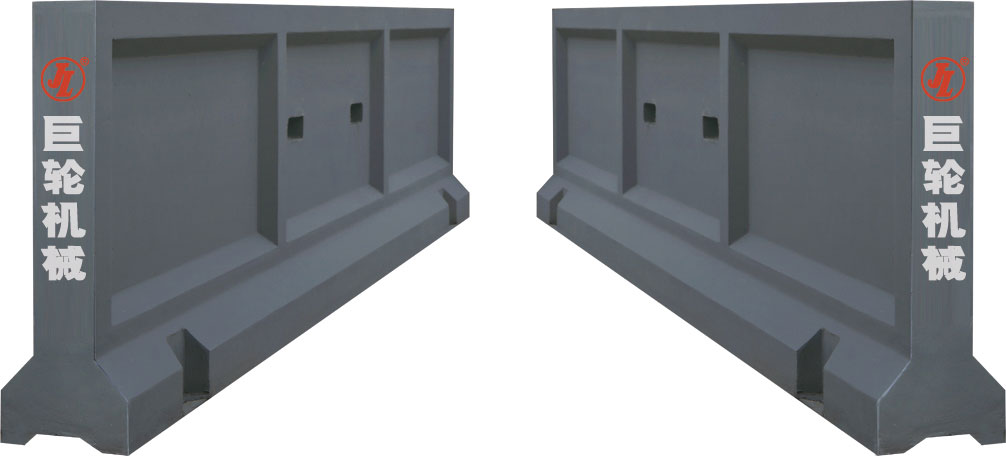

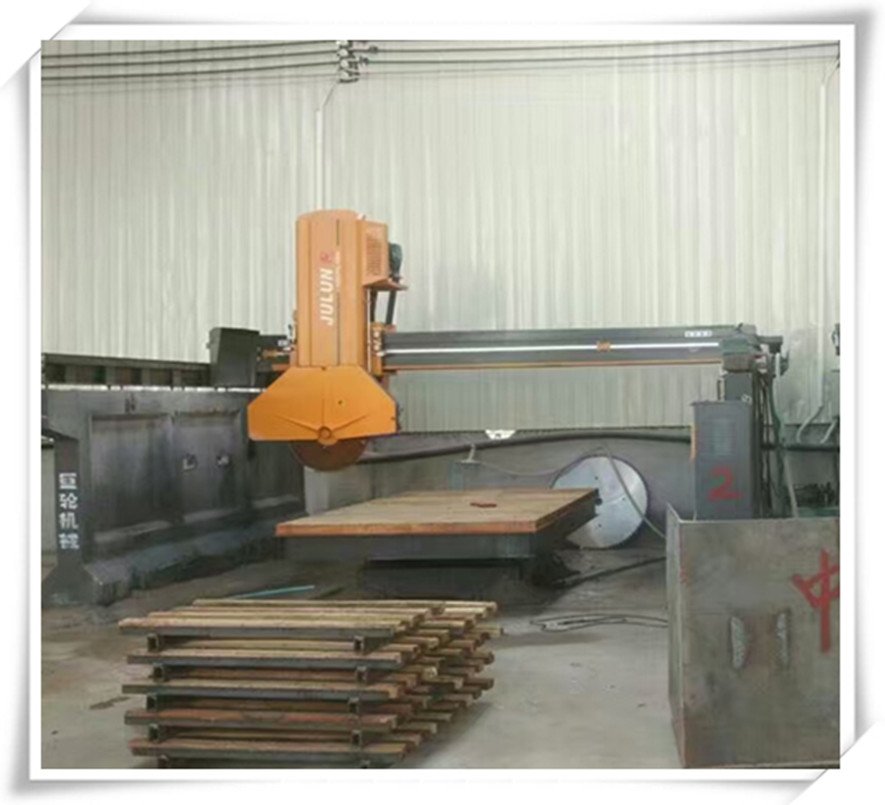

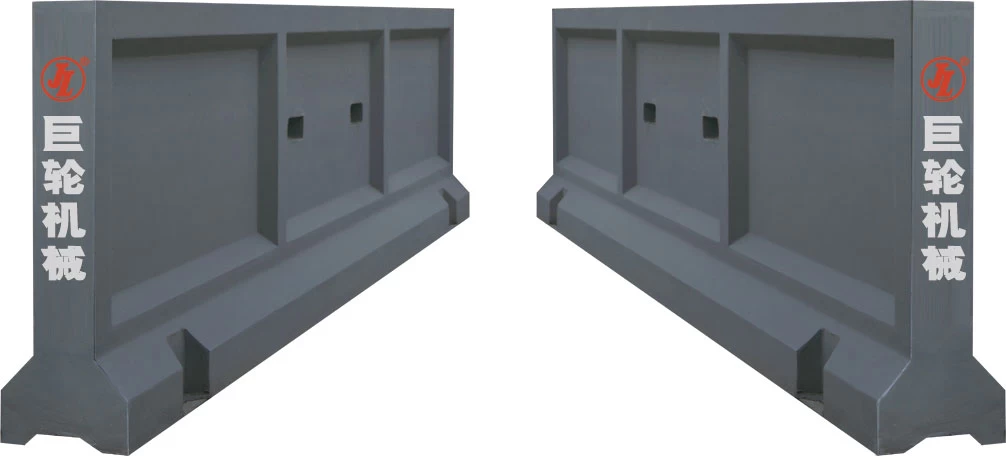

Photos
