MX-MP6 (New middle-high phosphorus) environment-friendly mat finish high corrosion-resistant EN plating oncentrate
Product Introduction
MX - MP6 series product is our company cross-century
6th generation product, not only by the introduction of foreign advanced
formula, but also by a large number of experiments practice. The plating
solution made up by our product has good stability, excellent compactness, low porosity, corrosion resistance, wear resistance and contains no lead,
mercury and hexavalent chromium plating at all . It is very

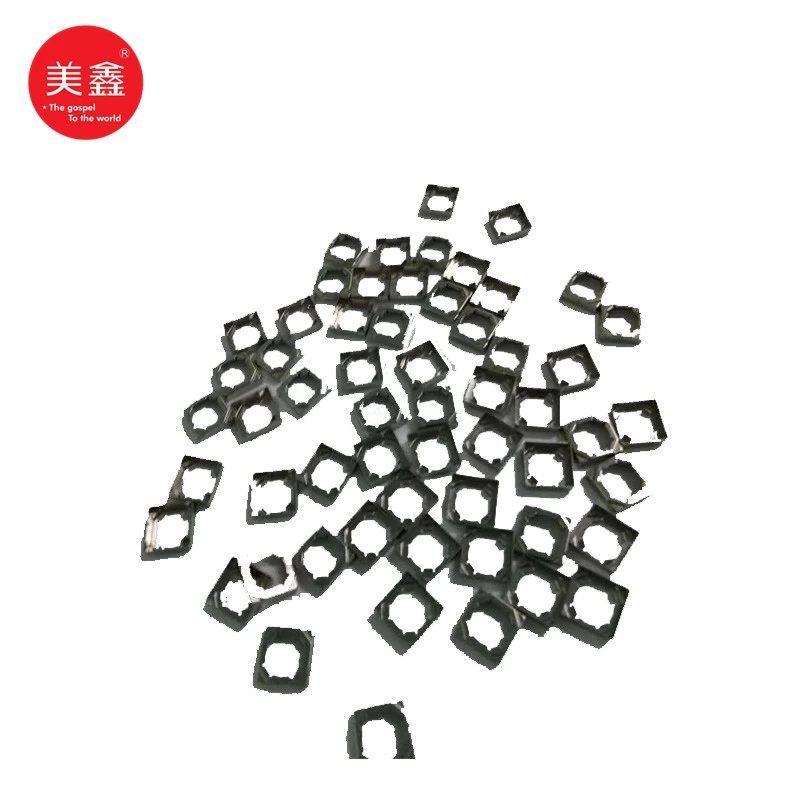

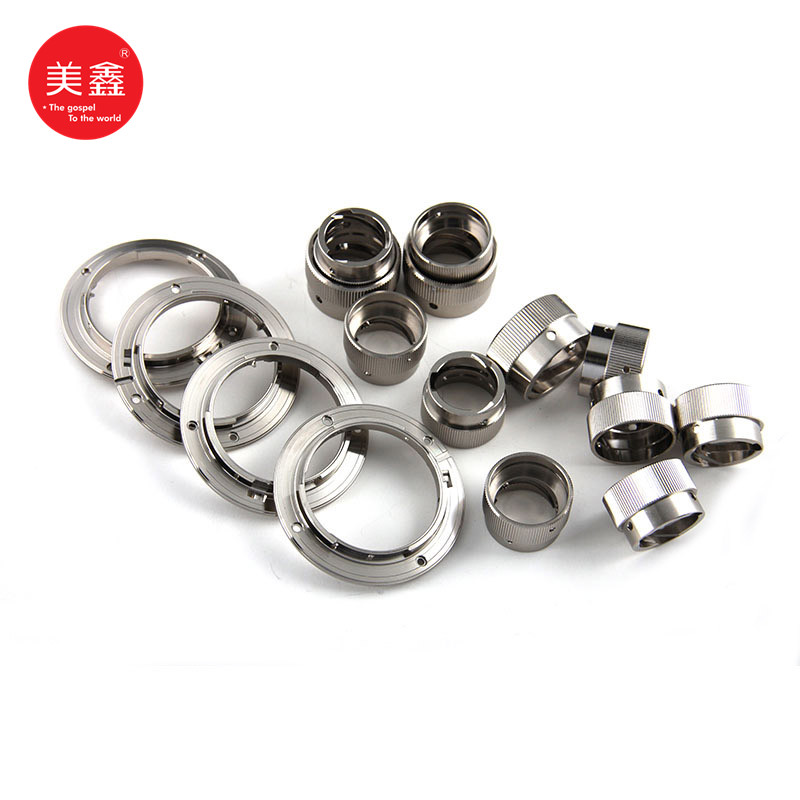

suitable for the surface treatment
of precision work pieces.
Customers only need add this additive into other raw
material, nickel sulfate, Sodium hypophosphite to obtain Concentration A,
B and C,
which costs 20% less than the price of similar products in the market.
Product
Features
1. Without DC, plating process can be completed only by chemical reactions, low energy consumption;
2. Less investment in equipment, less
occupying space, less member required;
3. Does not contain cyanide, hexavalent
chromium, lead, mercury, cadmium and other toxic materials, environmental friendly, up to he European Union ROHS request；
4. The plating solution has good
stability, long life cycle, usually can reach10-13 MTO;
5. Great compactness, low
porosity, strong
corrosion resistance, much superior than similar products on the market;
6. Good adhesion, and it in middle-low
carbon steel can reach 350-450MPa. The result of bending test could be non-scaling;
7. Higher hardness, plated hardness can up to
550-600HV; after keeping 400 ℃ for 1 hour, hardness can up to 1000HV;
8. Without the impact of electricity, the
plating has good uniformity, proper size to control and no longer needs
reprocess after the plating;
9. Plating rate is15-20um/h, plating has a mat finish;
10. The coating is micro magnetic.
Proportion of basic solution

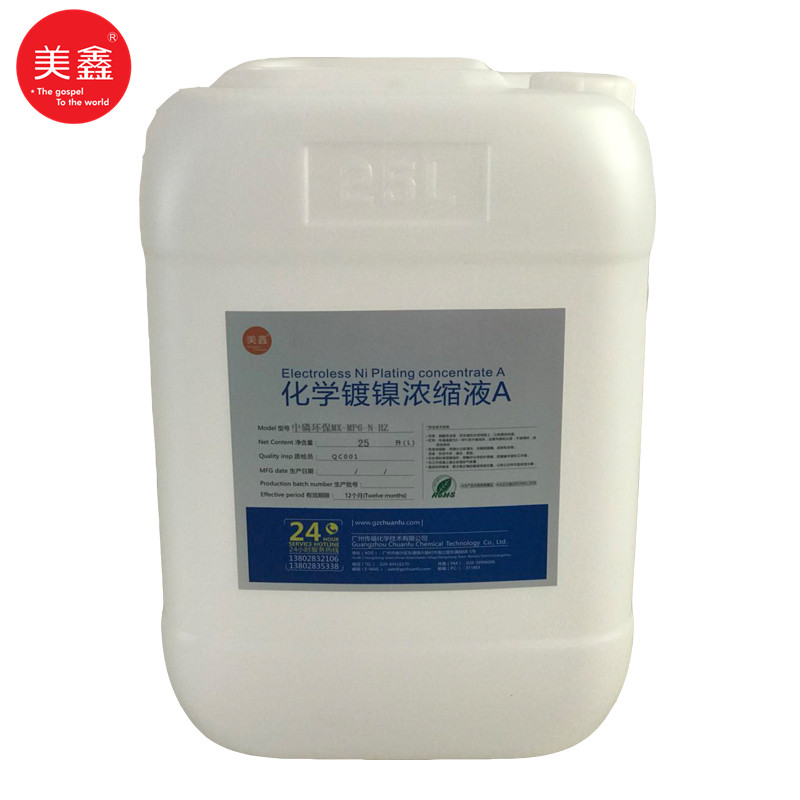

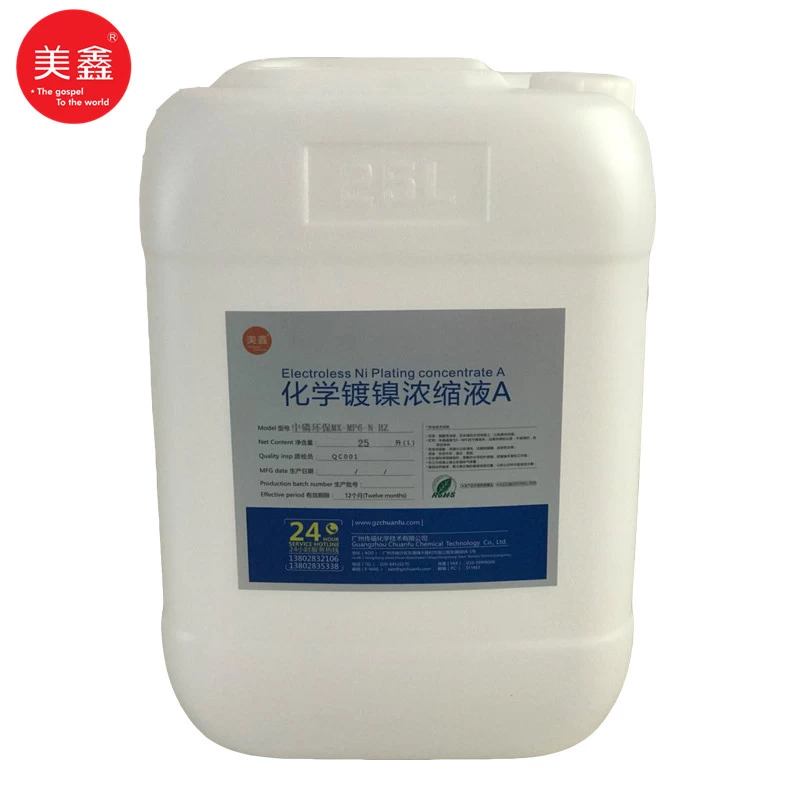

Concentrate SolutionA 50mL/L,Concentrate
SolutionB 120mL/L
Proportion of supplement
Concentrate
Solution A:Concentrate SolutionC=1:1（volume）
