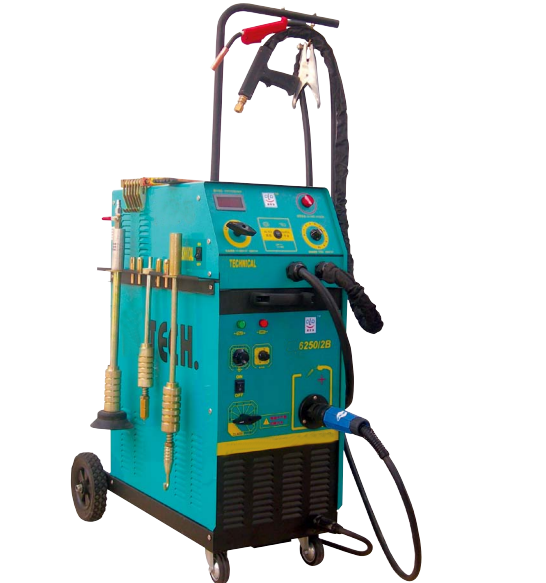

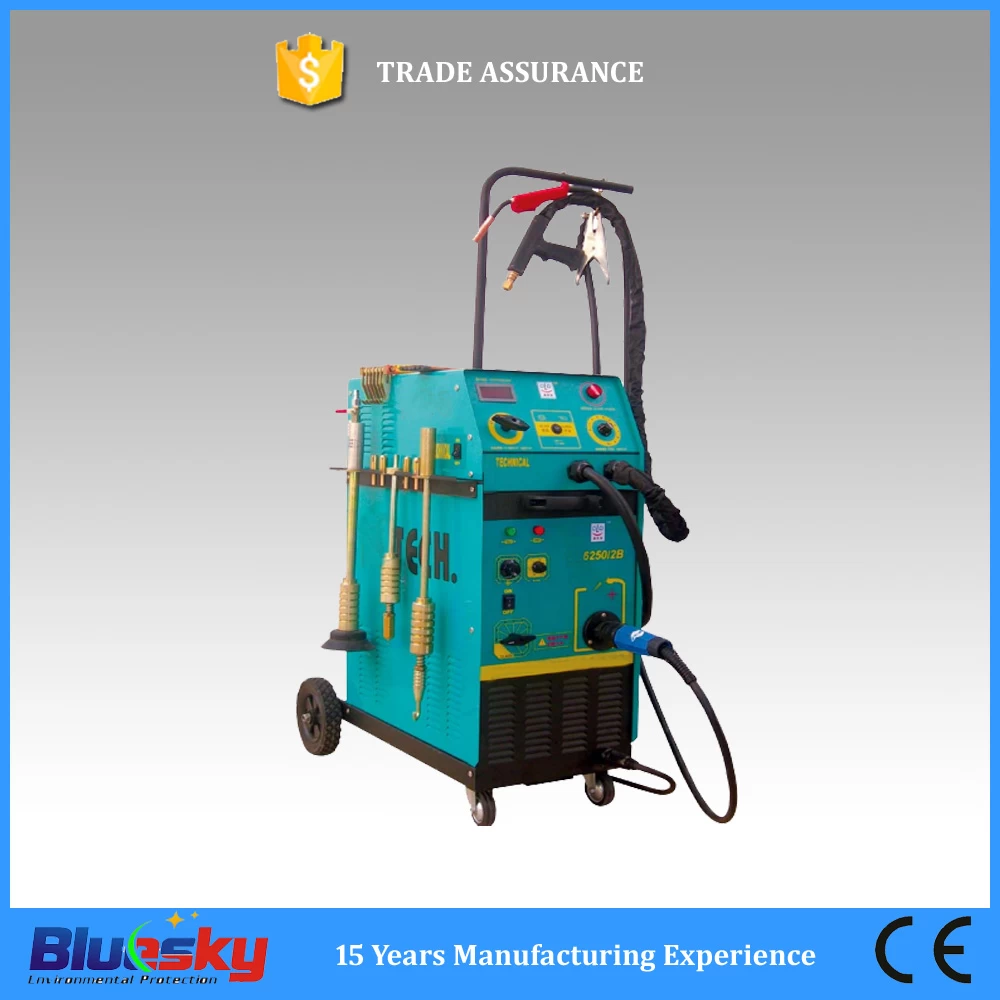

MIG/MAG welder and spot welder 2 in 1 SW-6000
Main technical performance and parameter of SW-6000
SW-6000 is a combination of MIG welder and spot welding machien. This machine mounted on a wheeled undercar-riage suitable for small or large shielding gas bottles. The machine is designed for use in the automotive and light sheet weld industries. The spot welder allows welding monopoint 1 face with a gun for small repairs, hammered, patchwork and nails poses, pins, discs, rivets. You just need to set the power and time to weld different depth of car body iron plate.
| Model |
MIG welder part |
| Power supply |
1ph 230V or 3ph 400V |
| Input power |
7.8KVA |
| Duty cycle |
35% |
| Welding current |
35-250A |
| Insulation level |
H IP21 |
| Wire dia |
0.8, 1.0mm |
| Wire tray |
200-300mm |
| Model |
Spot welding part |
| Power supply |
2ph 400V or 1ph 230V |
| Max current |
5400A |
| Output voltage |
6-13V |
| Welding depth |
0.8+1.0mm |
| Cables |
2*2m*55mm2 |
Spot Welding Machine SW-6000 Features:
Features of MIG part:
1. Automatic inspection of input voltage
2. Automatic overheating protection
3. Multi-layer bridge commutation
4. 4-wheel driving device for feeding welding wire
5. Package complete with torch, earth clamp, pressure regulator,blocking cream, nozzles, fuses, gas pipe and fasten chain
6. Welding with mild steel and stainless steel
7. Euro torch connector
8. 230V and 400V power supply can be ordered
9.Torch 3m, earth clamp 2m(cable lenth can be ordered).
Features of spot welding part:
1. Voltage monitor automatically
2. Automatic overheating protection
3. Precise time adjustment system
4. Heat, meson, vertical pulling, spot welding, flatten, waveform line, triangle shim etc welding
5. Digital display
6. Large puller and waveform welding
7. 230V/400V can be ordered
8. Pneumatic pulling tools.
