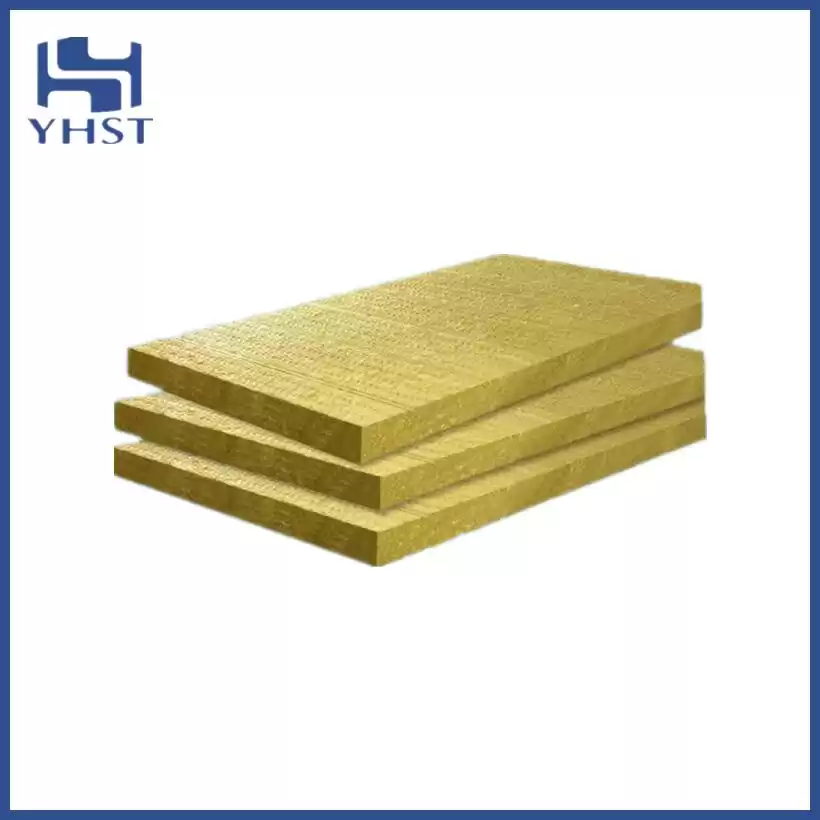

Mineral wool for thermal insulation and fire protection
Mineral wool also known as Rock wool in chinais an inorganic external thermal insulation material. Rock wool products are made of high-quality basalt, dolomite and other main raw materials after melting at a high temperature above 1450℃. Rock wool products have become internationally recognized as the main energy-saving materials because of their excellent fire protection and thermal insulation characteristics.
Product Specification
|
Product Name
|
Rock wool/Mineral wool
|
|
Effective width [mm]
|
600 or Customized
|
|
length [mm]
|
1200 or Customized
|
|
Bulk density
|
100--200Kg/m3
|
|
Thickness [mm]
|
Mostly 50 40---300(Customized)
|
|
Fire rating
|
A
|
|
Average fiber diameter μm
|
4.3
|
|
Thermal conductivity w / (m · K)
(average temperature 25 ℃)
|
0.039
|
|
Hydrophobicity %
|
99.9
|
|
Tensile strength kPa
|
15.2
|
|
Compressive strength kPa(10% deformation)
|
77.5
|
|
Acidity coefficient
|
2.0
|
|
MOQ
|
100MT or 10000m2 per size
|
|
Delivery time
|
10--20days
|
Features
1.Fire prevention
Rock wool raw materials using natural volcanic rock, is non-combustible building materials fire retardant materials.
2. Thermal insulation
Rock wool fiber is long and thin, flexible and low content of slag balls. Thus low thermal conductivity, with excellent thermal insulation effect.
3. Sound absorption and noise reduction
Rock wool is an ideal sound insulation material, a large number of long and thin fibers form a porous connection structure, which determines that rock wool is an excellent sound absorption and noise reduction material.
4.Hydrophobicity
Hydrophobic rock wool product hydrophobic rate can reach 99.9%; Very low water absorption, no capillary penetration.
5.Moisture resistance
Rock wool in the relative humidity of the environment, the volume moisture absorption rate is less than 0.2%; According to ASTMC1104 or astm c 1104m test method, the mass moisture absorption rate is less than 0.3%.
6. No corrosion
Rock wool chemical properties, PH value of 7-8, neutral or weak alkaline, carbon steel, stainless steel, aluminum and other metal materials are not corrosion.
7. Safety and environmental protection
Rock wool after testing does not contain asbestos, CFC, HFC, HCFC and other harmful substances to the environment. Will not be corroded or produce mildew and bacteria.
Application
Factory soilless cultivation of nuclear power station, power plant, chemical plant, large kiln insulation, building external wall insulation, roof and curtain wall insulation, isolation belt, cabin, onboard health unit, crew rest room, power warehouse, vegetables, fruits and flowers.
Rock wool is used as external insulation system of exterior wall:
1. Before construction, the special construction scheme for energy conservation and insulation of the project shall be prepared according to the requirements of the design, this specification and relevant technical standards, and the construction personnel shall be provided with technical disclosure and professional technical training.
2. The construction of rock wool board external insulation system for energy-saving and thermal insulation project shall be carried out in accordance with the reviewed and qualified construction drawing design documents and the approved special construction scheme for energy-saving and thermal insulation of the project.
3. The manufacturer of rock wool board external insulation system shall have professional personnel to provide on-site guidance during construction, and cooperate with the construction unit and on-site supervisor to do a good job in construction quality control.
4. Materials entering the site must pass the acceptance according to the specification, quantity and quality requirements, and shall be kept by a specially assigned person. It is strictly prohibited to stack in the open air. The rock wool board of curtain wall shall be stacked overhead against moisture.

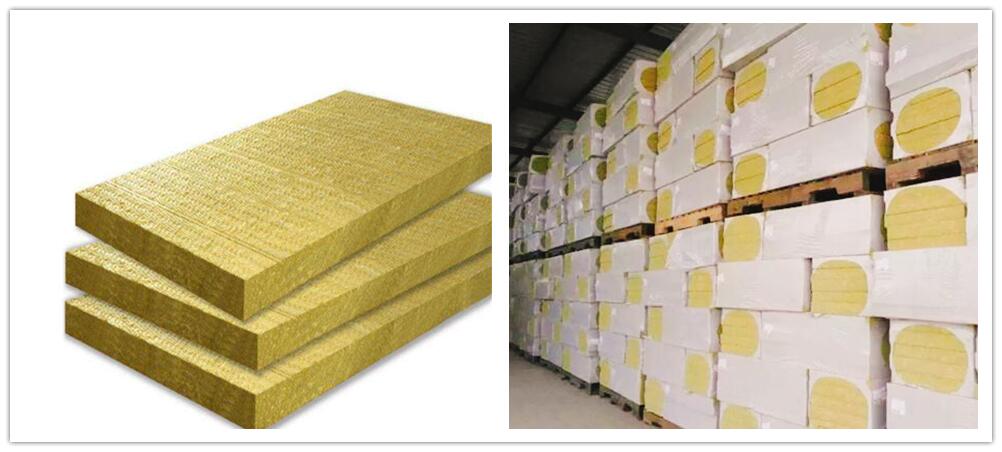

Product display
Packing & Delivery
Packing:
After the factory standard packaging,then loaded in containers.
If you have special packing requirements,please feel free to discuss with us,thank you.
Delivery:
Delivery time for small order with stock material: 7-10 days;
Delivery time for special requirements and thickness: 15-20 days;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customers or accept appointed forwarder from customers.
