Mini electromagnet, stable performance, safe and reliable. And electromagnet, small and exquisite, easy to operate, safe and reliable. The miniature electromagnet can be operated at any time, which is very convenient.
|
Specifications
|
|
Brand
|
Landa
|
Product Name
|
H1010 circular electromagnet
|
|
Model
|
H1010
|
Voltage
|
DC 3v 5v 6v 12v 24v
|
|
Power
|
1w
|
Force
|
0-1.5N
|
|
Waterproof Class
|
IP65
|
Duty Cycle
|
50-100%
|
|
Cable Length
|
200mm
|
Material
|
Metal, Electronic Parts
|
|
Action Form
|
Holding type
|
Weight(N.W.)
|
0.004kg
|
|
Install Style
|
Screw
|
Thread Size & Deepth(mm)
|
M2,4
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Insulation Class
|
B
|
|
Packaging Details
|
|
Body Size
|
D10*H10(mm)
|
Product Feature
1.Holding type, round shape, mini size, IP65 waterproof, DC solenoid electromagnet.
2.The electromagnet need to be energised to develop suction force, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.
3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.
4.Also offer custom shape and energise to release circular electromagnet.

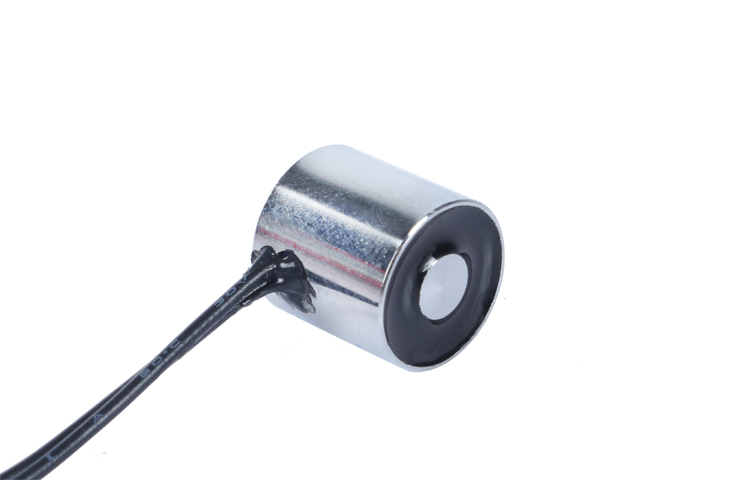

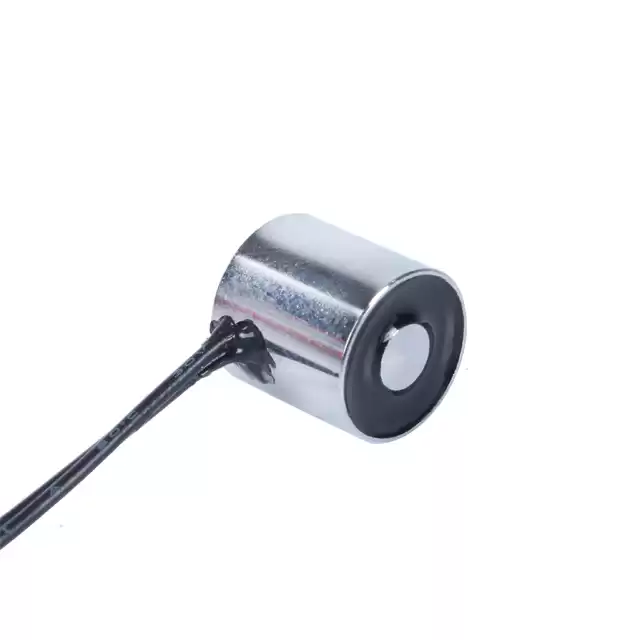

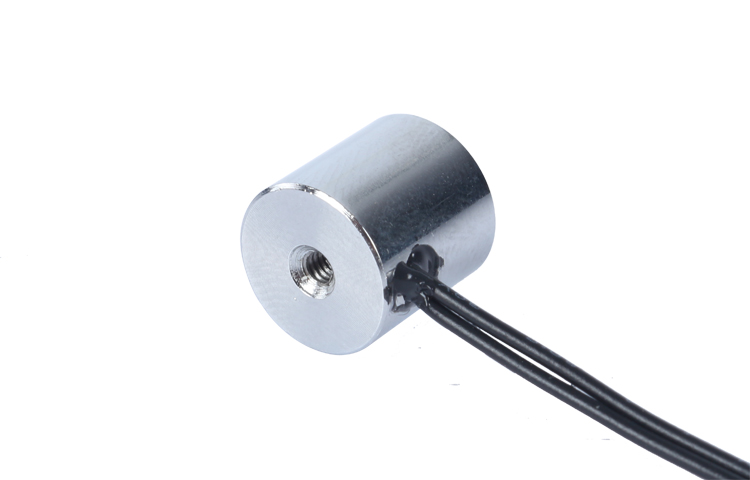

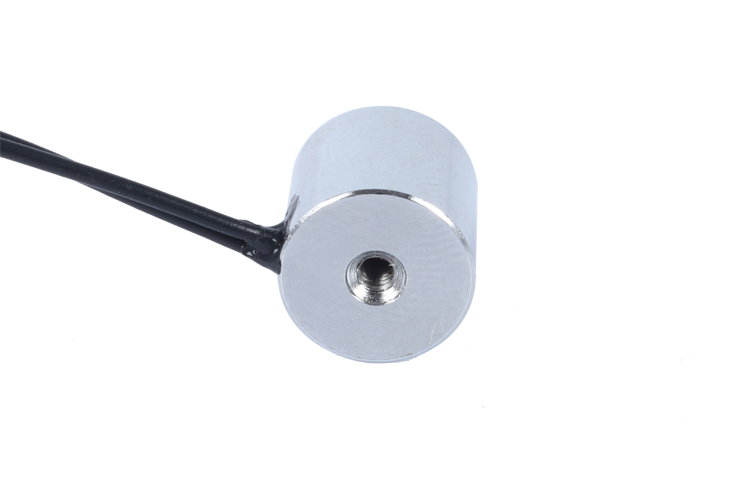

Detailed Images
