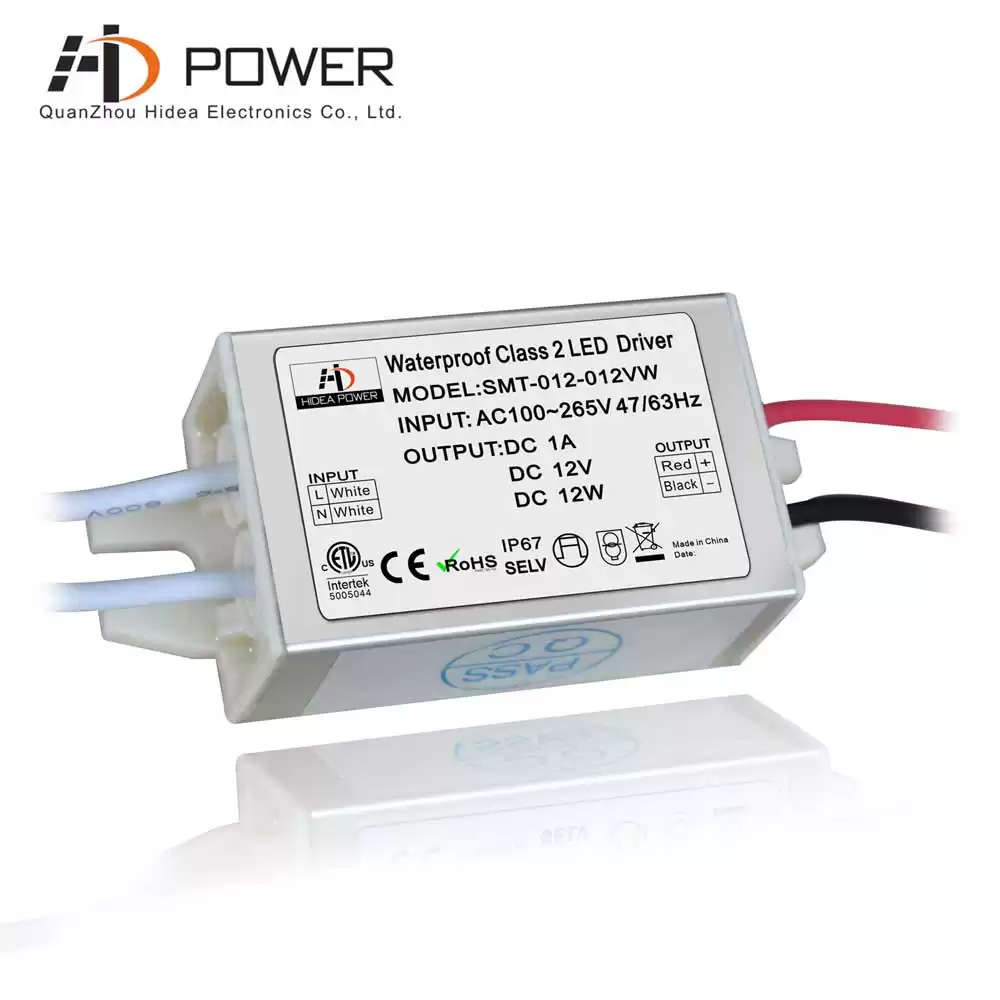

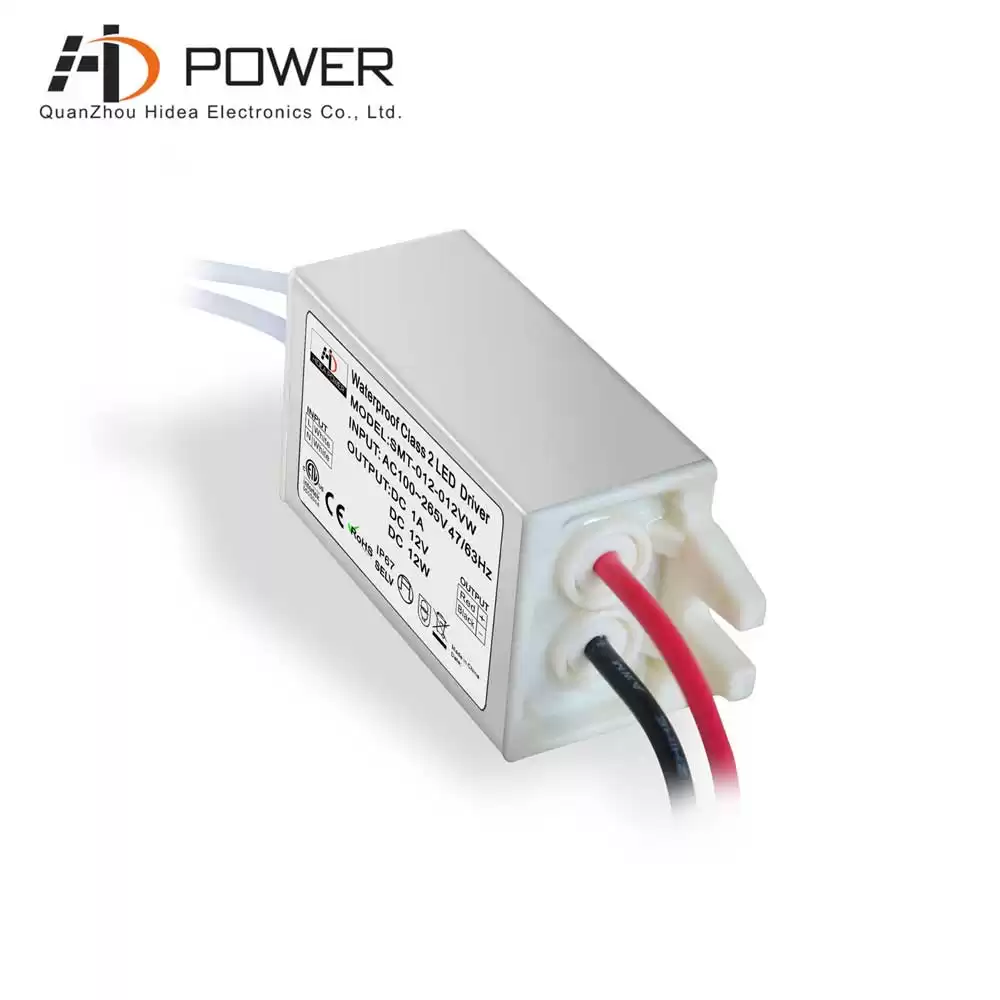

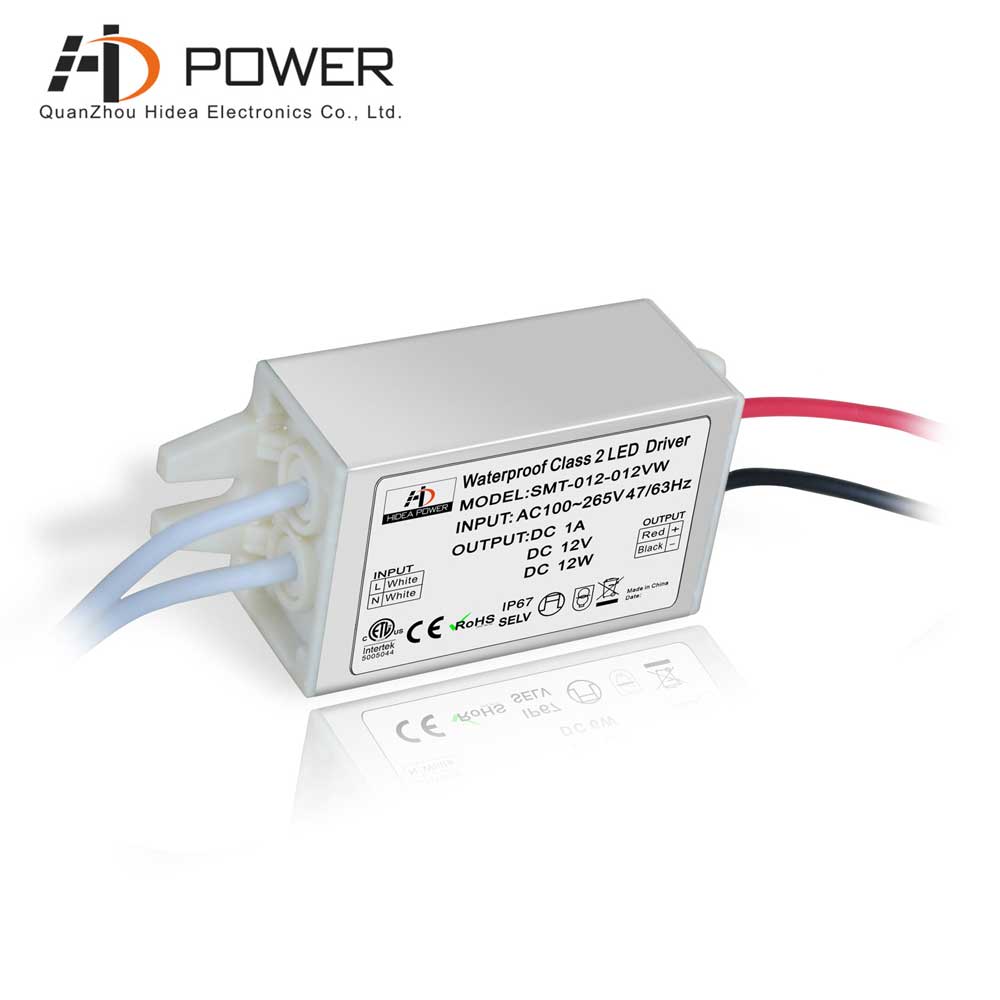

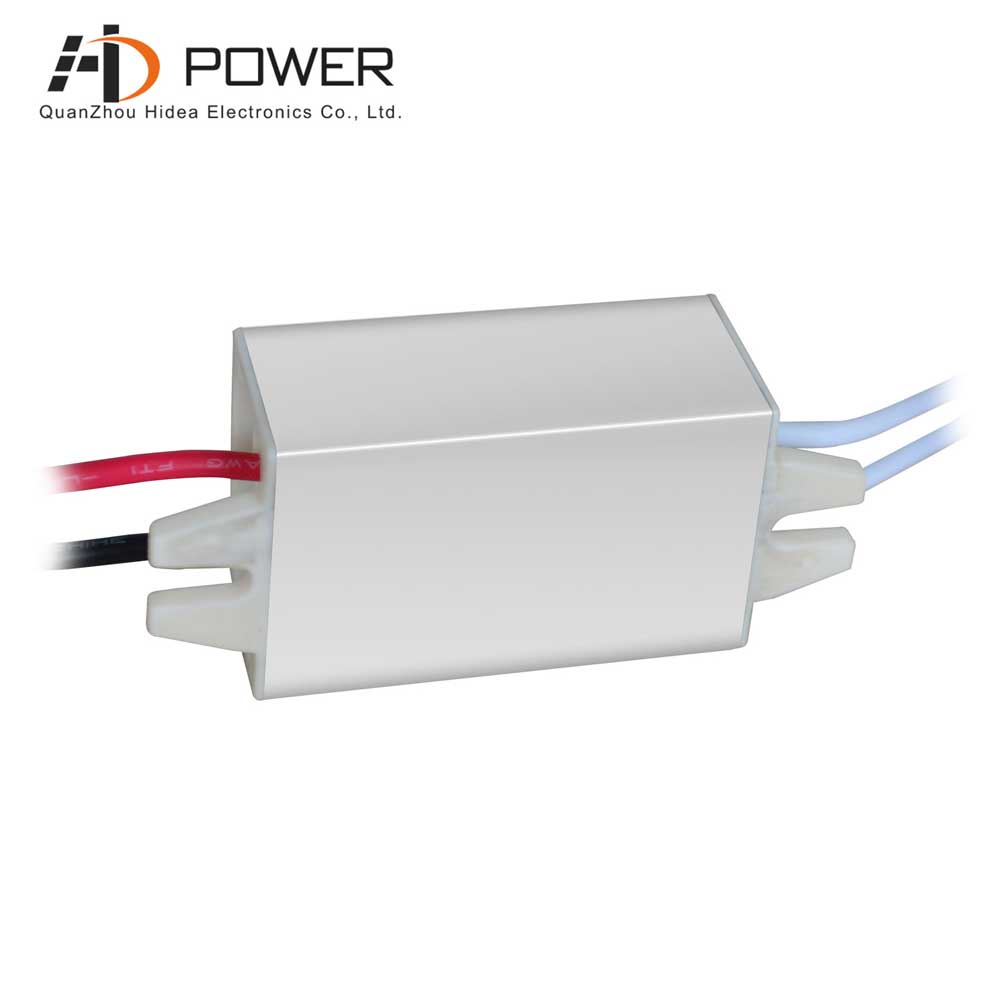

mini 24V 12W constant voltage led strip lights driver power supply
ETL certified 24v 12w constant voltage led power supply with short circuit/overload/over temperature protection, input voltage range between 100-265vac, with 5 year warranty
Specification
|
MODEL
|
SMT-012-012VW
|
SMT-024-012VW
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
1A
|
0.5A
|
|
CURRENT RANGE
|
0~1A
|
0~0.5A
|
|
RATED POWER
|
12W
|
12W
|
|
RIPPLE&NOISE(max)
|
<700mV
|
<400mV
|
|
VOLTAGE TOLERANCE
|
±0.5V
|
±0.5V
|
|
INPUT
|
VOLTAGE RANGE
|
90~265VAC
|
|
FREQUENCY RANGE
|
47~63Hz
|
|
POWER FACTOR(Typ.)
|
|
|
EFFICIENCY(Typ.)
|
>81%
|
>81%
|
|
AC CURRENT(Typ.)
|
0.20A @110VAC / 0.099A@220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
INGRESS PROTECTION
|
IP67 design for indoor or outdoor installations
|
|
STORAGE TEMP
|
-40~+80℃
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13;SELV;IP67 UL, CE, ROHS approved
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentioned are measured at 110V~220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Light Type
hideapowertech manufactures ETL CE ROSH approval waterproof IP67 non dimmable 12v 12w led driver. it is designed to perform safely with led strips lights to the shelving in your great room, such as MIRRORS & MARBEL.
Related Products
|

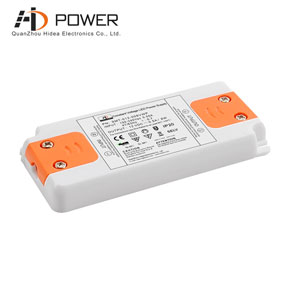

Ultra-thin series VWP constant voltage led driver 6W CE certified, input voltage range is between 100-240vac, mainly sold to Europe, plastic shell design, waterproof grade ip20
