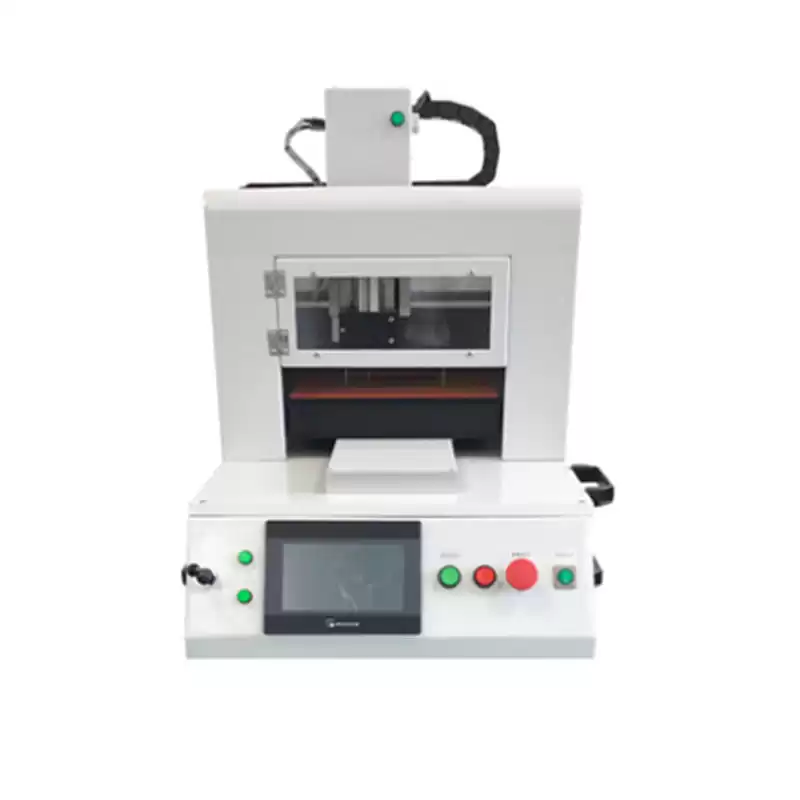

Mini Bench-top PCB Router Machine PCB Cutter
The bench-top PCB router machine uses the high-speed rotating spindle to cut automatically. It provides a high-performance, high safety and high stability industrial equipment platform (high-precision integrated motion control card, stepping motor, precision slide rail) with simple operation, fast cutting speed and high accuracy, with the high-intensity dust collection system, keep PCBA and working surface clean.
Bench-top PCB Router Machine Features:
1. ;Bench-top PCB router machine with speeds up to 100mm/s and
positioning speeds of 500mm/s.
2. Uninterrupted
continuous cutting during loading and unloading.
3. High-quality spindle
system enables the bench-top pcb router machine to accelerate and decelerate quickly, reducing ;synchronization time and
increasing productivity while maintaining high precision.
4. Use high quality
hardware to ensure high steel and high performance.
Bench-top PCB Router Machine Specifications:
|
Drive system motor
|
servo / stepper motor
|
|
Spindle
|
domestic / imported spindle
|
|
Cutting performance
|
500mm / s
|
|
Drive system repeatability
|
± 0.02mm
|
|
Cutting speed
|
Max 100mm / S depends on PCB material and cutting quality
|
|
Resolution
|
±0.01mm
|
|
XYZ Stroke
|
300 * 300 * 100mm
|
|
PCB positioning
|
special or standard fixture
|
|
Handling method
|
manual mode
|
|
Thickness of circuit board
|
0.4mm-4mm
|
|
Spindle power
|
0.5 kW
|
|
Spindle speed
|
40,000 rpm
|
|
Machine size
|
650*550*615mm
|
|
Weight
|
73KG
|
Bench-top PCB Router Machine Photos:
; ;
; ;
Our Certificate:
Company Profile:
2008, Dongguan factory established, and start producing standard v-cut PCB separators and hot bar soldering machines.
2010, Our products are widely sold in local market.
2012, Start producing customized v-cut depaneling and PCB router.
2014, ;Expand our sales team for providing better service to more customers.
2015, Start manufacturing laser depaneling machines.
2017, Start manufacturing ;soldering robot and screwdriver machines.
2018, HK company established.
2019, Huizhou factory established, due to expansion.
2020, Business expansion again, products covering PCB depaneling, PCB soldering, screwdriver system, etc. ;
2021, Our machines cover all Chinese market and also popular in America, Europe, South Asia, East Asia, etc.
As the requirements of PCB circuit boards in consumer electronics and automotive electronics such as mobile phones are getting higher and higher, no dust, no burrs, and no deformation at the cutting edge have become mainstream requirements. The traditional processing mode will affect the PCB circuit to varying degrees. plate. The non-contact processing mode of the pcb laser cutting machine does not generate stress and dust, and the processing gap is very small. These advantages make this processing mode stand out and are more and more favored by major manufacturers.
Our Service:
1. Guarantee for 12 months.
2. Maintenance for whole life.
3. We ;will ;provide ;the ;consumable ;parts ;at ;an ;resonable price.
4. 24 ;hours x 7days online ;service, ;free ;technical ;support.
5. Machine ;has ;been tested before ;delivery.
6. We ;have ;manual ;instruction ;and Guiding ;Videos for installation, ;operation ;and machine's ;using ;and ;maintenance.
7. Oversea on-site installation and trainning is available.
8. Vacuum & wooden case packaging is provided free of charge for sea shipment.
