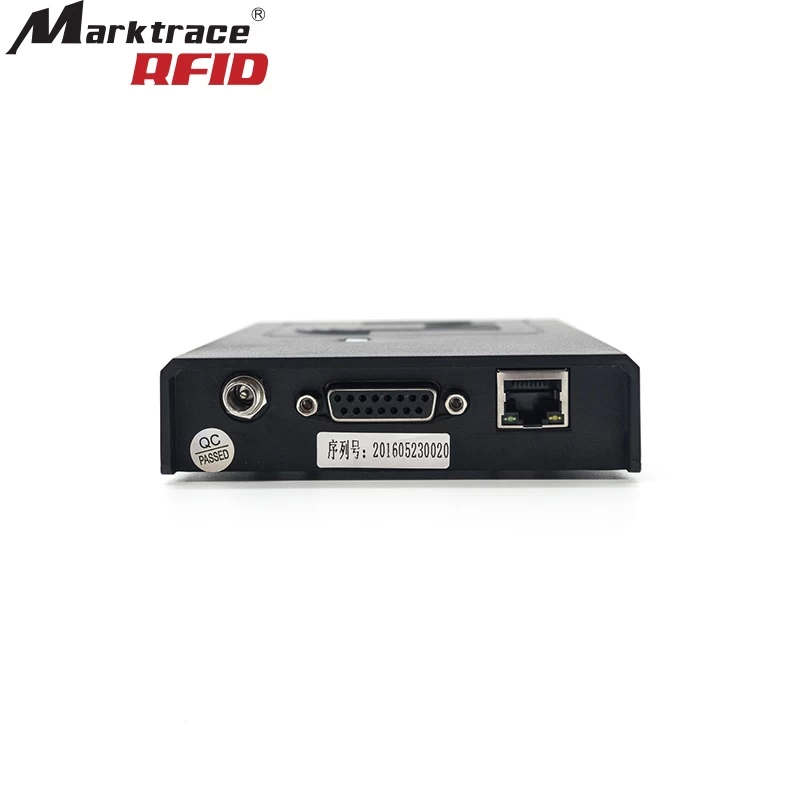

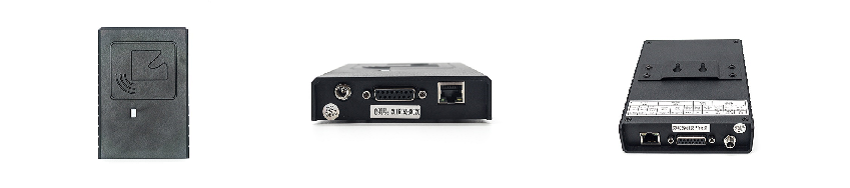

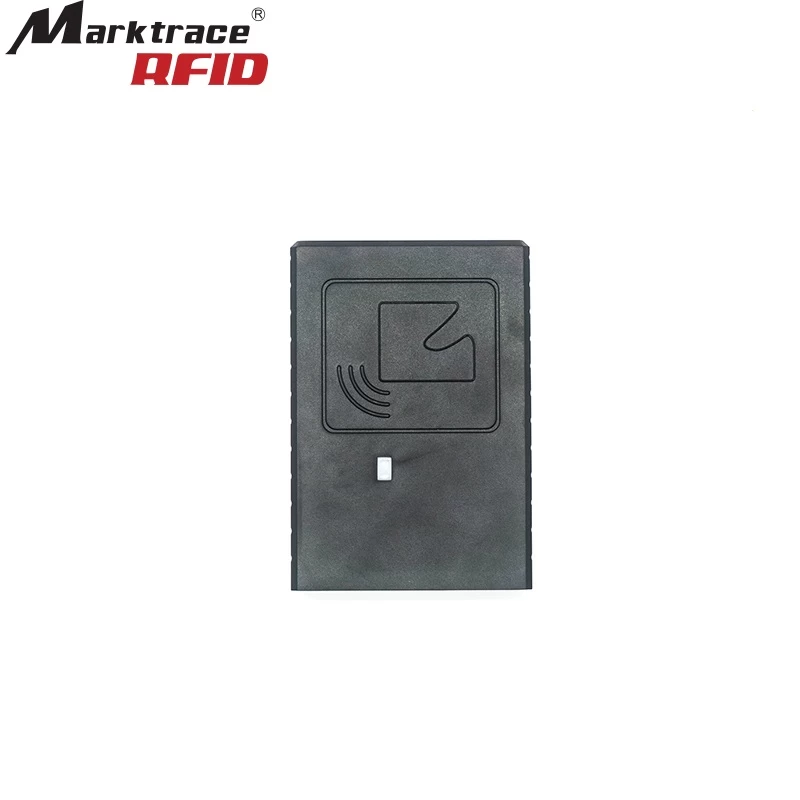

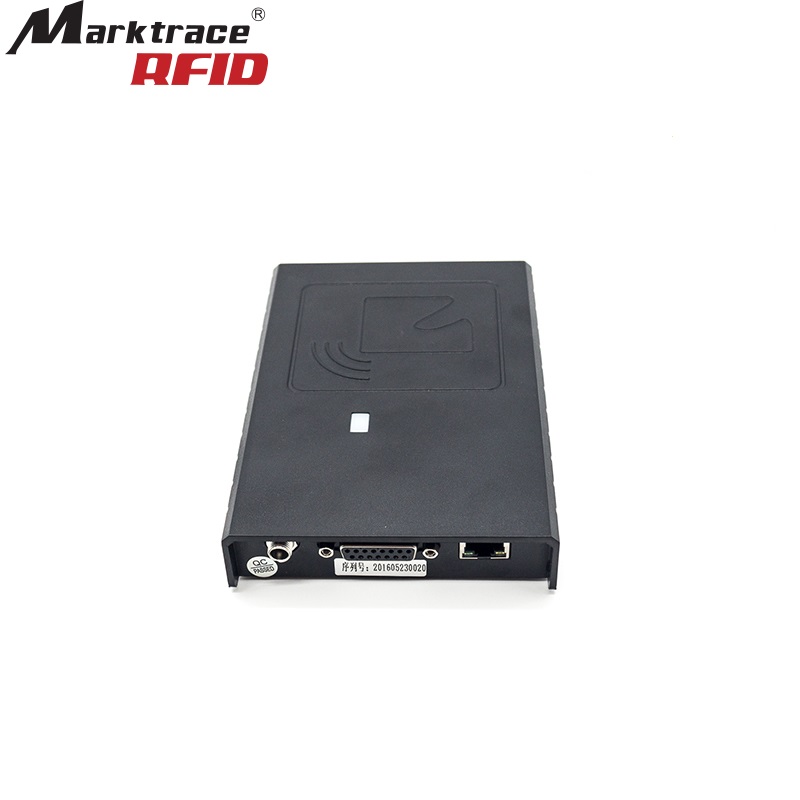

Mini Desktop Short Range UHF RFID Reader and Writer
Mini Desktop Short Range UHF RFID Reader and Writer
MR6261E UHF RFID
reader based on new generation reader technology platform development.
Combined UHF
RFID advanced technology and many years experiences based on RFID market.
MR6261E UHF long
range integrated RFID reader is more stable and can be used in various
applications
RFID reader communicates
wirelessly through the antenna and RFID tag
Realizing the
read of tag identification codes and memory data, controlling unit and the reader
antenna.
The electromagnetic
clutch is coupled with radar principle.
Short Range UHF RFID Reader Specification
Model No.: MR6261E
Frequency: US(902~928MHz),
China(920~925MHz), EU(865~868MHz), customized
Protocol: ISO18000-6C, EPC G2
RF Power: 0~31dBm adjustable
Sensitivity: -80dBm(3dBi antenna more
than 3m)
Read Speed: Multi-tag
200pcs/second,single tag 2000 times/minute
Processor: ARM CORTEXM3 100MCPU
Memory: 16KB tag data memory and
32KB ferroelectric memory
Data
Interface: 100M Ethernet interface(TCP/IP), RS232/RS485, Wiegand26/34
One
team input and one team output(TTL),one team Relay
Dimension: 154.6*106.5*26.5mm
Power Supply: DC+9V~+15V
Working Temp.: -20β~60β
Certifications: FCC, CE, CCC
Our Advantage
1.Built-in 3dBi
linear polarization antenna
2.Reading range of 3 meters
3.Waterproof & Dust-proof
4.Easy using for
vehicle tracking
5.Microwave RFID
card reader reaches strong penetrability
6.Long
communication distance and anti-collision performance
7.Strong security
stability and fast reading speed
Application
1.Warehouse Assets Management 2. Logistics 3. Production Line Management
