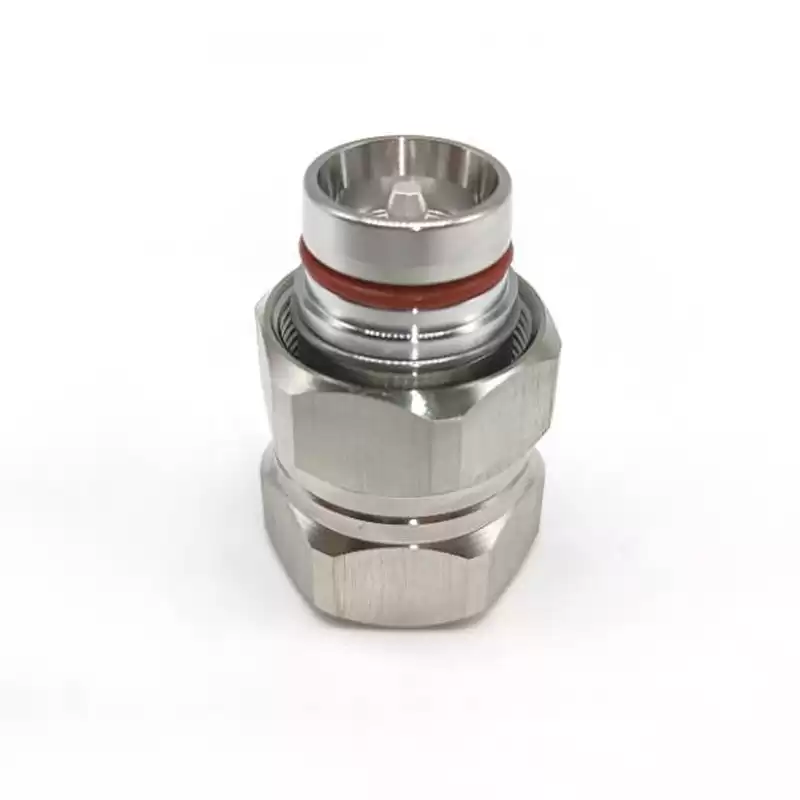

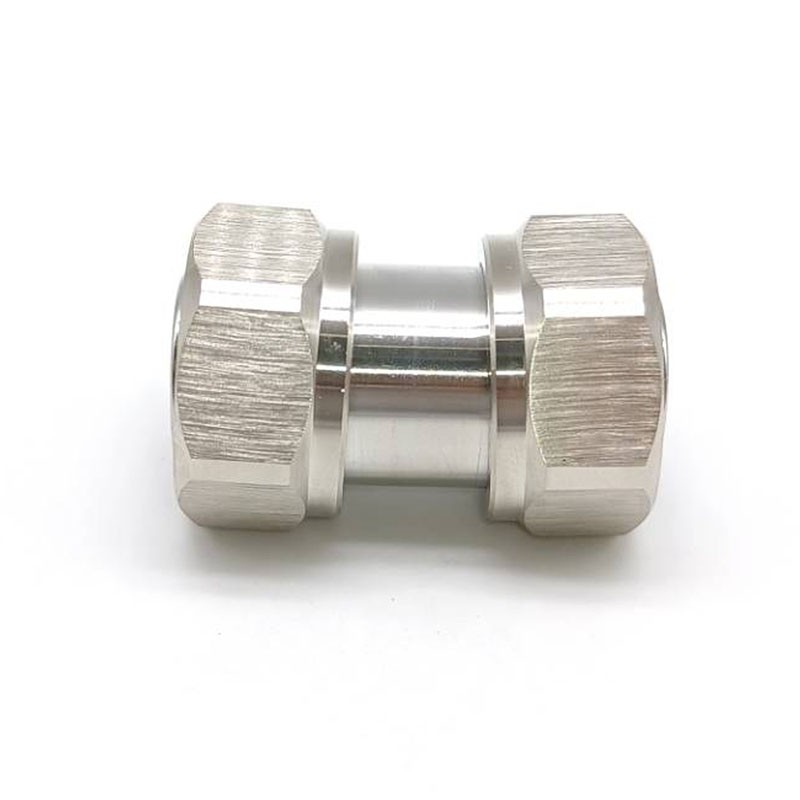

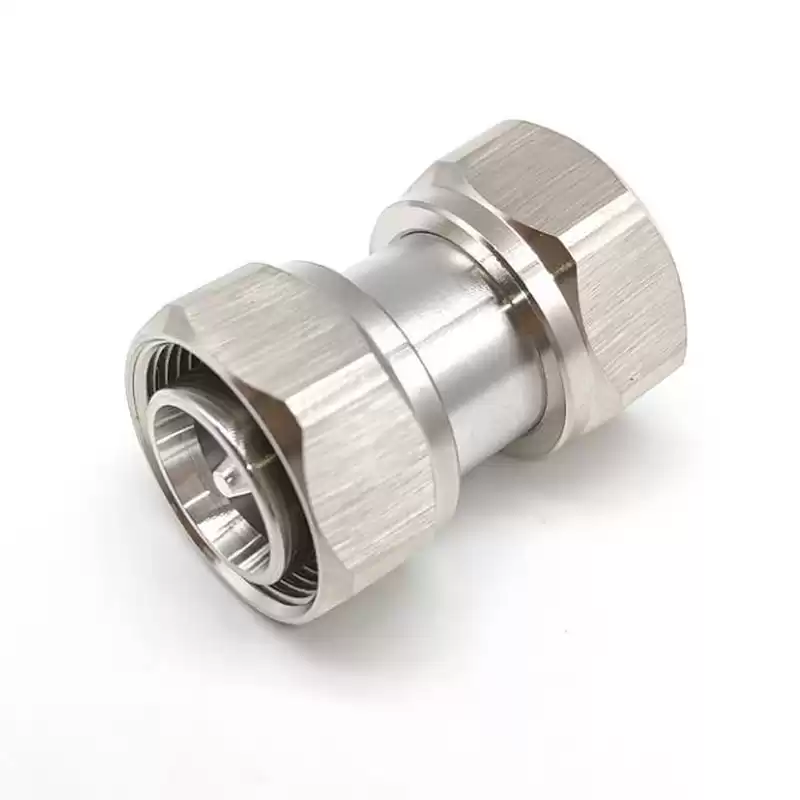

MINI DIN 4.3-10 Male to 4.3-10 Male Coaxial Connector Adapter
The 4.3-10 Adapter has different 4.3-10 to 4.3-10 adapter gender.The 4.3-10 to 4.3-10 adapters has female to female, male to female or male to male gender. it has straight or right angle body. ROHO offers 4.3-10 to 4.3-10 adapters in standard or low PIM designs. This 4.3-10 male to 4.3-10 male adapter has a maximum frequency of 6GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
4.3-10 |
| Adapter Side 1 Style |
Male |
| Adapter Side 2 Series |
4.3-10 |
| Adapter Side 2 Style |
Male/Plug |
| Frequency (Max GHz) |
6 |
| Impedance (Ohms) |
50 |
| Low PIM |
Yes |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- Telecommunication installations
- Mobile radio
- Communication engineering
- Radar applications
