All-aluminum Industrial Embedded Fanless Mini Box PC, J6412 or J1900 or N1840 CPU, 2LAN 2COM 6USB
Product Introduction
Yanyue MIS-EPIC02 is an mini industrial computer with the advantages of small size, low power consumption, and flexible interface. It is suitable for machine vision, edge computing, traffic vision, deep tilt, and artificial intelligence applications.
| Specifications |
optional configurations |
| Chassis |
All aluminium construction, sandblasted titanium black |
|

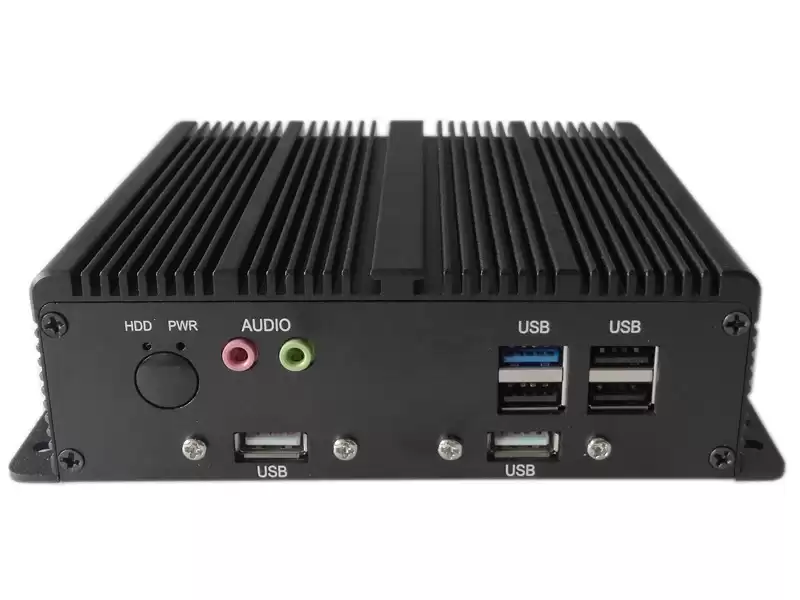

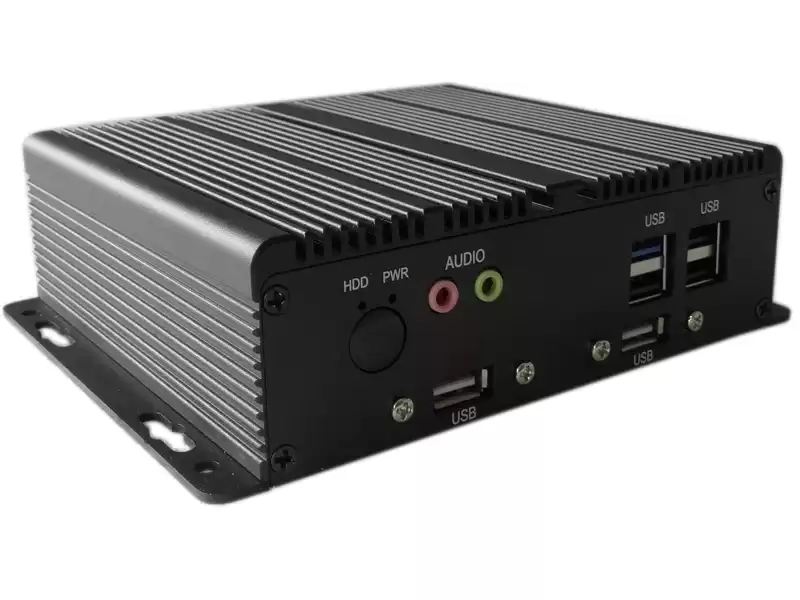

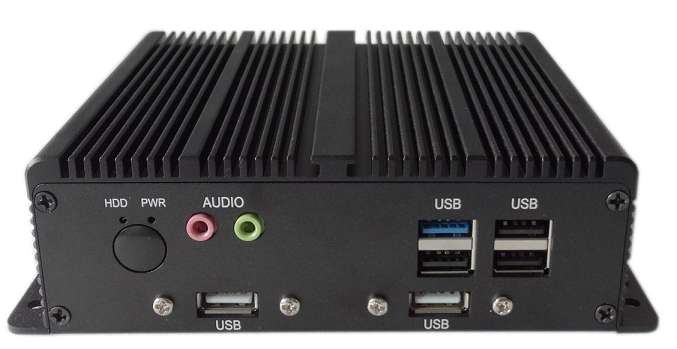

| Front |
With indicator switch；2audio hole；4USB |
N2840/J1900 have 1×USB3.0; J6412 has 2×USB3.0 |

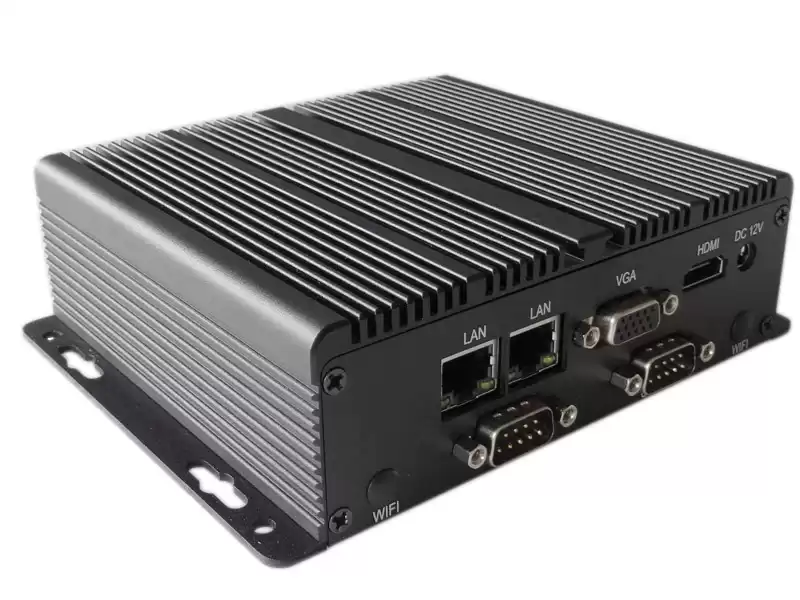

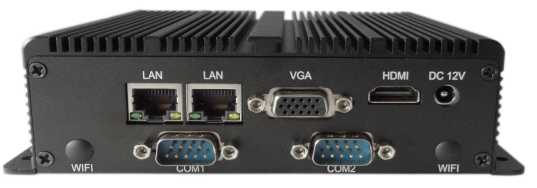

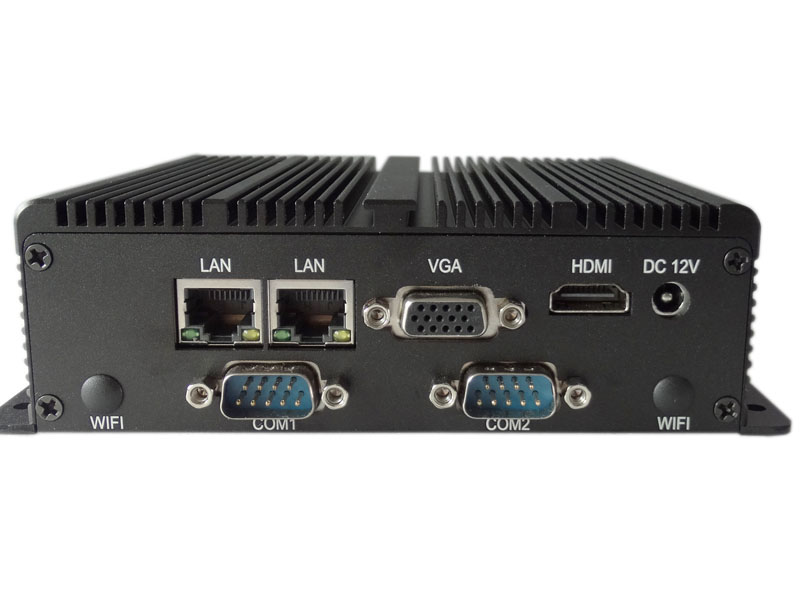

| Back |
DC IN；VGA+HDMI display； 2RJ45 gigabit LAN；2COM; 2 antenna holes |
|
| Hard disk rack |
The motherboard supports MSATA SSD |
|
| Adaptive Motherboard |
Special soldered on-board J1900/N2840/J6412 motherboard |
|
| CPU/GPU |
J1900 |
Optional 2840, J6412 |
| Memory |
4G DDR3 |
Optional 8G DDR3 notebook memory,J6412 optional 4G/8G/16G DDR4 |
| Hard Disk |
64G MSATA |
Optional 32G/128G/256G/512G/1T Msata SSD |
| Ethernet |
2LAN (Intel Gigabite Network) |
Optional 4LAN |
| Display Interface |
VGA + HDMI |
Optional VGA+2HDMI |
| Size |
138*125*45mm（Dimensions without bracket） |
Net/Gross Weight |
1/1.5KG |
| Power Supply |
12V adapter as standard |
|
| Installation mode |
Bracket installation |
Product Features
■ Soldered on-board Intel J1900 or N2840 or J6412 CPU
■ 2 gigabit network ports，2COM 6USB
■ 2 audio holes
■ Supports VGA+HDMI independent dual display
■ Flexible configuration, optional memory hard drive of various capacities
■ DC12V input
| Work and Environment |
| Working temperature |
（-20～60）℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |
Ordering Information
| MIS-EPIC02/N2840 |
N2840 CPU, 1×USB3.0 |
| MIS-EPIC02/J1900 |
J1900 CPU, 1×USB3.0 |
| MIS-EPIC02/N5095 |
N5095 CPU, 2×USB3.0 |
| MIS-EPIC02/J6412 |
J6412 CPU, 2×USB3.0 |

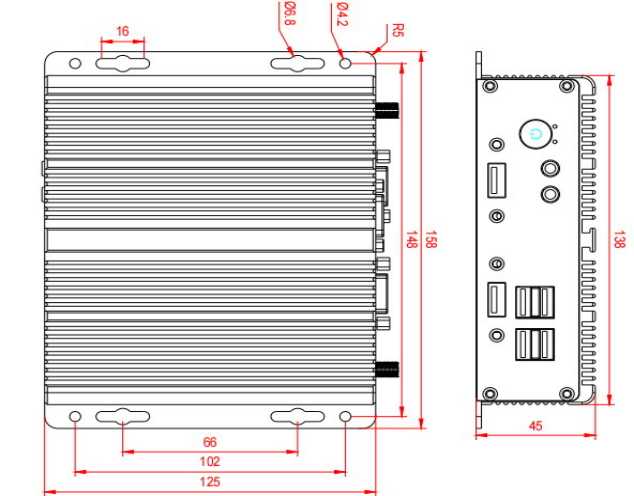

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
