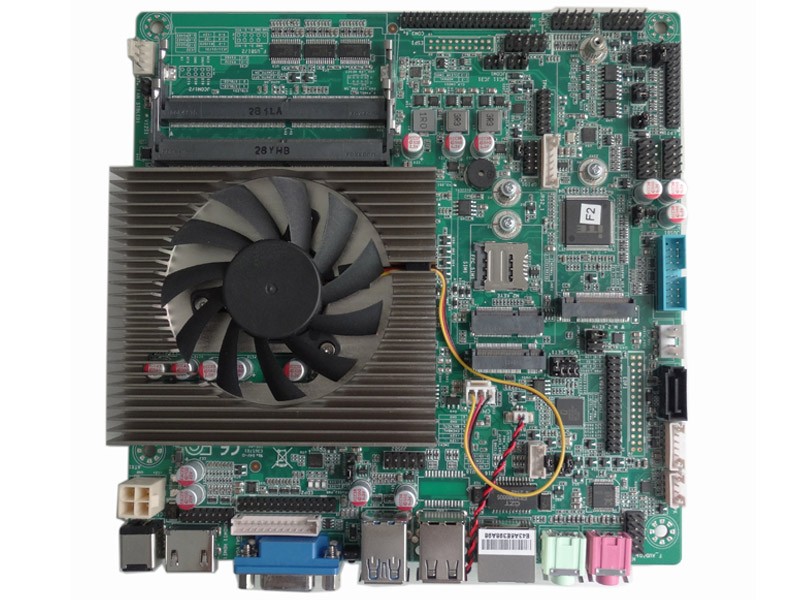

Mini ITX Industrial Motherboard 11th generation G7 Series CPU 12V DC Input

ITX-T11DL268/T11DL16A

Mini ITX Motherboard,Soldered onboard Intel® 11th generation G7 Series CPU,2LAN 6COM 8USB or 1LAN 6COM 10USB, 12V DC Input







Mini ITX Industrial Motherboard,Soldered onboard Intel® 11th generation G7 Series CPU,2LAN 6COM 8USB or 1LAN 6COM 10USB, 12V DC input



Product Introduction

Mini ITX motherboards are usually smaller, the assembly process can be more challenging. This requires more precise assembly and wiring, but can also be a pleasure and a technical challenge. ITX systems are ideal for scenarios where portability is required, such as LAN parties, mobile showcases, presentations, and more. The compact size makes them easier to carry and set up.



Specification

CPU/GPU

Soldered onboard Intel® 11th generation G7 Series CPU

Memory

2×DDR4 SO-DIMM notebook slot,up to32GB SDRAM

Storage

1×SATA ,1×M.2 support

Sound Card

Realtek HD Audio

NIC

2×Gigabit LAN or 1×Gigabit LAN

Graphics board

CPU integrated graphics card

Display

VGA,  HDMI;LVDS;  EDP, Supports 4 independent displays

USB2.0

4 or 6 for 1×LAN

USB3.0

4

GPIO

8 bits(4 bits In, 4 bits Out)

COM

6COM RS232

Backplane I / O

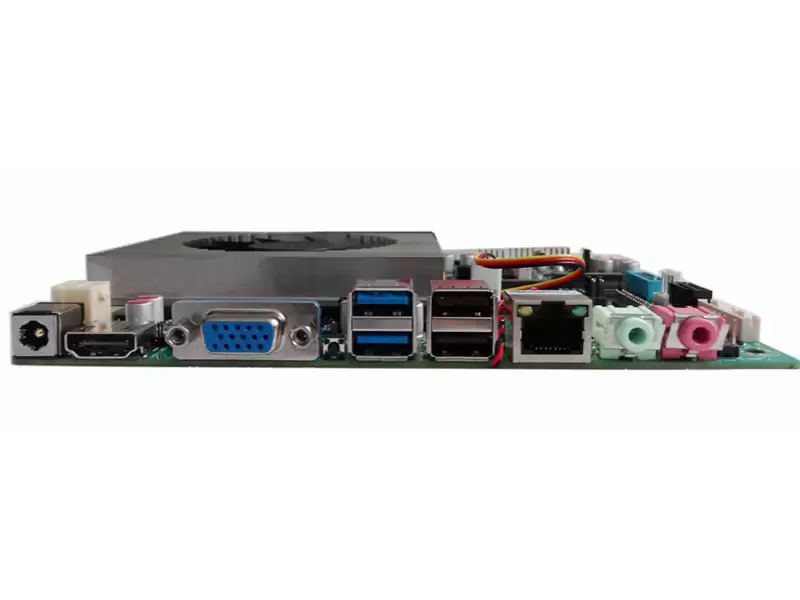

DC in,  HDMI, VGA,  2 USB3.0,  2 RJ45 LAN(or 2USB2.0+RJ45),  Line-out+Mic-in

Board I / O

4USB2.0 , 2USB3.0,  6COM ,  front audio ,  CLR_CMOS ,  CPU fan power ,  System fan power , GPIO,  Front panel ,  Speaker,  SIM Socket,  PS/2 KB/MS,  4P DC in,  LVDS,  invert,  EDP,  LPT

Expansion

3×M.2 support WIFI

System

Support Windows(WIN 7,WIN 10 ...),Linux

Mechanical & Environmental

Power supply

DC12V

Heat dissipation

Fan

Size(L×W)

170mm×170mm

Working Temperature

-15~55℃

Storage Temperature

-40~75℃

Environmental Humidity

0~90% air humidity, no condensation

Packing list

ITX-HM76DL268 motherboard×1,SATA Data Cable×1,SATA Power Cable×1



Order Information

ITX-T11DL16A-1135G7

1LAN 10USB, I5 1135G7 CPU

ITX-T11DL268-1135G7

2LAN 8USB, I5 1135G7 CPU

ITX-T11DL16A-1165G7

1LAN 10USB, I7 1165G7 CPU

ITX-T11DL268-1165G7

2LAN 8USB, I7 1165G7 CPU



Product Features

  • Soldered onboard Intel® 11th generation G7 Series CPU
  • 2×Gigabit LAN or 1×Gigabit LAN
  • VGA, HDMI, LVDS,EDP display interface,Supports 4 independent displays
  • 6COM, 8USB(4USB3.0) or 10USB for 1×LAN
  • 8 bits GPIO
  • 3×M.2,support M.2 SSD and WIFI
  • Thin board



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
