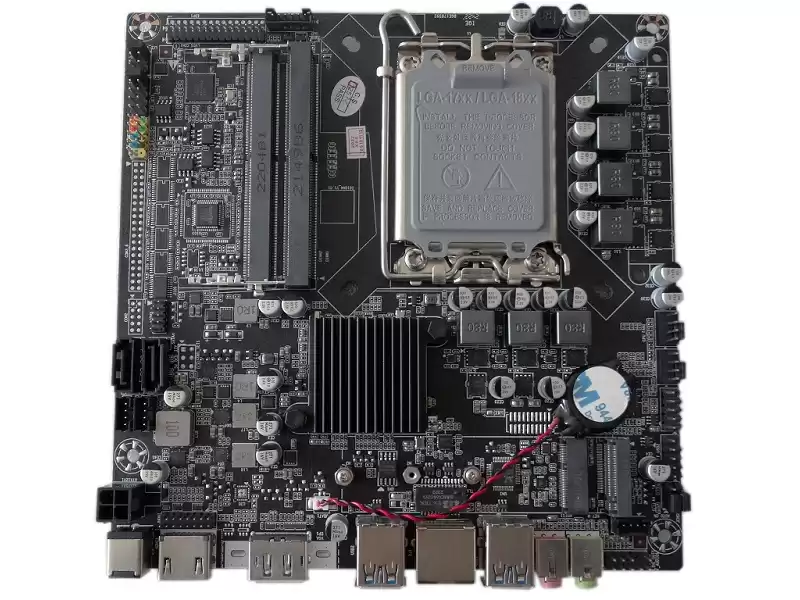

Mini ITX Industrial Motherboard Intel® PCH Chip Support 12th Generation CPU 1LAN 1COM 8USB

ITX-H610DL118/H610DL168

Mini ITX Industrial Motherboard, Intel® PCH H610 Chip,Support 12th Generation CPU,1LAN 1COM 8USB,Optional 6COM



Mini ITX Industrial Motherboard Intel® PCH H610 Chip Support 12th Generation CPU 1LAN 1COM 8USB



Product Introduction

Mini ITX is a small motherboard form factor that measures 6.7 x 6.7 inches (17 x 17 cm). It's commonly used in compact PC builds and industrial applications where space is limited. This motherboard is compatible with 12th Generation Intel Core processors, which are part of the Alder Lake family. These CPUs feature a combination of high-performance and high-efficiency cores, making them suitable for various computing tasks. Industrial-grade motherboards like this one are often designed for durability, reliability, and compatibility with various industrial applications where stability and longevity are critical. They may also have features like extended temperature range support, additional ruggedization, and specialized connectors for industrial use cases.



Feature

■ Support 12th generation Intel®Core CPU

■ 2×DDR4 SO-DIMM notebook slots,up to 32G

■ DP,HDMI,LVDS or EDP display I/O

■ 1LAN,  1COM,  4USB2.0,  4USB3.0

■ Optional 6COM

■ DC12~19V input

■ Ultra-thin

■ 2×M.2



Specification

CPU/GPU

Support 12th generation Intel®Core™i7 / i5 / i3,Pentium®/Celeron® CPU

Chip

Intel@ PCH H610

memory

2×DDR4 SO-DIMM notebook 32GB SDRAM

Storage

1×SATA,1×M.2

Sound

Realtek ALC662,5.1 channel support

NIC

1×LAN Realtek8111 GbE

Display Card

CPU integrated graphic

Display Interface

DP, 1×HDMI, LVDS or EDP

USB2.0

4

USB3.0

4

COM

1×COMRS232,optional 6COM

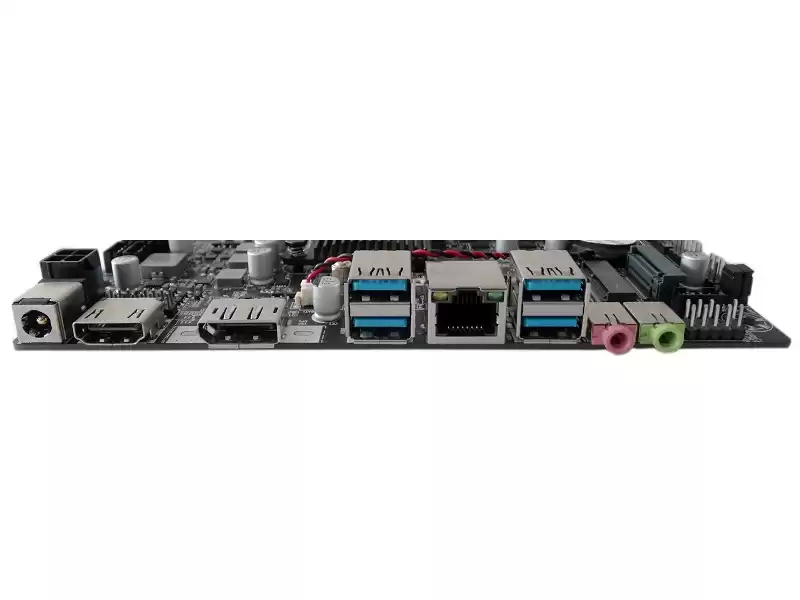

BackplaneI / O

DC in,HDMI,DP, 4USB3.0, RJ45LAN,Line-out+Mic-in

BoardI / O

4USB2.0 , 1 COM , front audio , CLR_CMOS , CPU fan power , System fan power ,  Front panel ,  Speaker, 4P DC In, JHDMI, LVDS or EDP

Expansion

2×M.2

System

Support Windows(WIN 10 ...),Linux

Mechanical & Environmental

Power Supply

DC12~19V

Heat Dissipation

Fan

Size(L×W)

170mm×170mm

Working Temperature

-15~55℃

Storage Temperature

-40~75℃

Environmental Humidity

0~90%air humidity,no condensation

Packing List

ITX-H610DL118 motherboard×1,SATA data cable×1,SATA power cable×1

Ordering information

ITX-H610DL118

1×COM

ITX-H610DL168

6×COM
