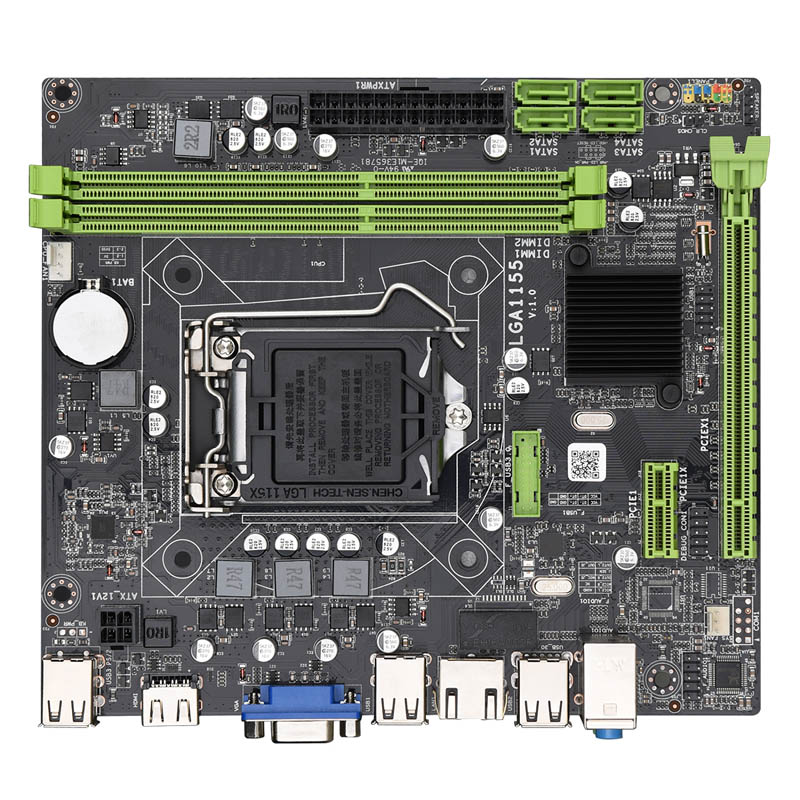

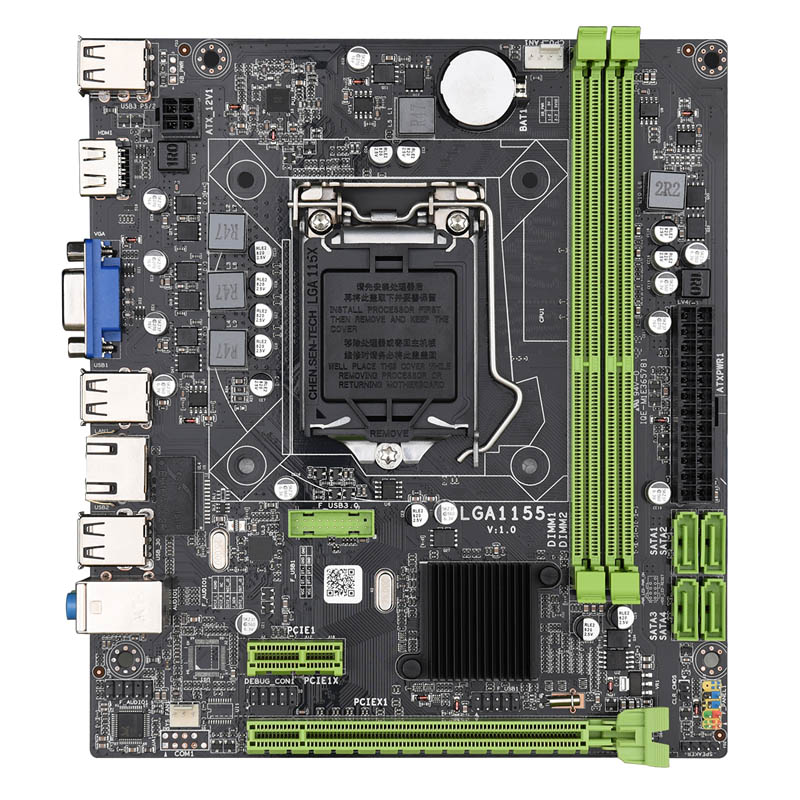

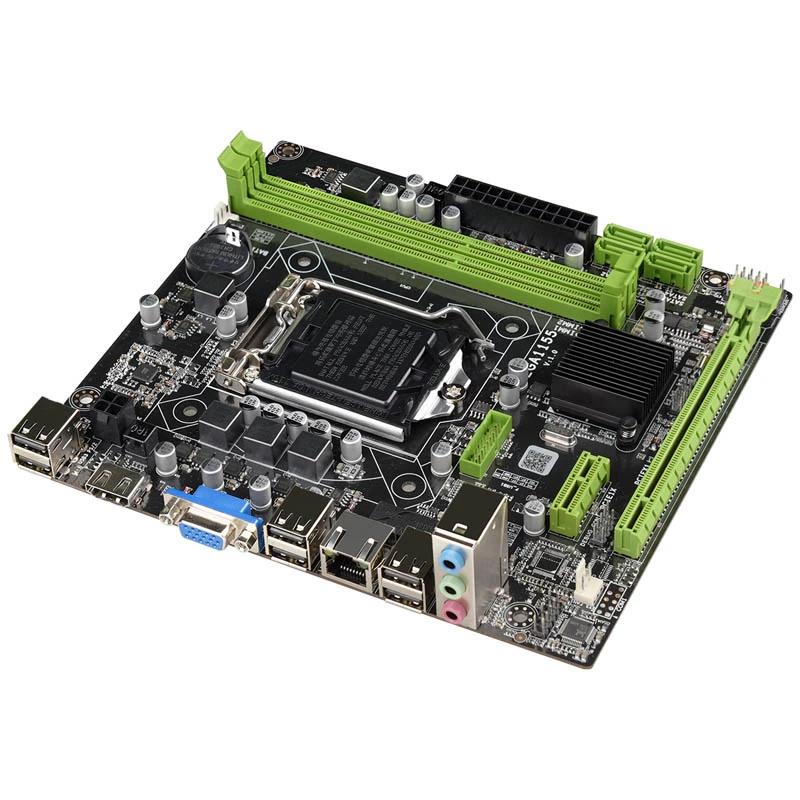

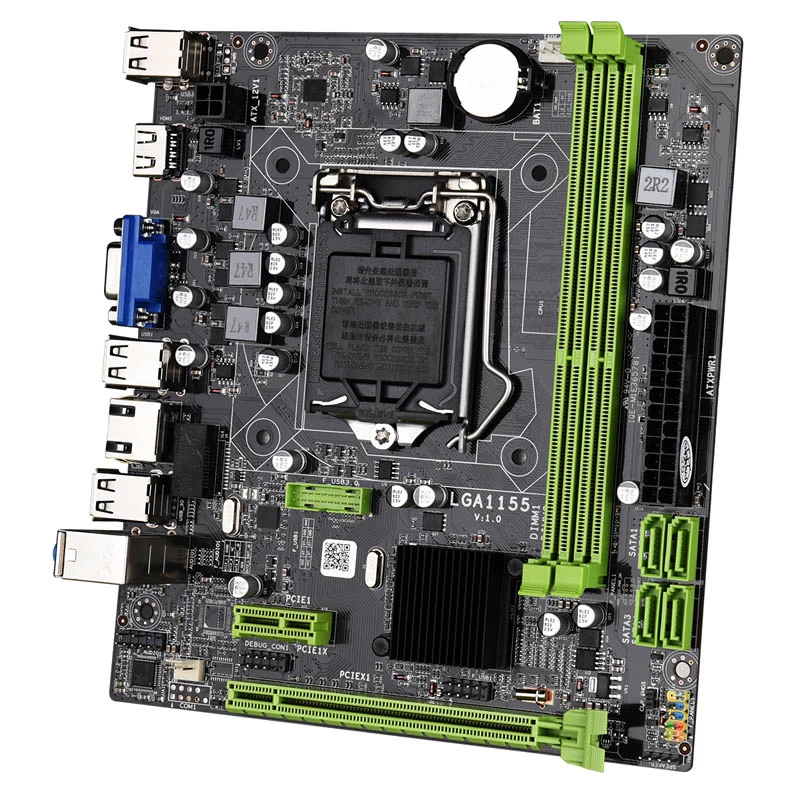

Mini-ITX Intel H61 chipset LGA 1155 motherboard with dual channel DDR3

  • Mini-ITX form factor 170x170mm
  • Intel H61 chipset
  • LGA 1155 socket, support Intel® Core™ i7 / i5 / i3 / Celeron Processors
  • Dual channel DDR3 DIMM, support 1066/1333/1600mhz, up to 16GB
  • Integrated HDMI + VGA ports

  • MemoryDual channel DDR3 up to 16GB
  • ChipsetIntel H61 Chipset
  • CPU socketLGA 1155
Facebook Twitter Pinterest LinkedIn 分享

Mini-ITX motherboard with
Intel H61 chipset & LGA 1155 socket

Details...

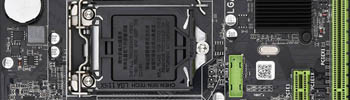

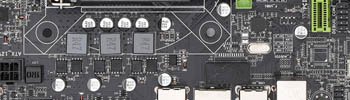

LGA 1155 Socket

Support Intel® Core™ i7 / i5 / i3 / Celeron Processors 		itx 1155 motherboard
mini itx h61 motherboard

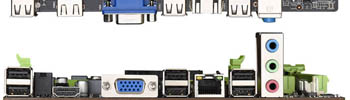

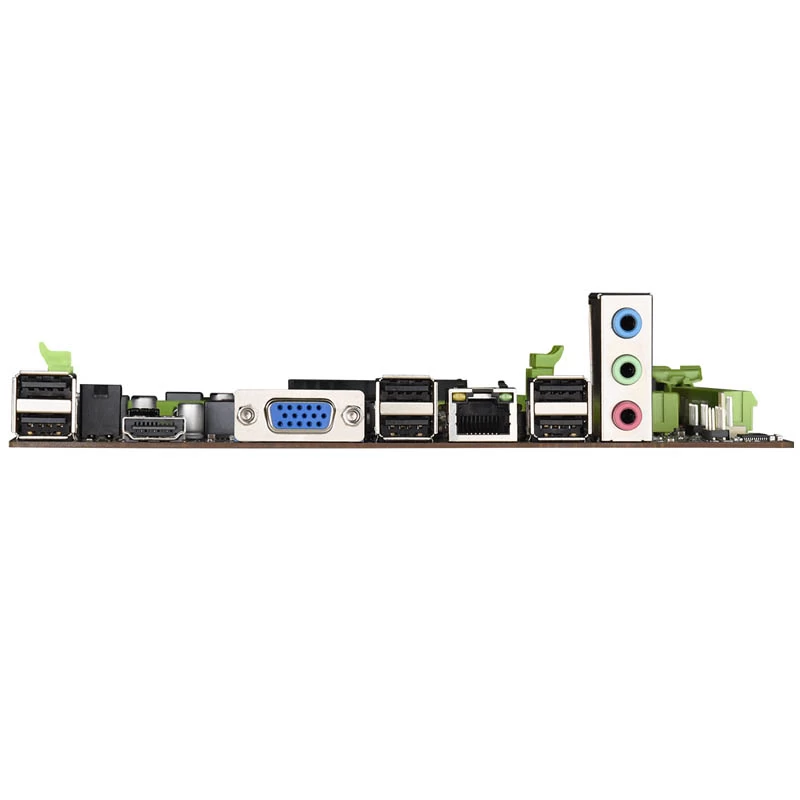

HDMI + VGA

Multiple Interfaces, Superior Extensibilities.

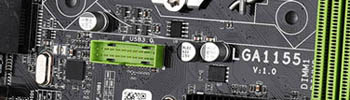

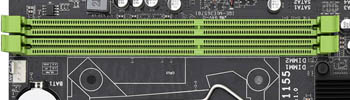

DDR3

Dual channel DDR3, Support 1066/1333/1600mhz, up to 16GB 		mini itx motherboard
mini itx lga 1155 mainboard

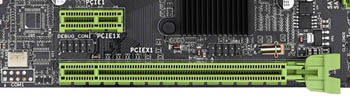

PCIE

Support PCIE 2.0 8x slot
PCIE 1x

Solid Capacitors

Better Performance, Say "No" To Used/Recycled Materials, Strict In Thickness, Fitness, Dimension. 		h61 motherboard
1155 motherboard

USB 2.0

Built-in Internal 2 x USB 2.0 Header;
Rear 6 x USB 2.0 ports.

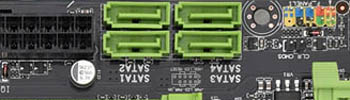

SATA2

Built-in 4 x SATA2, High speed transmission, boot your OS in an instant. 		china motherboard factory

Processor Cores CPU Clock rate Graphics Clock rate L3 TDP Motherboard
Branding & Model (Threads) Normal Turbo Normal Turbo Cache Socket Interface Memory
Core i7 2700K 3.5 GHz 3.9 GHz 850 MHz 1350 MHz 8 MB 95 W LGA 1155 DMI 2.0
PCIe 2.0 		Up to dual channel DDR3-1333
2600K 3.4 GHz 3.8 GHz
2600
2600S 2.8 GHz 65 W
Core i5 2550K 4 (4) 3.4 GHz N/A 6 MB 95 W
2500K 3.3 GHz 3.7 GHz 850 MHz 1100 MHz
2500
2500S 2.7 GHz 65 W
2500T 2.3 GHz 3.3 GHz 650 MHz 1250 MHz 45 W
2450P 3.2 GHz 3.5 GHz N/A 95 W
2400 3.1 GHz 3.4 GHz 850 MHz 1100 MHz
2405S 2.5 GHz 3.3 GHz 65 W
2400S
2380P 3.1 GHz 3.4 GHz N/A 95 W
2320 3.0 GHz 3.3 GHz 850 MHz 1100 MHz
2310 2.9 GHz 3.2 GHz
2300 2.8 GHz 3.1 GHz
2390T 2 (4) 2.7 GHz 3.5 GHz 650 MHz 3 MB 35 W
Core i3 2120T 2.6 GHz N/A
2100T 2.5 GHz
2130 3.4 GHz 850 MHz 1100 MHz 65 W
2125 3.3 GHz
2120
2105 3.1 GHz
2102
2100
Pentium G870 2 (2)
G860 3.0 GHz
G860T 2.6 GHz 650 MHz 35 W
G850 2.9 GHz 850 MHz 65 W
G840 2.8 GHz
G645 2.9 GHz Up to dual channel DDR3-1066
G640 2.8 GHz
G632 2.7 GHz
G630
G622 2.6 GHz
G620
G645T 2.5 GHz 650 MHz 35 W
G640T 2.4 GHz
G630T 2.3 GHz
G620T 2.2 GHz
Celeron G555 2.7 GHz 850 MHz 1000 MHz 2 MB 65 W
G550 2.6 GHz
G540 2.5 GHz
G530 2.4 GHz
G550T 2.2 GHz 650 MHz 35 W
G540T 2.1 GHz
G530T 2.0 GHz
G470 1 (2) 1.5 MB Up to dual channel DDR3-1333
G465 1.9 GHz Up to dual channel DDR3-1066
G460 1.8 GHz
G440 1 (1) 1.6 GHz 1 MB
