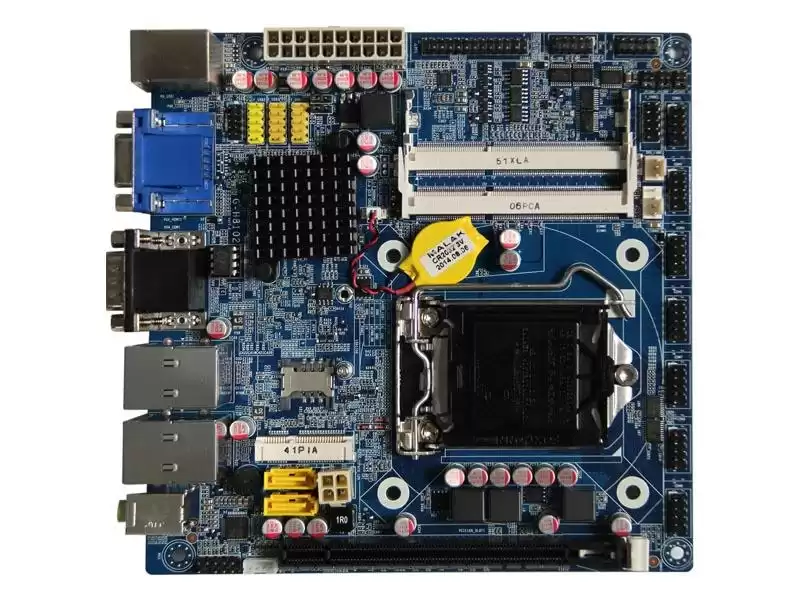

Mini ITX Motherboard Intel H81 chip, 2LAN 10COM 10USB, PCIEx16 Slot, ATX Power
Product Introduction
Choosing the best industrial motherboard (or best motherboard for another type of PC task) is a key step in your system build, even though things like CPUs and graphics cards get more attention. Every part of your PC connects to your motherboard. Its form factor (ATX, E-ATS, ITX, etc.) will dictate the size of your case. And a board's socket and chipset will limit which processors you can install.
Product Features
■ Supports LGA1150 architecture 4th generation Intel® CoreProcesso
■ 2 Realtek 8111 Gigabit LAN cards
■ 2VGA, HDMI ports
■ 10COM, 8USB2.0, 2USB3.0
■ 8-bit GPIO
■ SIM Socket
■ 1 PCIE x16 slot
System
|
CPU/GPU
|
Support for Intel Haswell 1150 Series Desktop Class i3 i5 i7 & Pentium®/ Celeron® CPU
|
|
System on Chip
|
Intel H81
|
|
Memory
|
2×DDR3 SO-DIMM,up to 16GB
|
|
Storage
|
2×SATA 3.0 1×mSATA
|
|
Sound card
|
Realtek ALC662, supports 5.1 channels
|
|
Ethernet
|
2×Realtek RTL8111F network card chip, PCI-E bus gigabit network card
1×MINI PCI-E interface, supporting WIFI/4G, etc.
|
|
Display
|
CPU integrated graphics card
|
|
LVDS
|
2×VGA, 1×HDMI
|
|
Double display
|
VGA VGA, VGA HDMI synchronous / asynchronous dual display
|
|
COM
|
10×COM RS-232, COM2,3,4 optional 5V/12V charged
|
|
USB
|
10×USB (6 on the back IO, 4 on board pins)
|
|
BackplaneI / O
|

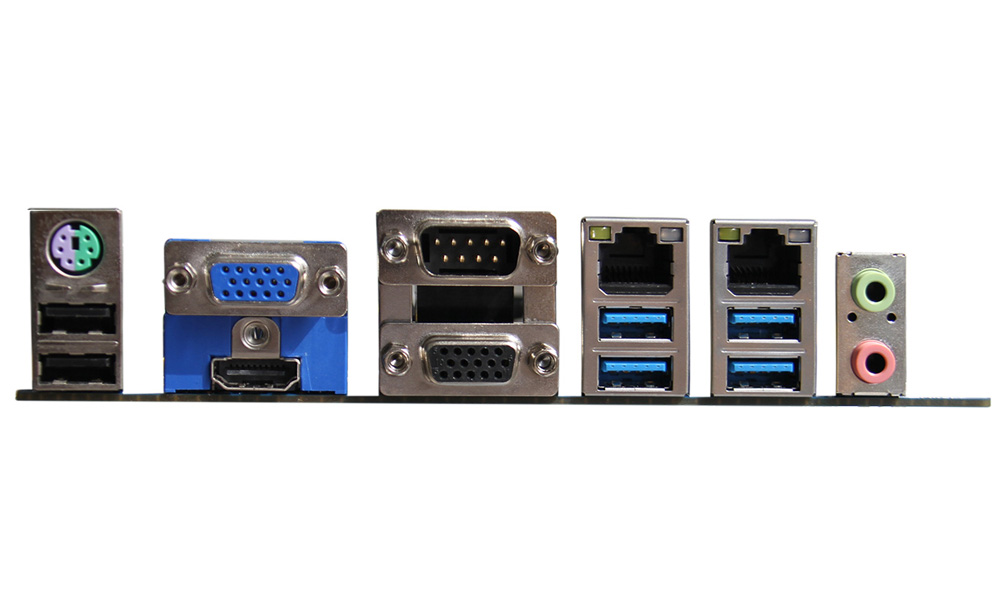

PS/2+USB,VGA+HDMI,COM+VGA,LAN+USB3.0,LAN+USB2.0,Line-out+Mic-in
|
|
BoardI / O
|
9×COM pin can be extended 9 COM RS-232 interface, 3×5V/12V live selection hopping cap
2×USB 2.0 pin can extend 4 USB 2.0 interface; 2×SIM/USB choose hopping cap
1×LPT pin, 1×power amplifier pin, 1×front audio pin
1×CLR_CMOS pin, 1×GPIO pin
1×20PIN ATX power outlet, 1×4-PIN CPU power outlet, 1×CPU fan power outlet, 1×system fan power outlet
1×front panel pin, 1×buzzer
|
|
Expand
|
1× PCIEx16; 1× MINI PCIE
|
|
Specific function
|
Support for watchdog, diskless startup, network wakeup, power on and timing
|
Mechanical & Environmental
|
Power supply
|
ATX
|
Heat dissipation
|
Fan
|
Size(L×W)
|
170mm×170mm
|
|
Working temperature
|
-15~55℃
|
Storage temperature
|
-40~75℃
|
Environmental humidity
|
0~90%air humidity,no condensation
|
|
Packing list
|
ITX-H81AH2AA-2V motherboard
|
×1
|
SATA data line
|
×1
|
|
COM line
|
×9
|
Guard
|
×1
|
|
Drive disc
|
×1
|
|
|
Application area
Industrial control computer, industrial tablet computer, industrial automation, automation equipment, integrated machine, medical treatment, digital sign, advertisement machine, etc.
