Mini ITX Motherboard HM76 QM77 Chip Support 2nd/3rd Generation Notebook CPU, 12V DC Input

ITX-HM76DL118

Mini ITX Thin Motherboard, Intel @ PCH HM76 or QM77 Chip,1LAN /1COM /8USB,Support 2nd/3rd Generation Notebook CPU, 12V DC Input

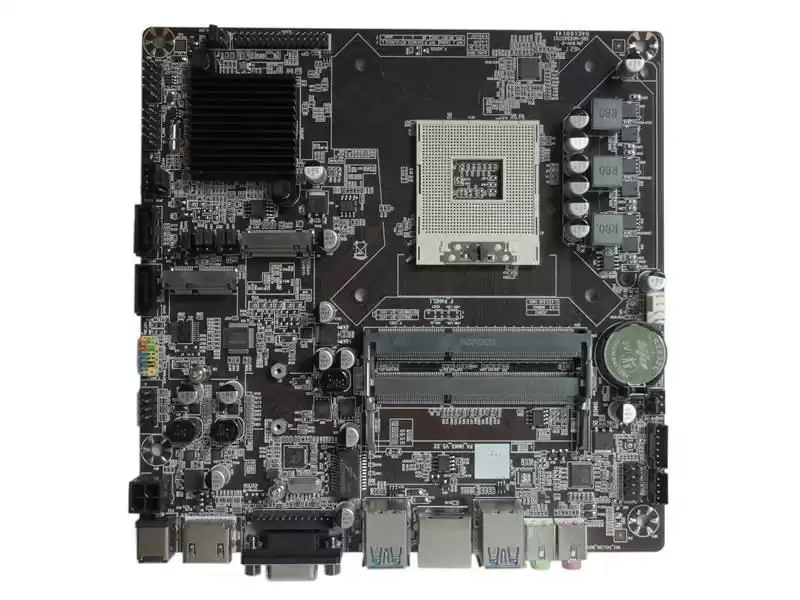

ITX-HM76DL118 Mini ITX Motherboard Support 2nd/3rd Generation Notebook CPU, 12V DC Input



Product Introduction

ITX-HM76DL118 Mini ITX Thin Motherboard is mainly suitable for 2nd/3rd Generation Notebook CPU, with the advantages of multi interfaces, low power consumption, and reliable performance.ITX-HM76DL118 Mini ITX Thin Motherboard can meet the needs of different industries regardless of size or power efficiency, an ideal platform for consumer products in the market.



Specification

CPU/GPU

Support for LGA1155 architecture 2nd/3rd generation Intel® Core Notebook CPU

Chip

Intel@ PCH HM76

Memory

2×DDR3 SO-DIMM notebook slot,up to16GB SDRAM

Storage

2×SATA ,1×M.2 support SSD

Sound Card

Realtek HD Audio

NIC

1LAN Realtek8111 Gigabit network card

Graphics board

CPU integrated graphics card

Display

1×VGA, 1×HDMI;1× LVDS

USB2.0

4

USB3.0

4

GPIO



COM

1COM RS232

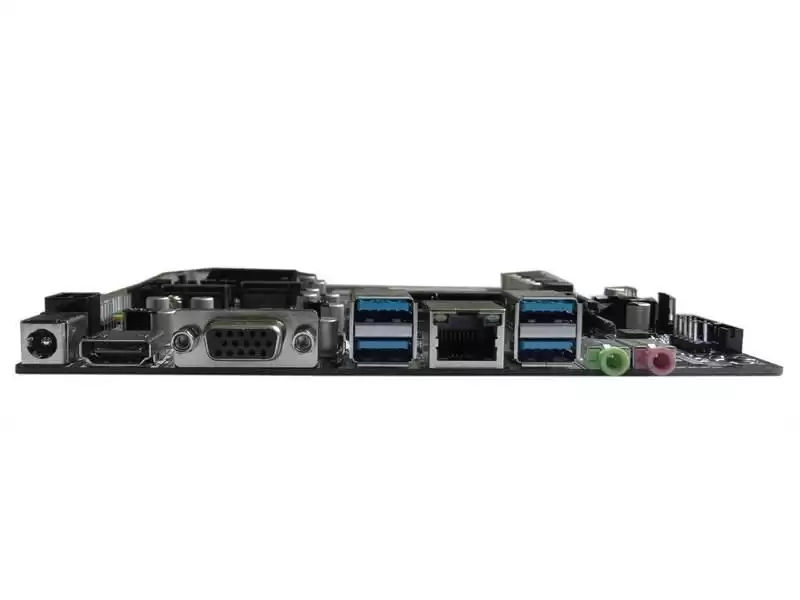

Backplane I / O

DC in, HDMI,VGA, 2USB3.0, RJ45 LAN, 2USB3.0, Line-out+Mic-in

Board I / O

5 USB pin,  1COM pin,  1 front audio pin,  1 CLR_CMOS pin,  1 CPU fan power pint,

2 system fan power pint,  1 front panel pin,  1 buzzer pin

Expansion

1×M.2 support WIFI

System

Support Windows(WIN 10,WIN 11 ...),Linux

Mechanical & Environmental

Power supply

DC12V

Heat dissipation

Fan

Size(L×W)

170mm×170mm

Working Temperature

-15~55℃

Storage Temperature

-40~75℃

Environmental Humidity

0~90% air humidity, no condensation

Packing list

ITX-HM76DL118 motherboard×1,SATA Data Cable×1,SATA Power Cable×1





Product Features

  •  Intel HM76 or QM77 chip
  • Support for 2nd/3rd generation Intel® Core™ processors
  • VGA, HDMI, LVDS interfaces
  • 4USB3.0+4USB2.0
  • 2 M.2, SSD and WIFI support for M.2
  • Thin Motherboard



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
