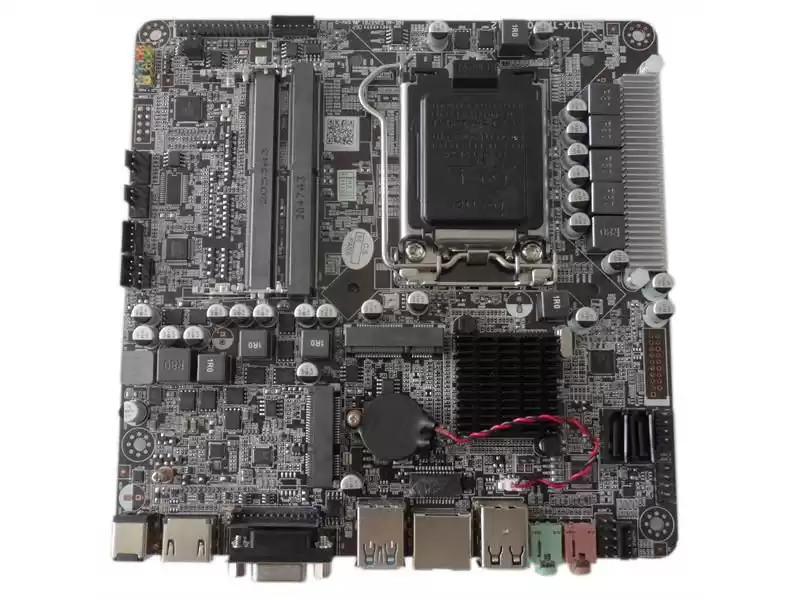

ITX-H110DL118
Mini ITX Motherboard，Intel® PCH H110 chip，1LAN 1COM 8USB
Product Introduction
Mini ITX motherboards are suitable for applications with limited space, such as small cases, media center racks and small desks. They can be integrated more easily into various environments.
Due to its compact size, Mini ITX computers are ideal for portable situations such as gaming tournaments, LAN parties, or work that requires mobile computing.
Feature
■ Support LGA1151 architecture 6th/7th/8th/9th generation Intel®Core CPU
■ 2×DDR4SO-DIMM notebook slots，up to 16G memory
■ VGA，HDMI，LVDS display I/O
■ 1×LAN, 1×COM, 6×USB2.0, 2×USB3.0
■ DC12~19V input
■ Ultra-thin
|
Specification
|
|
CPU/GPU
|
Support LGA1151 architecture 6th、7th、8th、9th generation Intel®Core™ i7 / i5 / i3，Pentium®/Celeron® CPU
|
|
Chip
|
Intel@ PCH H110
|
|
memory
|
2×DDR4 SO-DIMM notebook slots，up to 16GB SDRAM
|
|
Storage
|
1×SATA ，1×M-SATA
|
|
Sound
|
Realtek ALC662，5.1 channel support
|
|
NIC
|
1 ×LAN Intel GbE
|
|
Display Card
|
CPU integrated graphic
|
|
Display Interface
|
VGA, 1×HDMI, LVDS
|
|
USB2.0
|
6
|
|
USB3.0
|
2
|
|
COM
|
1×COM RS232
|
|
Backplane I / O
|

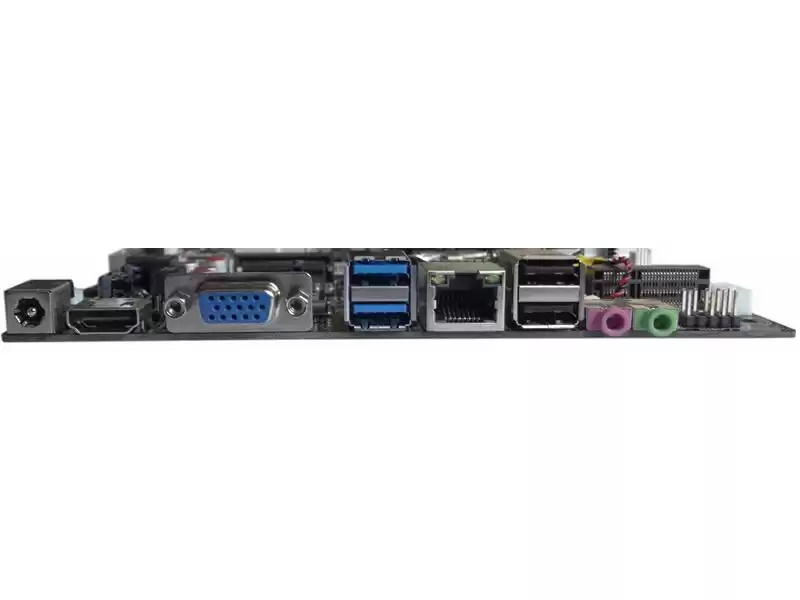

DC in, HDMI,VGA, 2USB3.0, RJ45 LAN, 2USB2.0, Line-out+Mic-in
|
|
Board I / O
|
4USB2.0 , 1 COM , front audio , CLR_CMOS , CPU fan power , System fan power , Front panel , Speaker, 4P DC In, JHDMI
|
|
Expansion
|
1 MINI PCIE（short）
|
|
System
|
Support Windows（WIN 7，WIN 10 ...），Linux
|
|
Mechanical & Environmental
|
|
Power Supply
|
DC12~19V
|
Heat Dissipation
|
Fan
|
Size(L×W)
|
170mm×170mm
|
|
Working Temperature
|
-15~55℃
|
Storage Temperature
|
-40~75℃
|
Environmental Humidity
|
0~90%air humidity,no condensation
|
|
Packing List
|
ITX-H110DL118 motherboard×1，SATA data cable×1，SATA power cable×1
|
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
