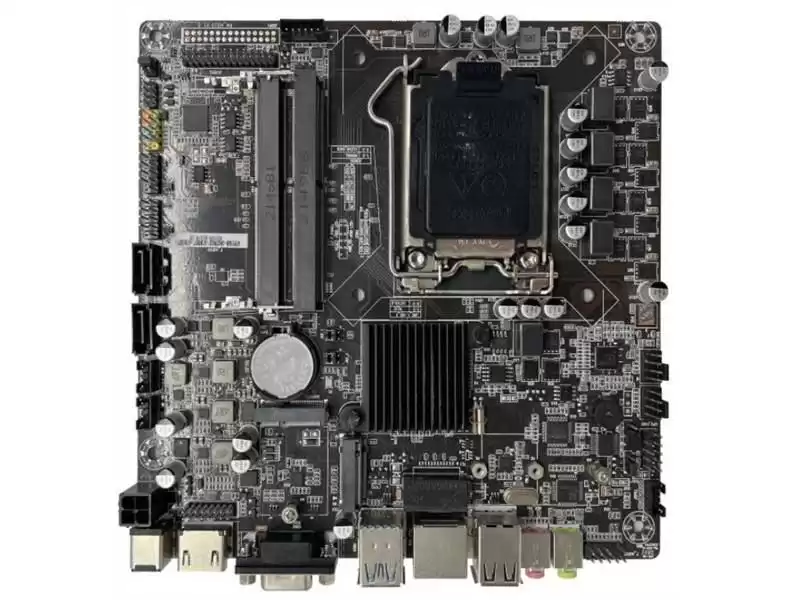

ITX-H510DL118
Mini ITX Motherboard，Intel® PCH H510 Chip，Support 10th、11th Generation CPU，1LAN 1COM 8USB
Product Introduction
6 COM Ports: Our Mini ITX Motherboard boasts an impressive 6 COM ports, perfect for industrial and automation setups that require extensive serial communication capabilities.
8 USB Ports: You'll never run out of USB connectivity options with 8 USB ports, making it easy to connect all your peripherals, from keyboards and mice to external storage devices and more.
Feature
■ Support 10th /11th generation Intel®Core CPU
■ 2×DDR4 notebook slots，up to 32G
■ VGA，HDMI，LVDS or EDP display I/O
■ 1LAN, 1COM, 6USB2.0, 2USB3.0
■ DC12~19V input
■ Ultra-thin
■ 2×M.2
|
Specification
|
|
CPU/GPU
|
Support 10th/11th generation Intel®Core™ i7 / i5 / i3，Pentium®/Celeron® CPU
|
|
Chip
|
Intel@ PCH H510
|
|
memory
|
2×DDR4 SO-DIMM notebook slots，up to 32GB SDRAM
|
|
Storage
|
1×SATA ，1×M.2
|
|
Sound
|
Realtek ALC662，5.1 channel support
|
|
NIC
|
1 ×LAN Realtek8111 GbE
|
|
Display Card
|
CPU integrated graphic
|
|
Display Interface
|
VGA, 1×HDMI, LVDS or EDP
|
|
USB2.0
|
6
|
|
USB3.0
|
2
|
|
COM
|
1×COM RS232
|
|
Backplane I / O
|
DC in, HDMI,VGA, 2USB3.0, RJ45 LAN, 2USB2.0, Line-out+Mic-in
|
|
Board I / O
|
4USB2.0 , 1 COM , front audio , CLR_CMOS , CPU fan power , System fan power , Front panel , Speaker, 4P DC In, JHDMI, LVDS or EDP
|
|
Expansion
|
2×M.2
|
|
System
|
Support Windows（WIN 7，WIN 10 ...），Linux
|
|
Mechanical & Environmental
|
|
Power Supply
|
DC12~19V
|
Heat Dissipation
|
Fan
|
Size(L×W)
|
170mm×170mm
|
|
Working Temperature
|
-15~55℃
|
Storage Temperature
|
-40~75℃
|
Environmental Humidity
|
0~90%air humidity,no condensation
|
|
Packing List
|
ITX-H510DL118 motherboard×1，SATA data cable×1，SATA power cable×1
|
