Mini ITX Motherboard Intel®J6412 CPU Soldered on Board, 2LAN 6COM 8USB, 12V DC input
Product Introduction

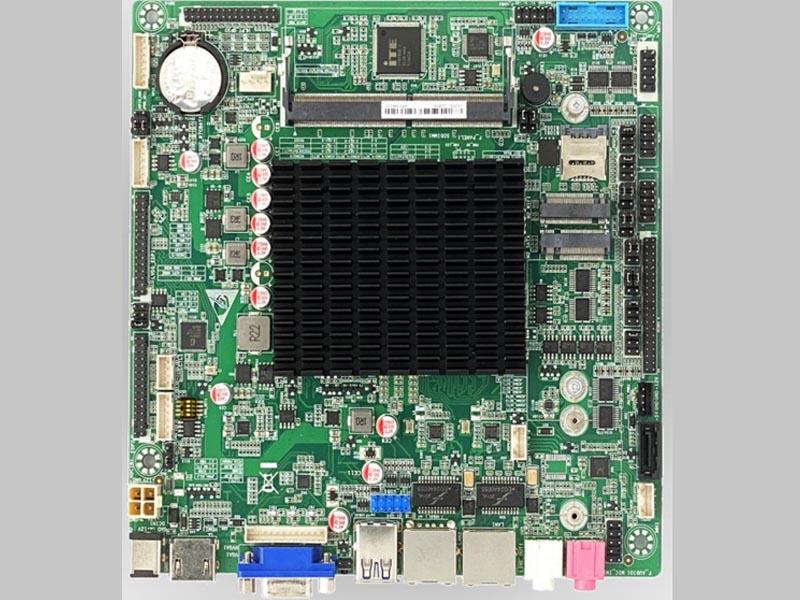

ITX-J6412DL268 is a thin mini-ITX motherboard with Intel®J6412CPU chipset. The Intel® Soldered on Board provides rapid video acceleration advantage, multiple expansion interfaces and triple-view capability.
Applications
Betting Machines
Industrial control automation
Digital Signage
Transportation
KIOSK/POS
Product Features
■ Soldered on board Intel IOTG Elkhart Lake J6412 CPU
■ 2LAN Realtek8111 Gigabit network card
■ VGA，HDMI，LVDS or EDP Tri-Display
■ 6COM, 4USB2.0, 4USB3.2
■ LPT or 16bits GPIO
■ SIM Socket
■ Support Watchdog
■ 1 M.2 Key B; 1 M.2 Key E
■ Thin motherboard,DC12V power supply
|
Specification
|
|
CPU/GPU
|
Soldered on boardIntel IOTG Elkhart Lake J6412CPU
|
|
Memory
|
1DDR4 SO-DIMM notebook slot，up to16GB SDRAM
|
|
Storage
|
1×SATA，1×M.2
|
|
Sound Card
|
ALC629， Built-in amplifier output 2.2W@4Ω
|
|
NICs
|
2LAN Realtek8111 gigabit network card
|
|
Graphics board
|
CPU integrated graphics card
|
|
Display
|
1×VGA, 1×HDMI；1× LVDS or EDP optional，support Tri-Display
|
|
USB2.0
|
4
|
|
USB3.2
|
4
|
|
GPIO
|
Optional 16bits， LPT interface by default
|
|
COM
|
6COMRS232，2COM can be set to RS422/RS485
|
|

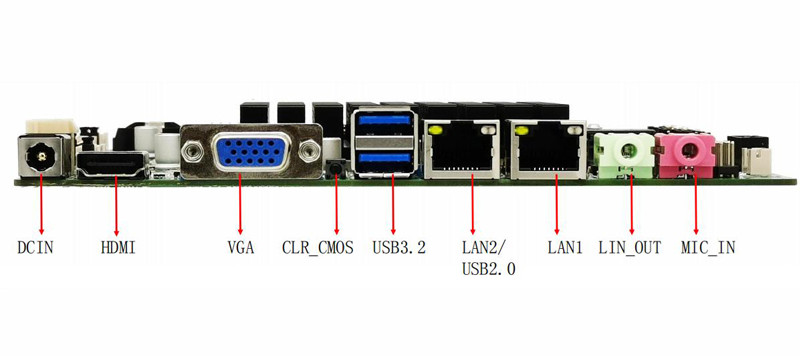

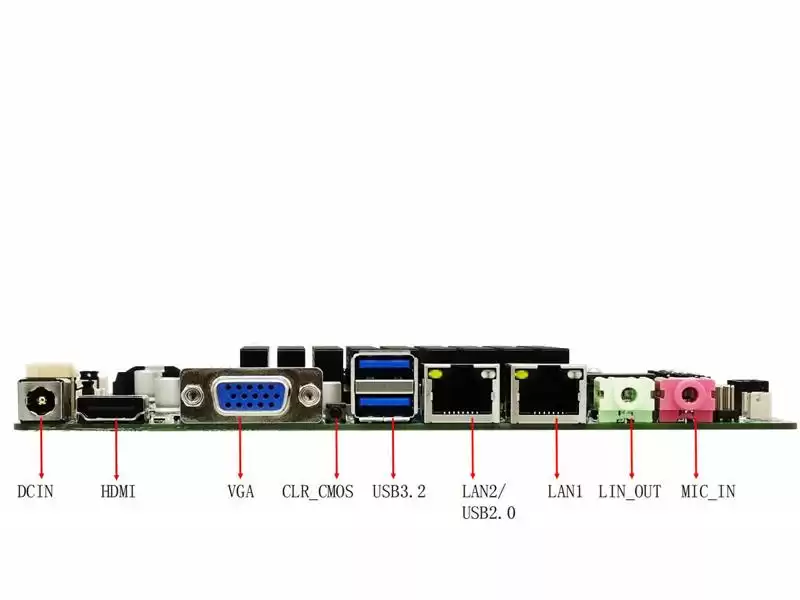

Backplane I / O
|
DC in, HDMI, VGA, 2 USB3.2, 2 RJ45 LAN, Line-out+Mic-in
|
|
Board I / O
|
4USB2.0, 2USB3.2, 6 COM, front audio, CPU fan power, System fan power, LPT
Front panel,Speaker, SIM Socket, PS/2 KB/MS, 4P DC in, LVDS/EDP
|
|
Expansion
|
1 M.2 Key B support SATA SSD/4G/5G; 1 M.2 Key E support WIFI/Bluetooth
|
|
System
|
Support Windows（WIN 10，WIN 11 ...），Linux
|
|
Mechanical & Environmental
|
|
Power supply
|
DC 12V
|
Heat dissipation
|
Fan
|
Size(L×W)
|
170mm×170mm
|
|
Working Temperature
|
-15~55℃
|
Storage Temperature
|
-40~75℃
|
Environmental Humidity
|
0~90%air humidity, no condensation
|
|
Packing list
|
ITX-J6412DL267motherboard×1，SATA Data Cable×1，SATA Power Cable×1
|
|
Order Information
|
|
ITX-J6412DL268
|
2LAN，6COM RS232，8USB
|
|
ITX-J6412DL12A
|
1LAN，2COMRS232，10USB
|
Our AdvantagesOur Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel. And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
