Mini ITX Motherboard N5095 CPU 2LAN 6COM 8USB, 12V DC input

ITX-N5095DL268

Mini ITX Motherboard, Soldered on board Intel®N5095 CPU, 2LAN 6COM 8USB, 12V DC input



Soldered on board Intel®N5095 CPU Mini ITX Motherboard 2LAN 6COM 8USB, 12V DC input



Product Introduction

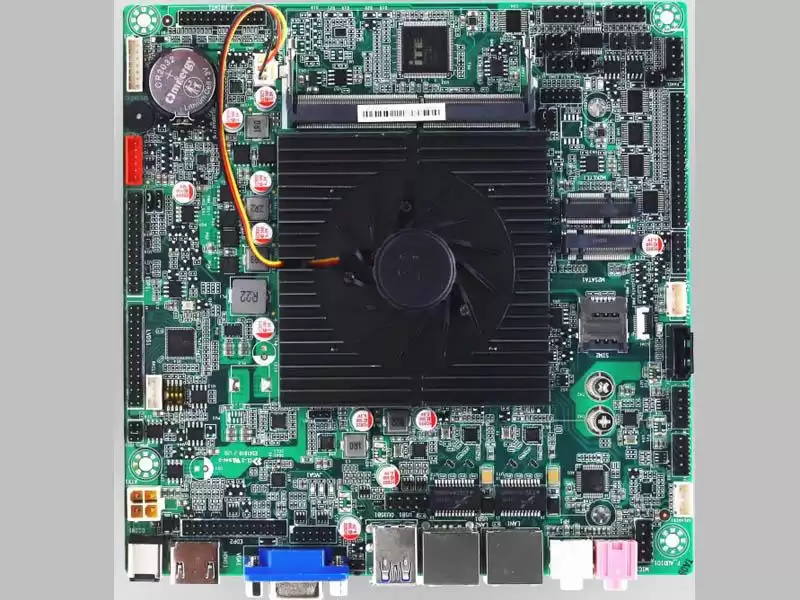

Thin Mini-ITX Embedded Motherboard with Intel® Celeron® N5095 Processor, Dual Channel DDR4 Memory, 2 x Lan, 6 x COM, 8 x USB

We have well-trained and experienced hardware maintenance engineers that specialize in maintaining PCBs and modules of the board. While ensuring ATMs to operate at high efficiency, we strive for passing savings onto our customers and keeping their maintenance costs at minimum. Our large in-stock inventory will certainly help in reducing lead time as well.



Applications

Betting Machines

Industrial control automation

Digital Signage

Transportation

KIOSK/POS



Product Features

■ Soldered on board Intel Jasper Lake N5095/N5105 CPU

■ 2LAN Realtek8111 gigabit network card

■ VGA,HDMI,LVDS or EDP Tri-Display

■ 6COM, 6USB2.0, 2 USB 3.2

■ 8bits GPIO

■ SIM Socket

■ Support watchdog

■ 1M.2 Key B; 1M.2 Key E

■ Thin motherboard,DC12V power supply



Specification

CPU/GPU

Soldered on boardIntel Jasper Lake N5095/N5105 CPU

Memory

1DDR4 SO-DIMM notebook,up to16GB SDRAM

Storage

1×SATA,1×M.2

Sound Card

On-board sound card, built-in amplifier output 3W@4Ω,1.7W@8Ω MAX

NICs

2 Realtek8111 gigabit network card

Graphics Board

CPU integrated graphics card

Display

1×VGA, 1×HDMI;1× LVDS or EDP optional,support Tri-Display

USB2.0

6

USB3.2

2

GPIO

8bits

COM

6COMRS232,1COM can be set to RS485

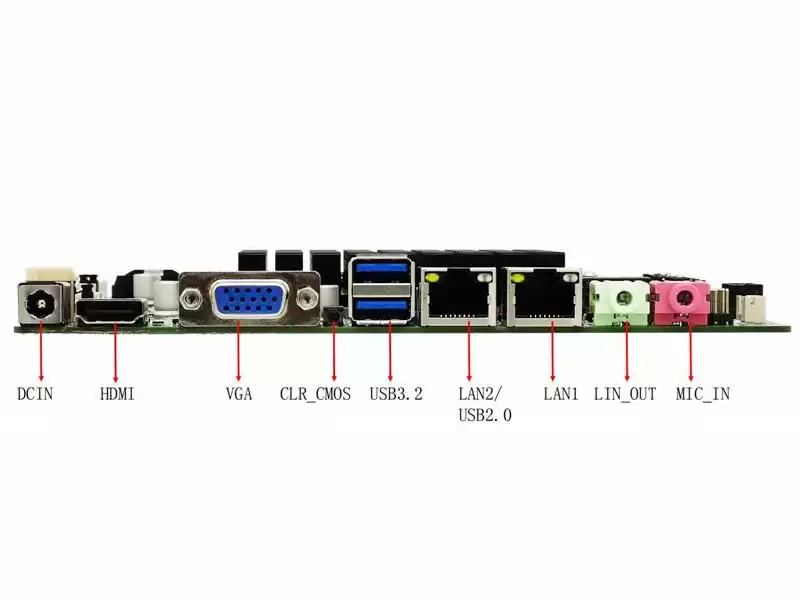

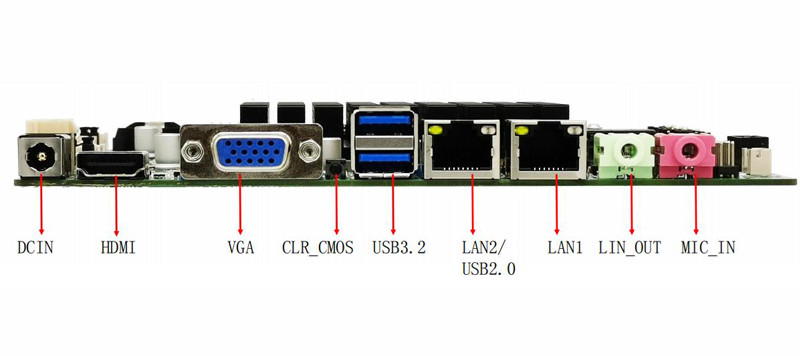

Backplane I / O

DC in, HDMI, VGA, 2 USB3.2, 2 RJ45 LAN, Line-out+Mic-in

Board I / O

6USB2.0, 6 COM, front audio, CPU fan power, System fan power, GPIO

Front panel ,  Speaker,  SIM Socket,  PS/2 KB/MS,  4P DC in,  LVDS/EDP

Expansion

1M.2 Key B support SATA SSD/4G/5G; 1 M.2 Key E support WIFI/Bluetooth

System

Support Windows(WIN 10,WIN 11 ...),Linux

Mechanical & Environmental

Power Supply

DC 12V

Heat Dissipation

Fan

Size(L×W)

170mm×170mm

Working Temperature

-15~55℃

Storage

-40~75℃

Environmental Humidity

0~90%air humidity, no condensation

Packing list

ITX-N5105DL267 motherboard×1,SATA Data Cable×1,SATA Power Cable×1

Order Information

ITX-N5105DL268

2LAN,6COMRS232,8USB

ITX-N5105DL12A

1LAN,2COMRS232,10USB



1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
