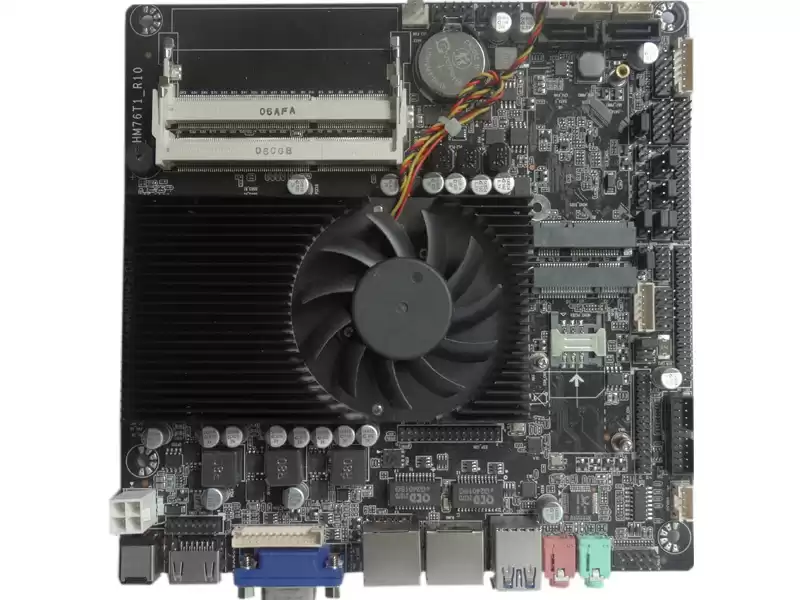

Mini ITX Slim Motherboard Chip

ITX-HM76DL268

Mini ITX Slim motherboard, HM76 Chip supports 2nd/3rd generation notebook CPU.



Mini ITX Slim Motherboard HM76 Chip supports 2nd/3rd generation notebook CPU



Product Introduction

Reliability Meets Durability: Built to withstand the rigors of demanding usage, our motherboard is crafted with premium components for unparalleled reliability. Count on it to perform flawlessly, day in and day out.

Security Beyond Compare: In an increasingly interconnected world, data security is paramount. Our motherboard includes advanced security features to safeguard your valuable information.



Feature

■ Intel HM76 chip

■ Support 2nd/3rd generation Intel®Core™ notebook CPU

■ VGA,HDMI,LVDS interface

■ 2×LAN Realtek8111 GbE

■ 6×COM, 4×USB2.0, 4×USB3.0

■ 1×MSATA,1×Mini PCIE

■ Slim,DC12V power supply



Specification

CPU/GPU

Support 2nd/3rd generation Intel® Core™ notebook CPU

Chip

Intel® PCH HM76

memory

2×DDR3 SO-DIMM notebook slots,uo to 16GB SDRAM

Storage

2×SATA ,1×M-SATA

Sound

Realtek  HD  Audio

NIC

2×LAN Realtek8111 GbE

Display Card

CPU integrated graphic

Display Interface

1×VGA, 1×HDMI;1× LVDS

USB2.0

4

USB3.0

4

COM

6×COM RS232

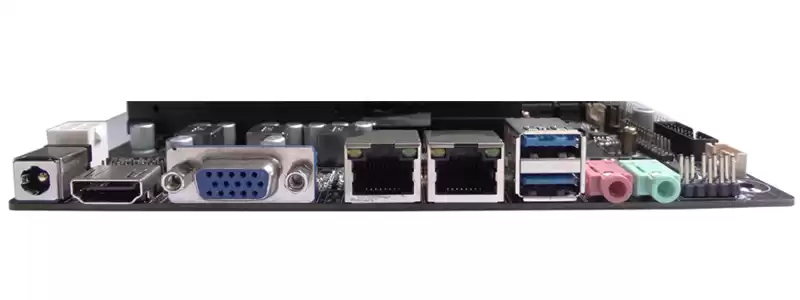

Backplane I / O

DC in,  HDMI,  GA,  2RJ45 LAN,  2USB3.0,  Line-out+Mic-in

Board I / O

4USB2.0,  2USB3.0,  6COM ,  1 front audio pin,  1 CLR_CMOS pin,  1 CPU fan power pint,

2 system fan power pint,  1 front panel pin,  1 buzzer pin

Expansion

1 MSATA,1 MINI PCIE

System

Support Windows(WIN XP,WIN 7,WIN 10 ...),Linux



Mechanical & Environmental

Power Supply

DC 12V

Heat Dissipation

Fan

Size(L×W)

170mm×170mm

Working Temperature

-15~55℃

Storage Temperature

-40~75℃

Environmental Humidity

0~90%air humidity,no condensation

Packing list

ITX-HM76DL268 motherboard×1; SATA cable×1



Order Information

ITX-HM76DL268-I3

i3 3110M CPU

ITX-HM76DL268-I5

i5 3320M CPU

ITX-HM76DL268-I7

i7 3520M CPU



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
