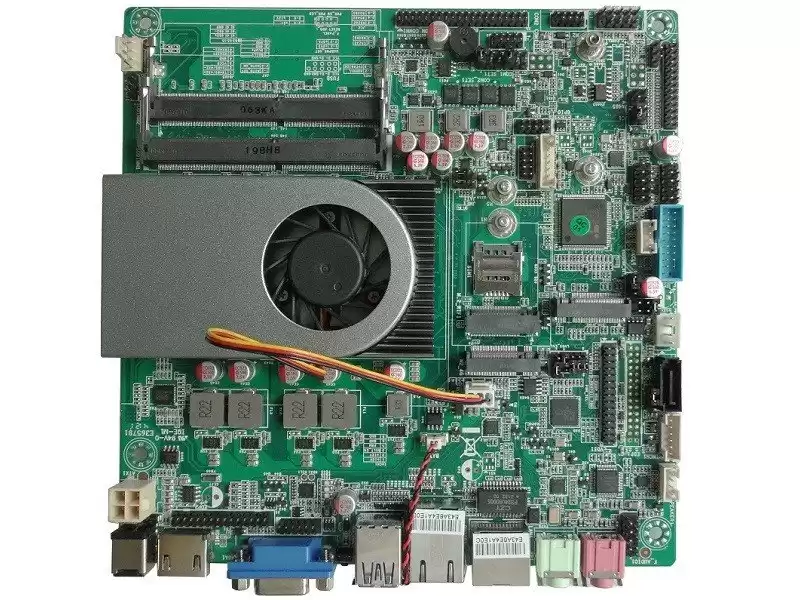

Mini ITX Thin Industrial Motherboard Soldered onboard Intel® 8th/10th generation U Series CPU 2LAN 6COM 8USB

ITX-C8DL268

Mini ITX Thin Industrial Motherboard,Soldered onboard Intel® 8th/10th generation U Series CPU,2LAN 6COM 8USB



Mini ITX Thin Industrial Motherboard Soldered onboard Intel® 8th/10th generation U Series CPU 2LAN 6COM 8USB



Product Introduction

Mini ITX Thin Industrial Motherboard with a soldered onboard Intel® 8th/10th generation U Series CPU, 2 LAN ports, 6 COM ports, and 8 USB ports is a powerful and compact solution designed for industrial applications. Mini ITX motherboards are known for their small size, making them ideal for applications with limited space. These motherboards are often used in industrial settings where space is a premium. Two LAN (Local Area Network) ports provide connectivity options for networking in industrial environments. This redundancy can be critical for ensuring uninterrupted communication and data transfer. Mini ITX Thin Industrial Motherboard with onboard Intel® 8th/10th generation U Series CPU, 2 LAN ports, 6 COM ports, and 8 USB ports is a reliable and compact solution tailored for industrial environments. Its robust features, including multiple communication ports and a soldered CPU, make it suitable for a wide range of industrial automation, control, and data acquisition tasks.



Features

■ Soldered onboard Intel® 8th/10th generation U Series CPU

■ 2×Gigabit LAN

■ VGA, HDMI, LVDS,EDP display interface

■ 6COM, 8USB(4USB3.0)

■ 8 bits GPIO

■ 3×M.2,support M.2SSD and WIFI

■ Thin board



Specification

CPU/GPU

Soldered onboardIntel® 8th/10th generation U SeriesCPU

memory

2×DDR4 SO-DIMM laptop slot,up to 32GB SDRAM

Storage

2×SATA,1×M.2

Sound

Realtek HD Audio

NIC

2×Gigabit LAN

Display Card

CPU integrated graphic

Display Interface

VGA, HDMI;LVDS; EDP

USB2.0

4

USB3.0

4

GPIO

8 bits(4 bit In, 4 bit Out)

COM

6COM RS232

BackplaneI / O

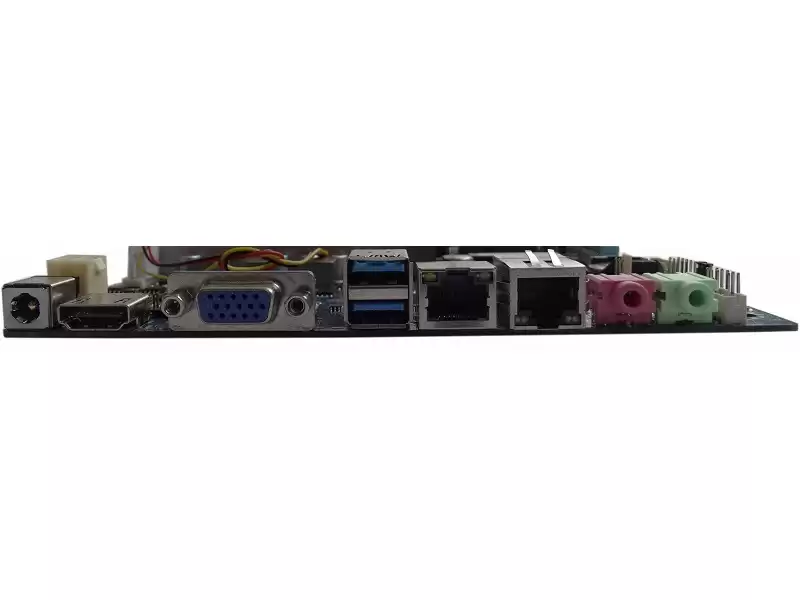

DC in, HDMI, VGA,  2USB3.0,  2 RJ45LAN, Line-out+Mic-in

BoardI / O

4USB2.0 , 2USB3.0, 6COM , front audio , CLR_CMOS , CPU fan power , SIM    System fan power ,GPIO, Front panel ,  Speaker, SIM Socket, PS/2 KB/MS, 4P DC in, LVDS, invert, EDP, LPT

Expansion

3×M.2

System

Support Windows(WIN 7, WIN 10...), Linux

Mechanical & Environmental

Power Supply

DC 12V

Heat Dissipation

Fan

Size(L×W)

170mm×170mm

Working Temperature

-15~55℃

Storage Temperature

-40~75℃

Environmental Humidity

0~90%air humidity,no condensation

Packing List

ITX-W8DL268 motherboard×1,  SATA data cable×1,  SATA power cable×1

Order Information

ITX-C8DL268-I3

Intel i3 8145UCPU, i3 10110U optional

ITX-C8DL268-I5

Inteli5 8257UCPU, i5 8259U, i5 10210U, i5 10310U optional

ITX-C8DL268-I7

Intel i7 10510U



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
