PFM Mini Kit Metal Ceramic Dental Porcelain Powder factory direct sale
The dental metal porcelain PFM Mini Kit is in the series of BAOT JC dental ceramic trial kits. The Mini Kit includes the basic types of ceramics, which can meet the basic requirements of making units.
The chemical composition of BAOT dental ceramic/porcelain powder is silicon oxide, aluminum oxide, potassium oxide, sodium oxide, zirconia, calcium oxide, boron oxide, etc. It is mainly introduced from potassium feldspar, and through catalysis, it crystallizes repeatedly to form garnet crystals, which have good biocompatibility, chemical stability, strength, and hardness suitable for oral structure and function.

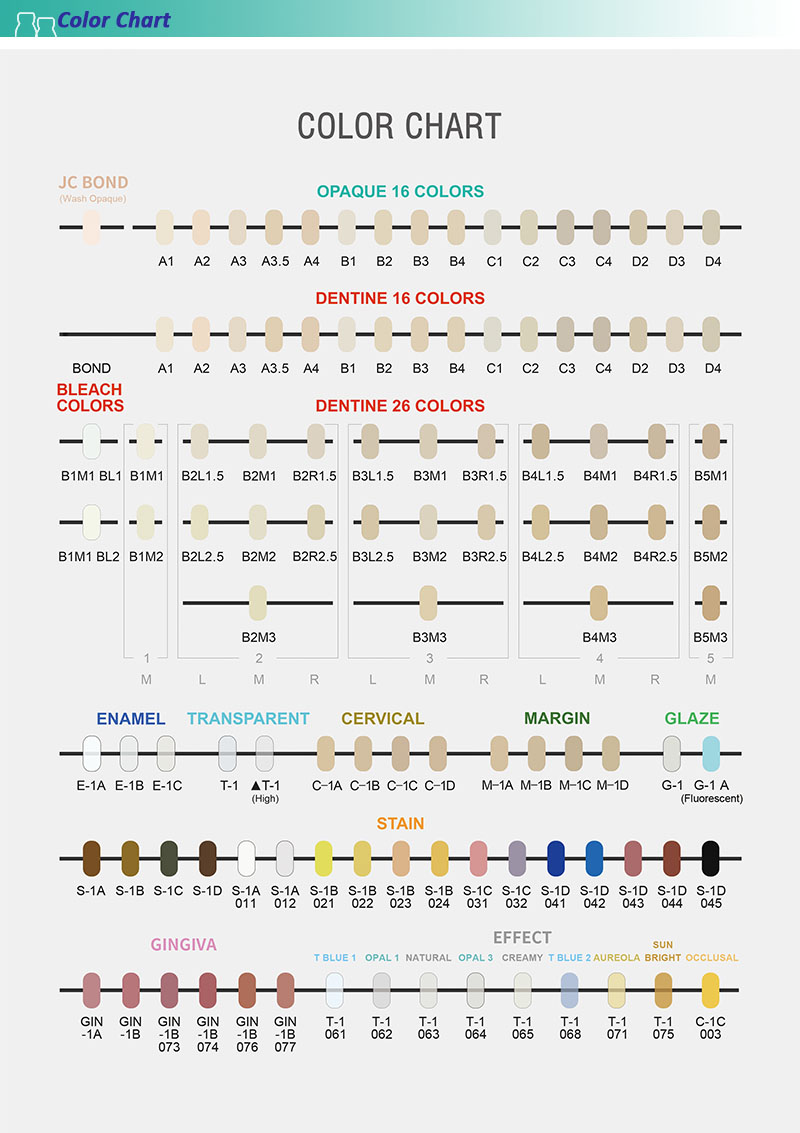

BAOT dental ceramic/porcelain powder is easy to build up, which is suitable for every dental technician. 16+26 VITA® classic shades satisfy your basic needs, while we also have the EFFECT series to meet more advanced aesthetic needs. All denture factories, dental labs, or individual orders are welcome.
PFM/Metal Porcelain Dental Porcelain Powder Dental Ceramics Mini Kit, factory direct sale
| Product Name |
Metal Ceramic PFM Mini Kit |
|
CTE*(10-6 · K-1)
|
9.5-10.5
|
|
Glass Transition (°C)
|
590
|
|
Flexural Strength (MPa)
|
106
|
|
Chemical Solubility(μg·cm-2)
|
20
|

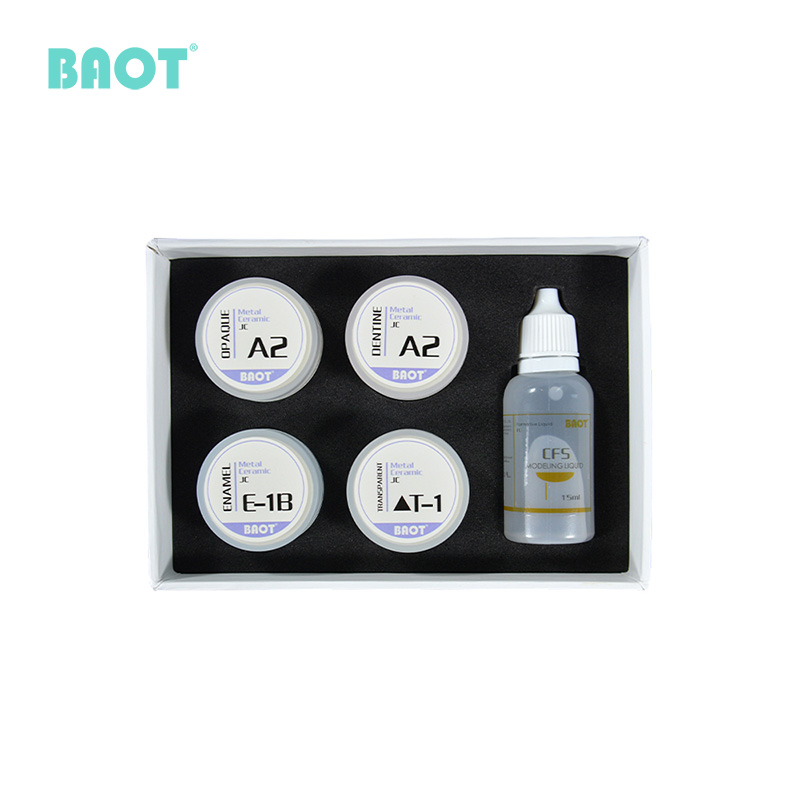

| Shades |
Opaque : A2 (2g/pc)
Dentine: A2 (5g/pc)
Enamel: E-1B (5g/pc)
Transparent: ▲T-1 (5g/pc)
Modeling Liquid:CFS (15ml/pc)
|
*CTE(Coefficient of thermal expansion)
Firing Parameters for Carlibrated Furnaces
| Condition |
Firing |
| |
Liner |
Body* |
Add on |
Glaze & Stain |
| Drying temp (℃) |
500 |
500 |
500 |
500 |
| Drying time (min) |
2 |
3 |
2 |
2 |
| Heating time (℃) |
2 |
3 |
2 |
2 |
| Heating rate (℃/min) |
50 |
50 |
50 |
50 |
| Firing temp (℃) |
960 |
920 |
910 |
890 |
| Holding time (min) |
1 |
1 |
1 |
1 |
| Cooling time (min) |
4 |
4 |
4 |
4 |
| Cooling temp (℃) |
550 |
550 |
550 |
550 |
| Vacuum start (℃) |
500 |
500 |
500 |
- |
| Vacuum end (℃) |
960 |
920 |
910 |
- |
NOTE:
-
- *"Body" includes Cervical, Opacious Dentin, Dentin, Enamel, Transparent, Effect, Gingiva.
- Our recommendation for firing temperature is based on numerous tests.
- These firing parameters may be adjusted according to the peculiarities of different furnaces.
- It is essential to test firing before production.
- Please refer to "Instruction for Use" for details.
PFM Dental Porcelain Powder Dental Ceramics Mini Kit
BAOT Biological Technology Co., Ltd. has been established for decades. We have strong R&D capabilities, which are driven by a group of scientists and engineers to ensure product portfolios catch up with the dentistry trends. Modernized production lines of dental materials and equipment, such as dental ceramic powder, zirconia blocks, lithium disilicate glass ceramics, press ingot, milling machines, etc. guarantee strict quality control and fast delivery.
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer based in China. With more than 20-year experience in materials and equipment, we are specialized in manufacturing dental materials and equipment, such as dental porcelain, zirconia blocks, lithium disilicate glass ceramics, press ingot, milling machines, etc.
Q: Could we print our own logo?
A: Yes, we supply OEM/ODM service.
Q: What's the payment term?
A: We accept Western Union, credit cards, bank transfers, visas, etc.
Q: Can I get samples?
A: Yes, we accept the sample order.
Q: Can I customize products?
A: Of course, we can build a new mold to produce the products for you. Mold cost will depend on the quantity.
Q: How long is the delivery time?
A: Delivery time will be up to the purchasing quantity. Normally, It takes 3~5 days for sample and 10~15 days for mass order.
PFM Dental Porcelain Powder Dental Ceramics Mini Kit
