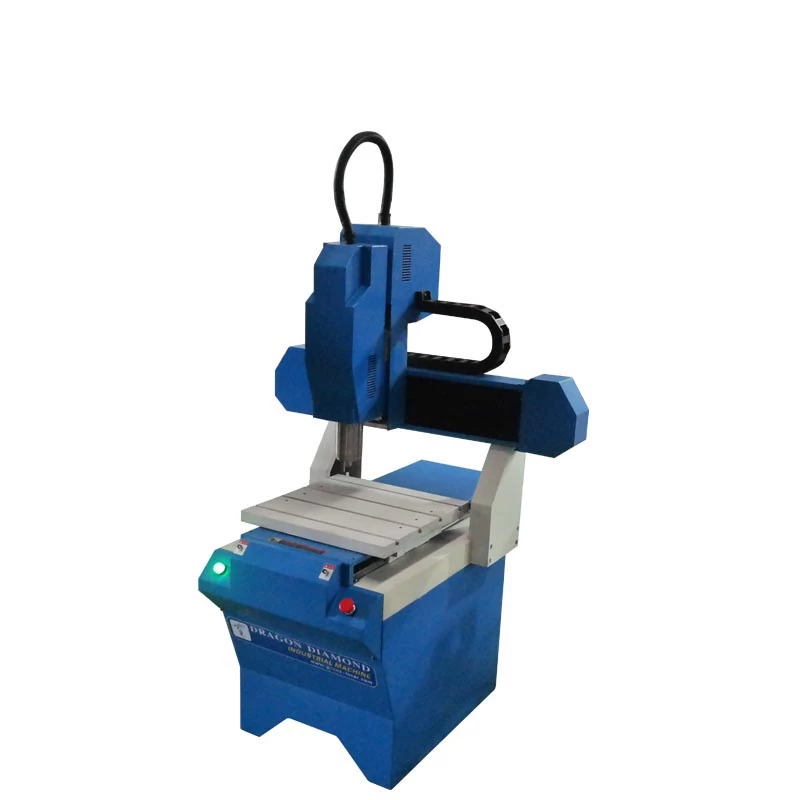

Mini Metal Stone Cnc Engraver Cutting Machine
PRODUCT PARAMETER
|
NO.
|
Model
|
Lz-4040 Mini CNC Router
|
|
1
|
Working Area
|
400x400x80mm
|
|
2
|
Packing Size
|
780x700x1300mm
|
|
3
|
Table Size
|
540x540mm
|
|
4
|
Spindle
|
1.5KW Water Cooling Spindle
|
|
5
|
Cooling System
|
Water Cooling
|
|
6
|
Control System
|
NC Studio Controller
|
|
7
|
Inverter
|
Sunfar
|
|
8
|
X Y Z Transmission
|
Germany NEFF Ball Screws
|
|
9
|
X Y Z Guide Rail
|
Sqare Rail
|
|
10
|
Working Table
|
Wholly Iron Cast
|
|
11
|
Drive System
|
Stepper motor
|
|
12
|
Machine Structure
|
Welded steel T type structure as a whole
|
|
13
|
Spindle Speed
|
24000RPM
|
|
14
|
Suitable Software
|
Artcam, Type3, Ucancam V9, etc
|
|
15
|
Traveling Speed
|
7200 mm/min
|
|
16
|
Engraving speed
|
5000 mm/min
|
|
17
|
Reposition Accuracy
|
0.025mm
|
|
18
|
Command Code
|
G Code*.HPGL
|
|
19
|
Voltage
|
AC 220V±10%, 50Hz.
|
PRODUCT FEATURES
1.High quality Wholly cast steel Lathe bed, stronger and more stable.
2.Powerful stepper motor driver, Taiwan Hiwin guide rails, running smoothly, high accuracy
3.Taiwan TBI ballscrew or Gear wheel/ rack transmission, high precision.
4.Water cooling spindle (24000rpm), apply to long time processing of wood products.
5.Well compatibility software Type 3/Artcam/ UcanCAM etc.
OPTIONAL PARTS
1. DSP operation system(can make machine work without connecting computer).
2. Other spindle power: 2.2KW available.
3. Server motor.
