Mini OLED 1.3 Inch SPI Interface 128X64 Resolution Cheap Price
It is a mini OLED display product with 1.3 inch display size. And is able to display both blue or white color monochromely. It has 128x64 pixel which is also its resolution. To drive the display, it only needs a 3.3v power source. And its brightness could reach more than 200 cd/m2.
1.3 inch mini OLED display has many advantages such as low voltage input and power consumption, easy programming, high contrast and brightness etc.
Small Size OLED Display
Product Parameters
| Display Type |
OLED |
| Display Size |
1.3 Inch |
| View Angle |
IPS |
| Dot Number |
128x64 |
| AA |
29.42x14.7mm |
| Backlight Color |
White/Blue |
| Interface |
I2C/SPI |
| Control IC |
SH1106G |
| Pixel Size |
0.21x0.21mm |
| Pixel Pitch |
0.23x0.23mm |
| Connector |
FPC |
| Working Temp. |
-20-70°C |
| Working Voltage |
3.3V |

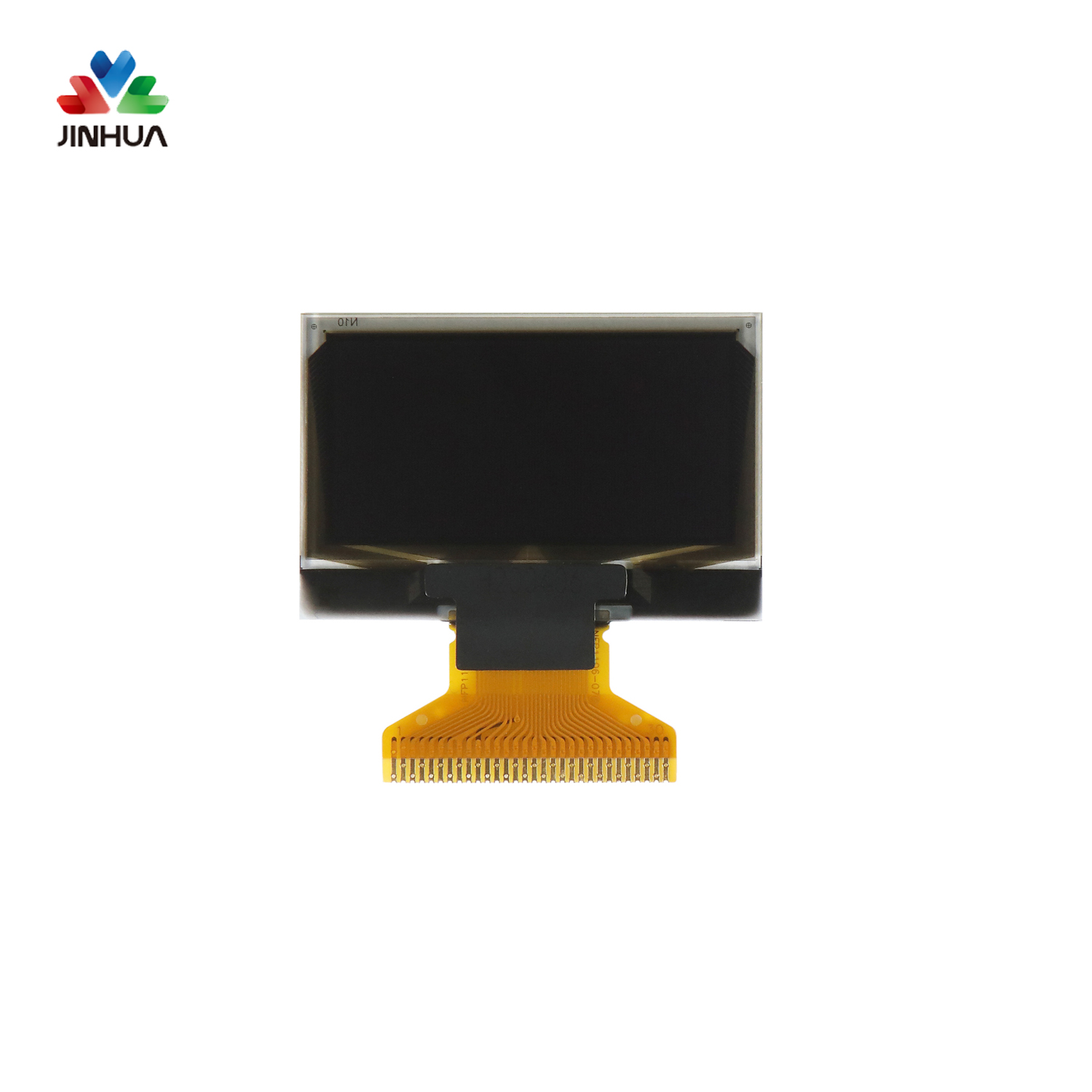

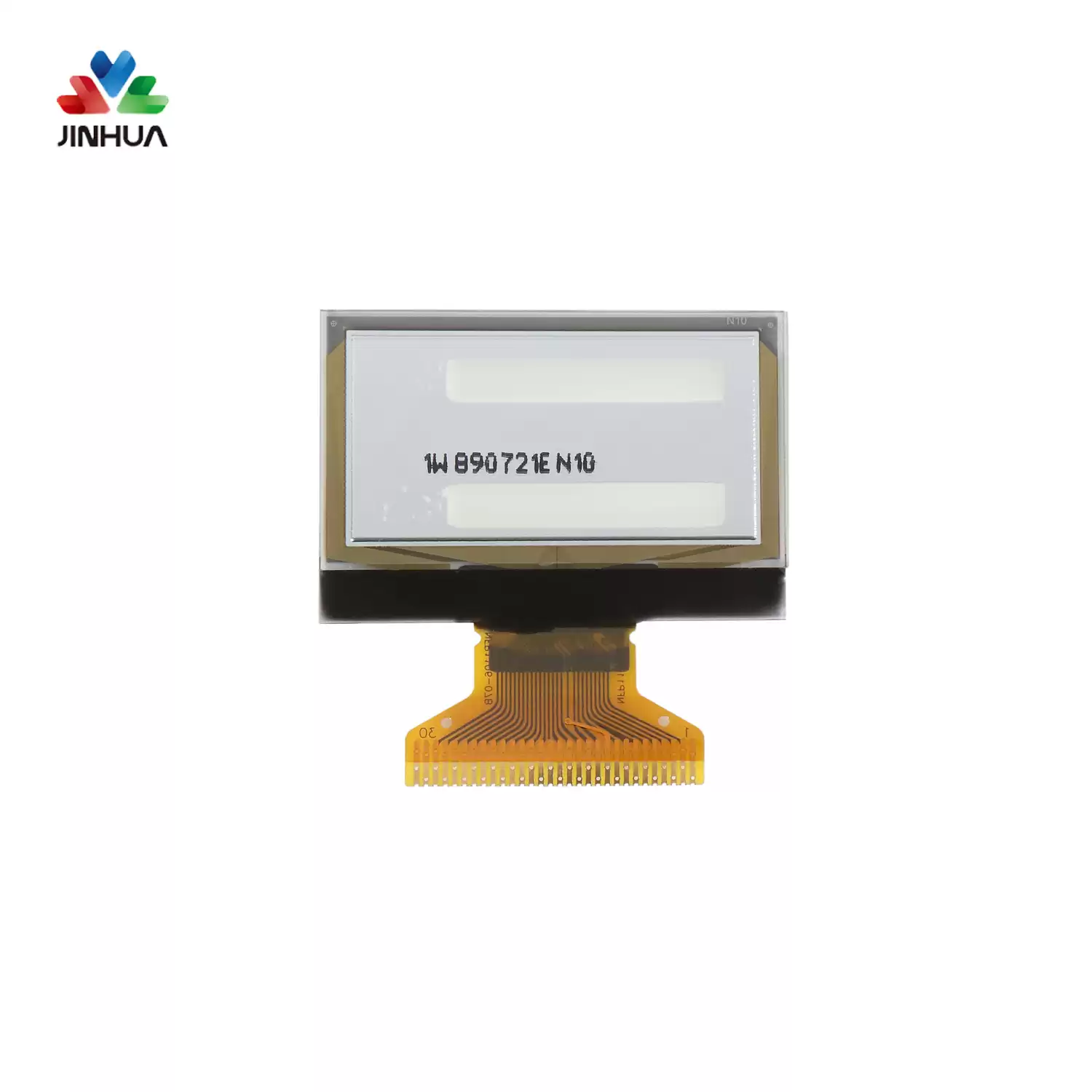

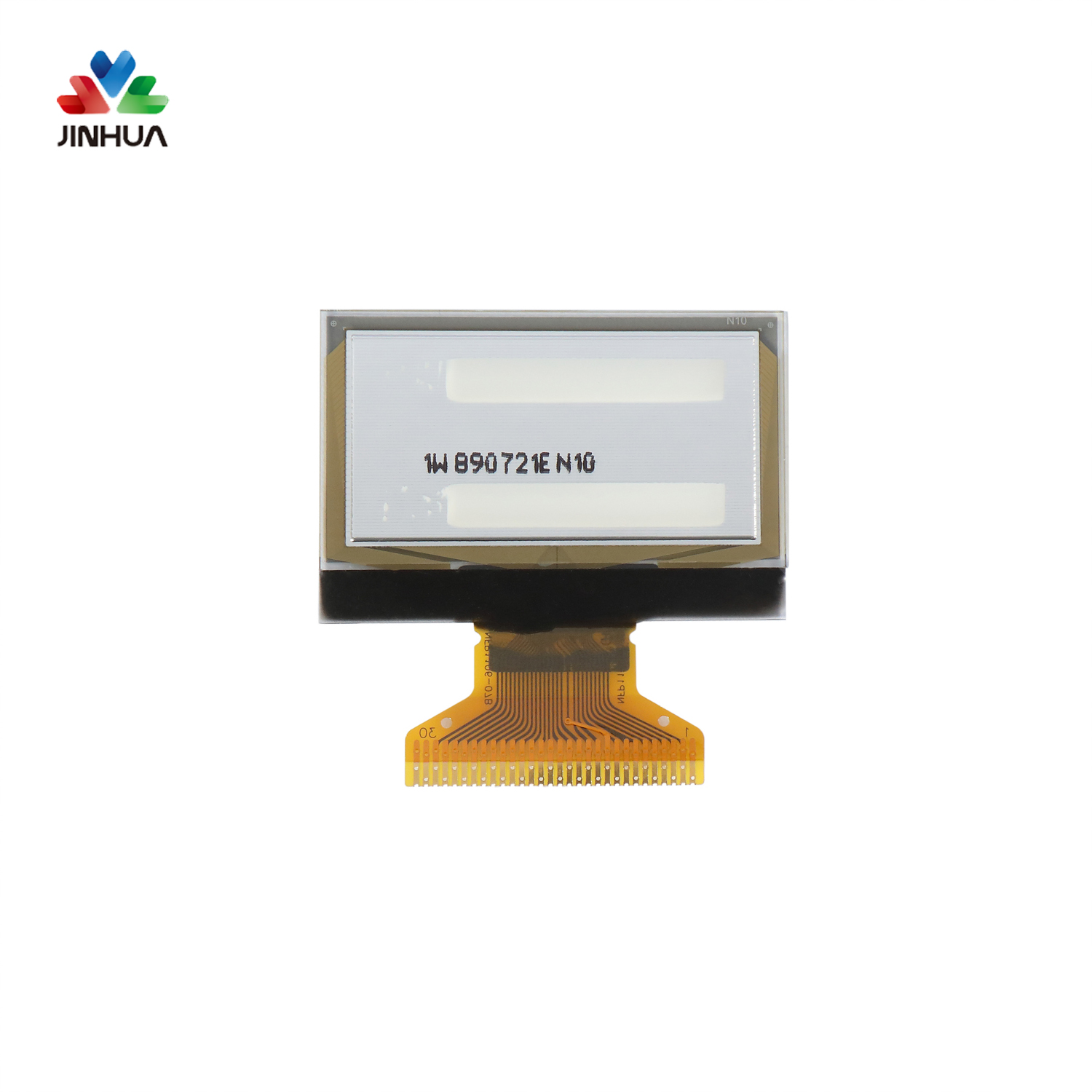

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Mini OLED Display displays are normally small size (up to 3" typically) and are used to display digit or character data or small graphic icons: they are being applied to mobile phone sub displays, MP3 players, smart watch ,smart band, etc.
