Introduction

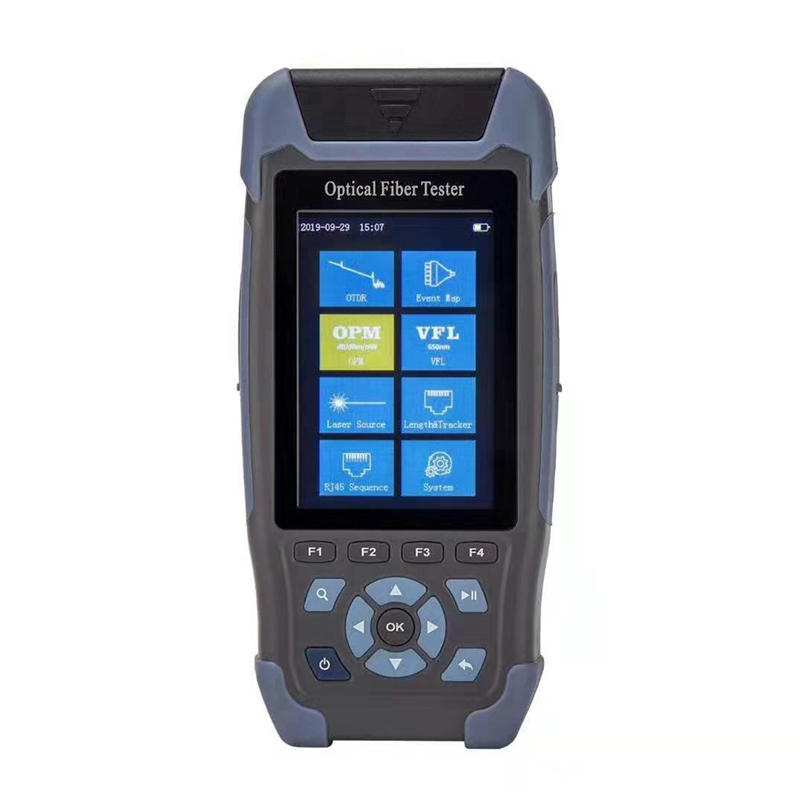

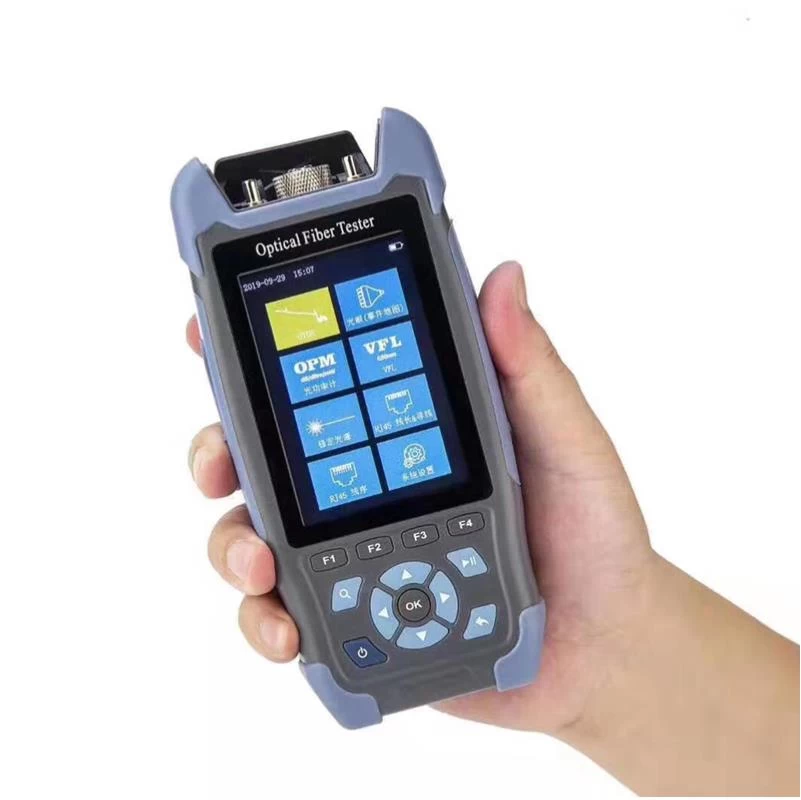

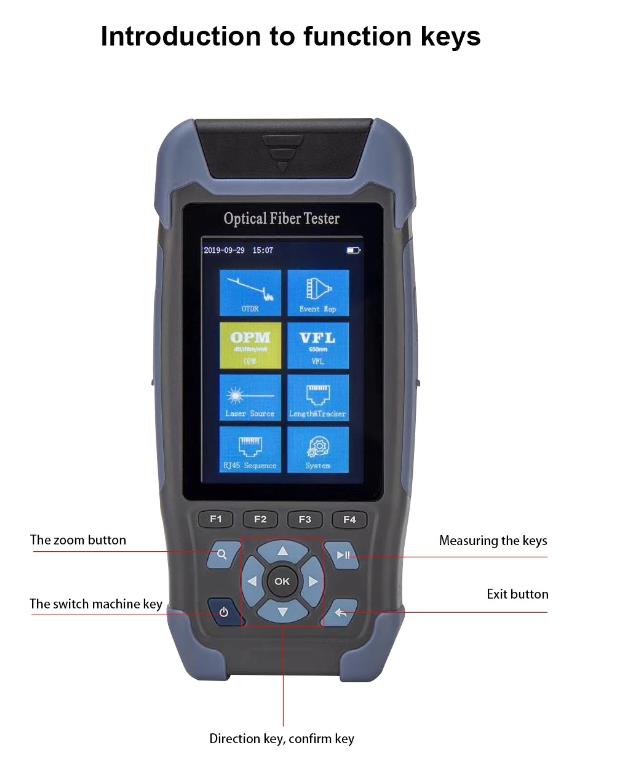

Optical Fiber Tester Mini OTDR S710 is a unique mainly designed for construction and maintenance of telecommunication and CATV networks. It can be widely used in engineering construction,maintenance test and emergency repair of all fiber optics related systems. Comparing with a regular OTDR,it is more compact in size and easier for field use.
9 Functions in 1 device
-
OTDR
-

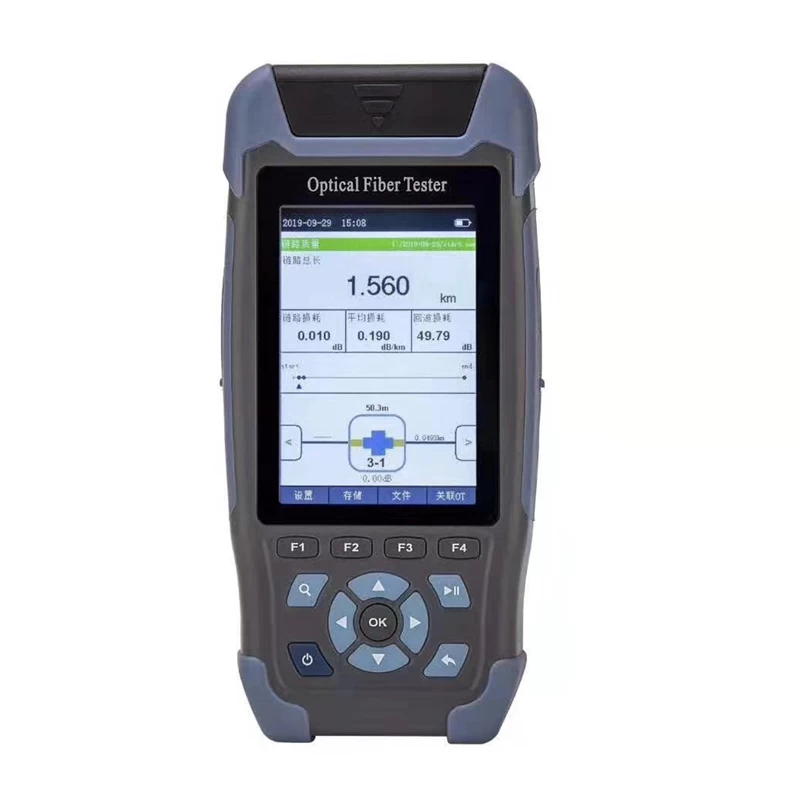

EVENT MAP (similar to EXFO iLOM)
-
Optical Light Source
-
Optical Power Meter
-
Visual Fault Locator
-

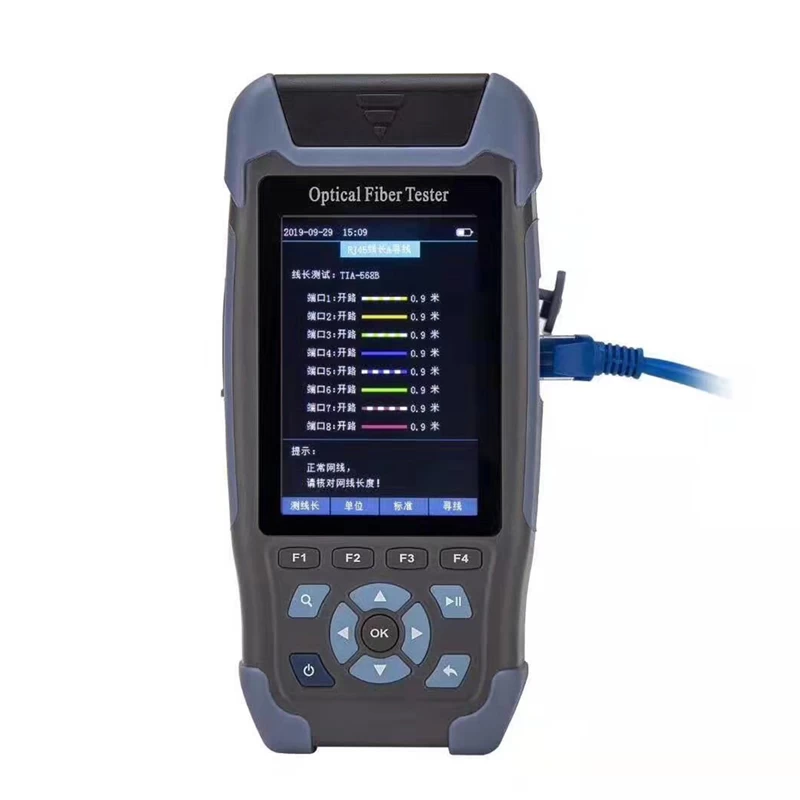

RJ45 Ethernet Cable Sequence
-
Ethernet Cable Distance
-
Ethernet Cable Tracker
-
LED Light
Technical Specifications
|
Mini-Pro OTDR
|
|
Model
|
S710
|
|
Wavelength
|
1310nm/1550nm±20nm
|
|
Fiber Type
|
G.652
|
|
Dynamic Range
|
24/22 dB
|
|
Event Blind Zone
|
3m
|
|
ATT Blind Zone
|
8m
|
|
Test Range
|
500m~60km
|
|
Pulse Width
|
3ns~10us
|
|
Ranging accuracy
|
±（1m+ Sampling interval
+0.005％×Test
distance）
|
|
Loss accuracy
|
±0.05dB/dB
|
|
Sampling Points
|
16k~128k
|
|
Sampling resolution
|
0.05m~8m
|
|
Reflection accuracy
|
±3dB
|
|
Data Storage
|
Internal：≥600；External：TF Card
|
|
Laser Safety Level
|
Class Ⅱ
|
|
File format
|
SOR Standard file format
|
|
Connector
|
FC/UPC（Interchangeable SC、ST）
|
|
OPM
|
|
Wave Range
|
800nm~1700nm
|
|
Interface Type
|
Universal Joint FC/SC/ST
|
|
Test Range
|
-50dBm～+26dBm
|
|
Uncertainty
|
±5%
|
|
Frequency Identification
|
CW/270/330/1k/2kHz
|
|
Calibration wavelength
|
850/980/1300/1310/1490/1550/1625/1650nm
|
|
LS
|
|
LD Type
|
FP-LD
|
|
Wavelength
|
1550nm±20nm
|
1310nm/1550nm±20nm
|
|
Output Power
|
≥-5dBm
|
|
Modulation Frequency
|
270/330/1k/2kHz
|
|
Stability
|
CW，±0.5dB/15min
（Test after 15 minutes of preheating）
|
|
Connector
|
FC/UPC（Interchangeable SC、ST）
|
|
VFL
|
|
Wavelength
|
650nm±20nm
|
|
Output Power
|
≥10mW
|
|
Mode
|
CW/1Hz/2Hz
|
|
Connector
|
FC/SC/ST
|
|
RJ45
Cable Length Measurement
|
|
Test Range
|
300m
|
|
Other
Parameters
|
|
Display
|
3.5-inch Color LCD
|
|
Data Interface
|
Micro USB
|
|
External storage
|
TF Card
|
|
Power Supply
|
Polymer Li-Battery：3.7V，4000mAh
Adapter：5VDC，2A
|
|
Battery Life
|
Standby＞20h；Measuring time＞12h
|
|
Operating Temperature
|
-10℃～+50℃
|
|
Storage Temperature
|
-40℃～+70℃
|
|
Relative Humidity
|
0～95％Non
Condensing
|
|
Size
|
173mm×82mm×37mm
|
|
Weight
|
≤350g
|
|
Functions:
OTDR/EVENT
MAP/OPM/LS/VFL/RJ45
Sequence/RJ45
Cable Tracker (Additional
purchase detector)/RJ45 Line length/Flashlight
|
Note:
1. Test
temperature is 25℃+2℃, maximum pulse width, the average time is more than 3
minutes.
2. Test
conditions of Event Blind Zone are minimum range, minimum pulse width,
reflection loss of optical fiber end (> 45dB), typical value.

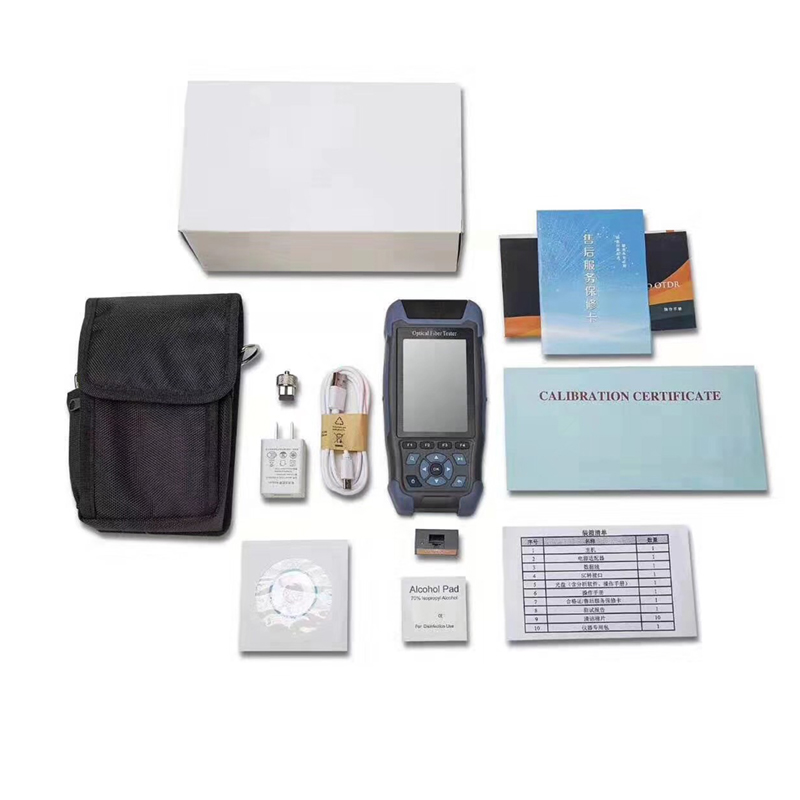

Configuration List
|
NO.
|
NAME
|
QUANTITY
|
Remarks
|
|
1
|
Host
|
1
|
Battery
included
|
|
2
|
Adapter
|
1
|
|
|
3
|
Data
Line
|
1
|
|
|
4
|
CD-ROM
(Analysis software/User’s Manual)
|
1
|
|
|
5
|
User’s
Manual
|
1
|
|
|
6
|
SC/UPC
|
1
|
|
|
7
|
Qualification
Certificate/ Service Guarantee Card
|
1
|
|
|
8
|
Calibration
Certificate
|
1
|
|
|
9
|
Clean
Cotton Slices
|
10
|
|
|
10
|
Instrument
Backpack
|
1
|
|
