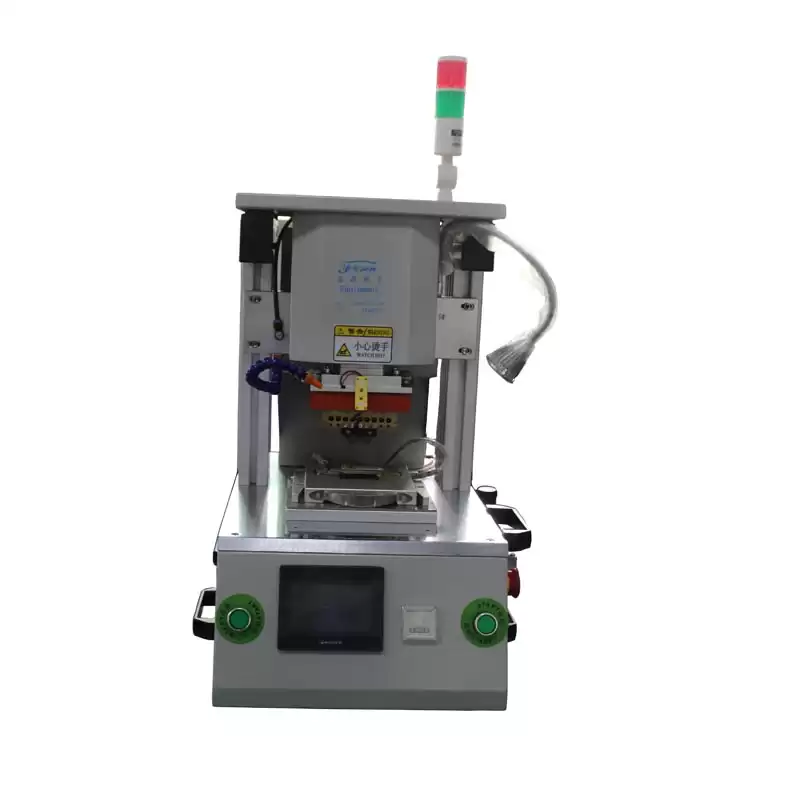

Min Programmable Hot Bar Soldering Machine
DESCRIPTION:
Our Hot Bar Soldering Machines have been used over the years for various applications, including soldering in manufacturing of electronic equipment or electronic components, ACF bonding, wire welding, and thermo-compression bonding.
FEATURES:
Hot Bar Soldering Machine ;is an excellent tool and extremely effective in bonding components and parts that are different and not easy to stick together. Classic hot bar, pulse bonding, resistance soldering equipment applications include flexible circuits, ribbon cables, wires, flex to PCB, flex to LCD, and thermo compression bonding of gold ribbon as found in the telecommunications, computer, automotive, display industries and other.
SPECS:
|
Machine size
|
530×440×700mm
|
|
Working area
|
Max 150*150mm
|
|
Machine weight
|
60Kg
|
|
Working air pressure
|
0.6-0.8Mpa
|
|
Fixture quantity
|
1
|
|
Thermode head size
|
Max 80*8mm
|
|
Welding precision
|
pitch 0.2mm
|
|
Pressing time
|
1~99.9s
|
|
Temperature settings
|
RT~500℃ tolerance ±5℃
|
|
Welding pressure
|
1~20Kg
|
|
Temperature settings
|
Two
|
|
Working environment
|
10-60℃,40%-95%
|
|
Power supply
|
AC220V±10% 50HZ,2200W
|
;

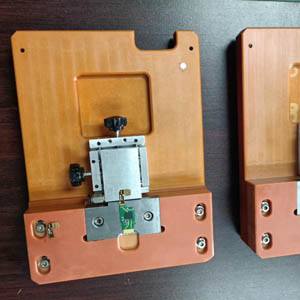

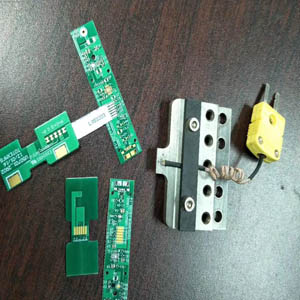

Customized Thermode and Fixtures:
; ;
; ;

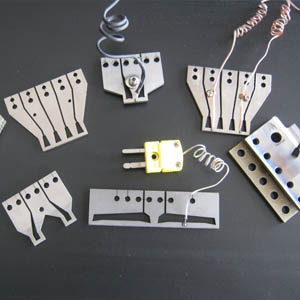

Thermode Head Introduction:
Molybdenum alloy head to ensure temperature stability, fast heating speed and long service life.
The level of soldering head is adjustable , to ensure uniformpart assembly processing.
Digital display to control temperature,easy and clear.
With digital pressure meter, can be preset pressure range.
Special welding materials.
It is equipped with precise PID control, phase Angle instead of pulse drive.
Little vibration, low noise, no voltage fluctuation.
Molybdenum alloy soldering head instead of traditional titanium alloy, warmmingfaster, good coefficient of heat transfer, wear-resisting.
APPLICATION:

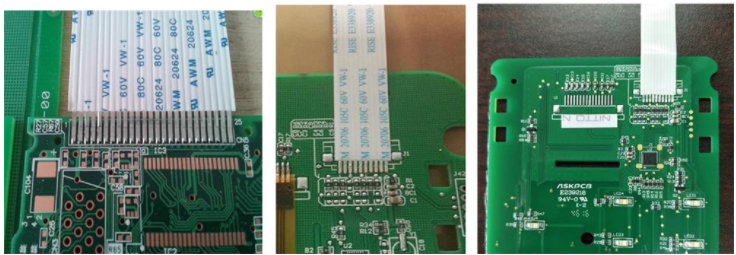

During hot bar soldering, a thermode is heated to a specific temperature by a pulse heat power supply. The thermode applies sufficient heat to cause the solder to melt and flow, after which the components are cooled under pressure, thereby creating an electro-mechanical bond between the two components. Hot Bar Soldering Machine is available for FFC to PCB soldering, FPC to PCB soldering, wires to PCB soldering, copper to copper soldering, ect.
