Mini Rail System Landscape Portrait Mounts Mounting Rail Aluminum Solar Panel Mounting trapezoidal Metal Roof Mounting With EPDM

Mini Rail System Landscape Portrait Mounts Mounting Rail
Scope of application Pitched roofs with trapezoidal sheet
metal or sandwich panels
Roof inclination: 5-75°
Fastening type / roof fixture Screws in roofing with self-tapping thin
sheet screws


  • Tilt Angle

Mini Rail System Landscape Portrait Mounts Mounting Rail Aluminum Solar Panel Mounting trapezoidal Metal Roof Mounting With EPDM

mini rail solar system for metal roof

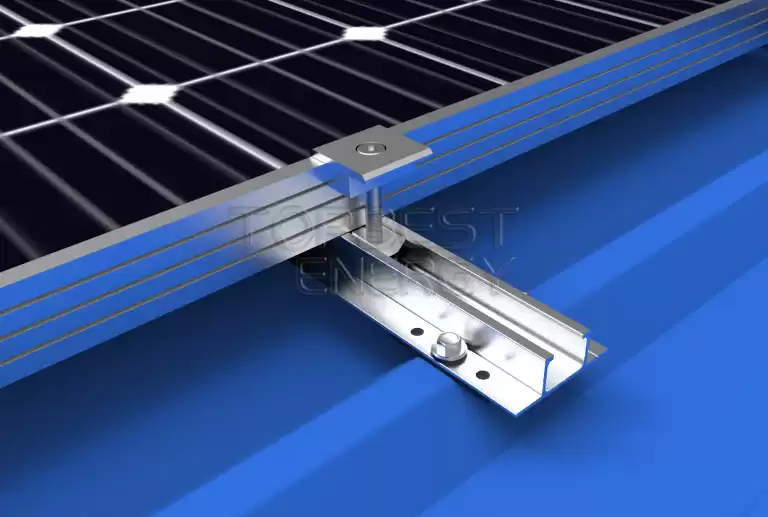

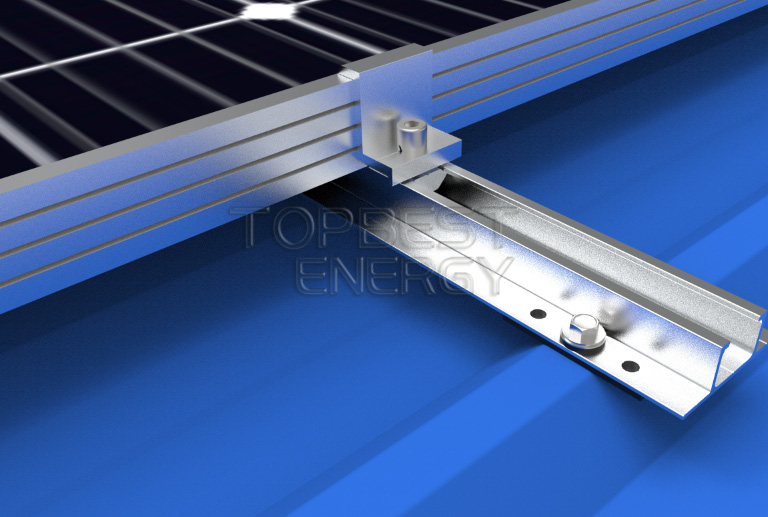

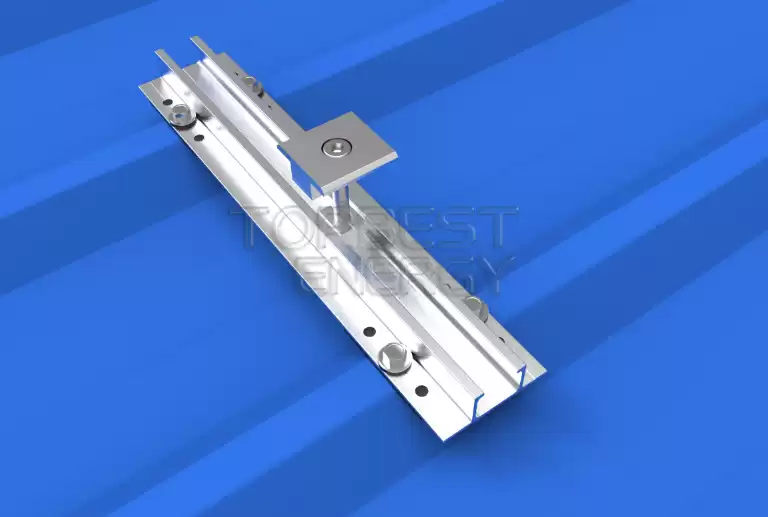

The Mini Rail mounting system for photovoltaic assemblies was developed specifically for trapezoidal sheet metal. It allows easy changing of the module orientation thanks to the universal module clamps which are rotatable by 90°, is extremely lightweight and comes stacked completely on pallets.

Mini Rail System Landscape Portrait Mounts


Mini rail for trapezoidal Metal Roof Application:

Scope of application: Pitched roofs, with trapezoidal sheet metal or sandwich panels.
Fastening type / roof fixture: Screws in roofing with self-tapping sheet screws
Requirements: Sheet thickness: > 0.5 mm (steel and aluminium)

Maximum bead width: 101 - 175 / 202 - 350 mm
Distance from boreholes to bead edge: > 8.5 mm
Module frame height: 30 - 50 mm
Module orientation: Vertical or horizontal
Material: Aluminium (EN AW-6063 T66 / EN AW- 6082 T6); EPDM
mini rail for trapezoidal Metal Roof

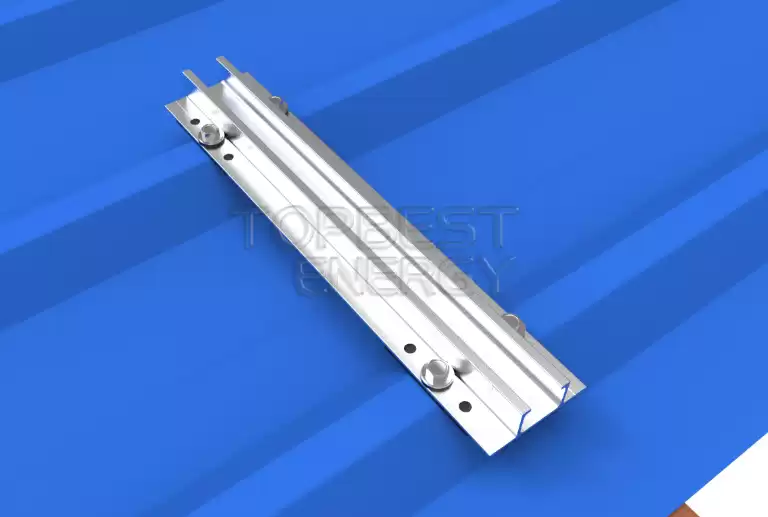

PV Mini mounting rail Features:

• Widely used for both crystalline modules.
• Easy & quick installation.
• Only 3 kinds of components in whole system fixation.
• All system components are made with high quality aluminum & stainless steel.
PV Mini mounting rail
