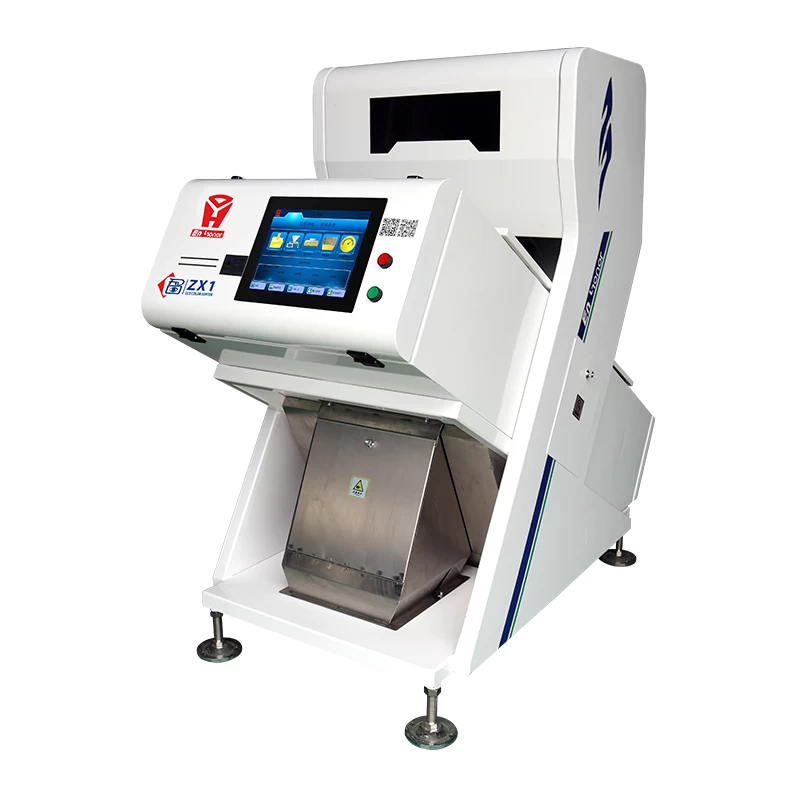

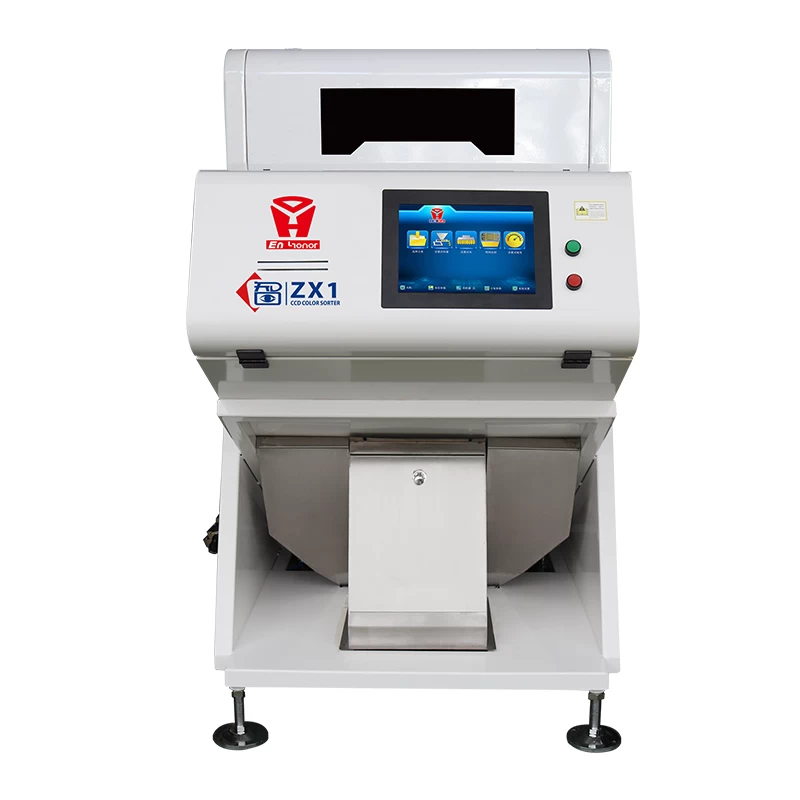

Mini RGB Color Sorter for Nuts

1 chute to 12 chute available. 63 channel to 756 channels . Offering ideal solution for almond, Cashew nuts, Peanut, Sunflower kernals , almond nut , pine nut, groundnuts , macadamia nut etc


  • Price rangeUSD 2000-20000/set
  • Channels63
  • ConditionsBrand New
  • ApplicationPeanuts, Cashew nuts, ect
  • BrandEnhonor
  • Trichromatic RGB CCD5400+ Pixel

Features :

Special Chute Design:

vacuum surface plating .hard to wear and corrosion resistance

 High-quality distinction system:

Super High Definition  full color 5400+Pixels CCD image  sensor distinguishing 0.01mm area

Artificial Intelligence Technology:

Image capturing & processing with AI tech, setting backup, mode backup & transfer available

Intelligent Operation  surface:

12 inch interface with user-friendly operation system.

Adjustable light source tech :

advanced & adjustable LED light source ensure the accurate obtaining. Special design make it long term using, low energy consumption and perfect performance, no need additional radiator

Original imported Ejector:

much more stable , working  more than 12 billion  times, easy maintenance

Dust cleaning system:

 Special design and dust  absorption design with  better surrounding for  sorting.


Technical data :


Model No. ZX1 ZX2 ZX4 ZX6 ZX8 ZX10 ZX12
Channel  63 126 252 378 504 630 756
Capaciaty t/h 0.6~1 1~2 3~6 5~8 9~12 10~14 12~16
Sorting Accuracy ≥99.99% ≥99.99% ≥99.99% ≥99.99% ≥99.99% ≥99.99% ≥99.99%
Carryover  8:1 8:1 8:1 8:1 8:1 8:1 8:1
Voltage V AC200-240V 50/60Hz AC200-240V  50/60Hz AC200-240V 50/60Hz AC200-240V  50/60Hz AC200-240V  50/60Hz AC200-240V  50/60Hz AC200-240V  50/60Hz
Rated Power KW 1.5 1.8 2.6 3.6 4.6 5.5 ﹤7
Air Pressure MPa 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8
Air Consumption/min 1.0 2.0 4.0 5.5 6.5 8.0 8.0
Dimensionmm
L x W x H
910X1610X1545 1224X1610X1620 1870X1595X2040 2528X1595X2040 3152X1595X2040 3910X1595X2040 4668X1595X2040
Weight kg 450 700 1200 1500 1800 2200 2550


Applications :


Product Tags nuts color sorter          nuts ccd color sorter          nuts color sorter machine          cashew nut color sorter          macadamia nuts color sorter          almond nuts color sorter          brazil nuts color sorter          nut sorter          macadamia nut sorter
