Features :
Special Chute Design:
vacuum surface plating .hard to wear and corrosion resistance
High-quality distinction and sensor system:
Super High Definition full color 5400+Pixels CCD image sensor distinguishing 0.01mm area
AI Technology:
Image capturing & processing with AI tech, setting backup, mode backup & transfer available
Intelligent Operation surface:
12 inch interface with user-friendly operation system.
Adjustable light source tech :
advanced & adjustable LED light source ensure the accurate obtaining. Special design make it long term using, low energy consumption and perfect performance, no need additional radiator
Original imported Ejector:
much more stable , working more than 12 billion times, easy maintenance
Dust cleaning system:
Special design and dust absorption design with better surrounding for sorting.
Technical data :
|
Model No.
|

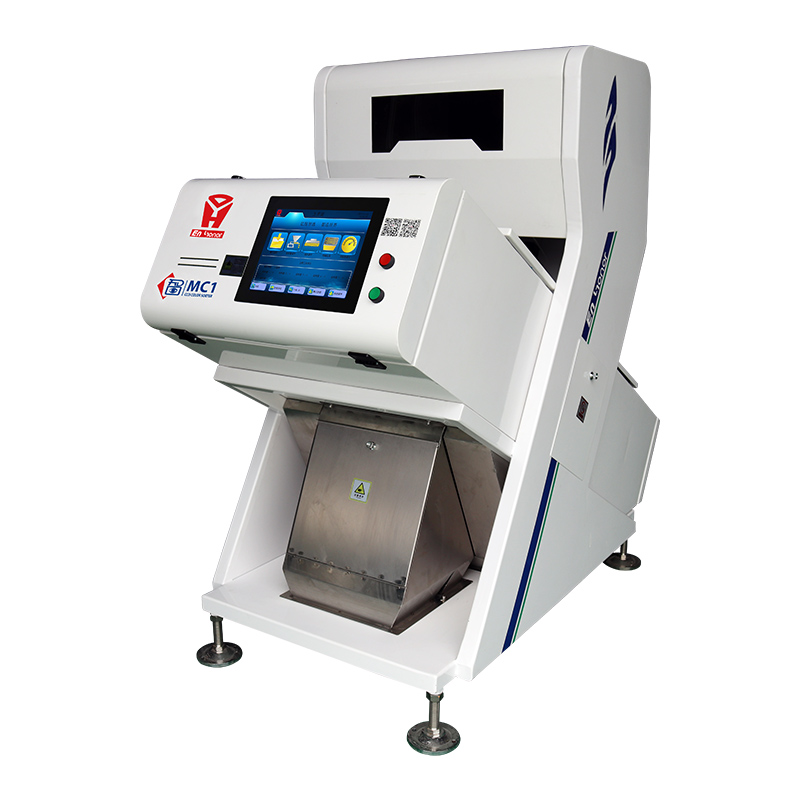

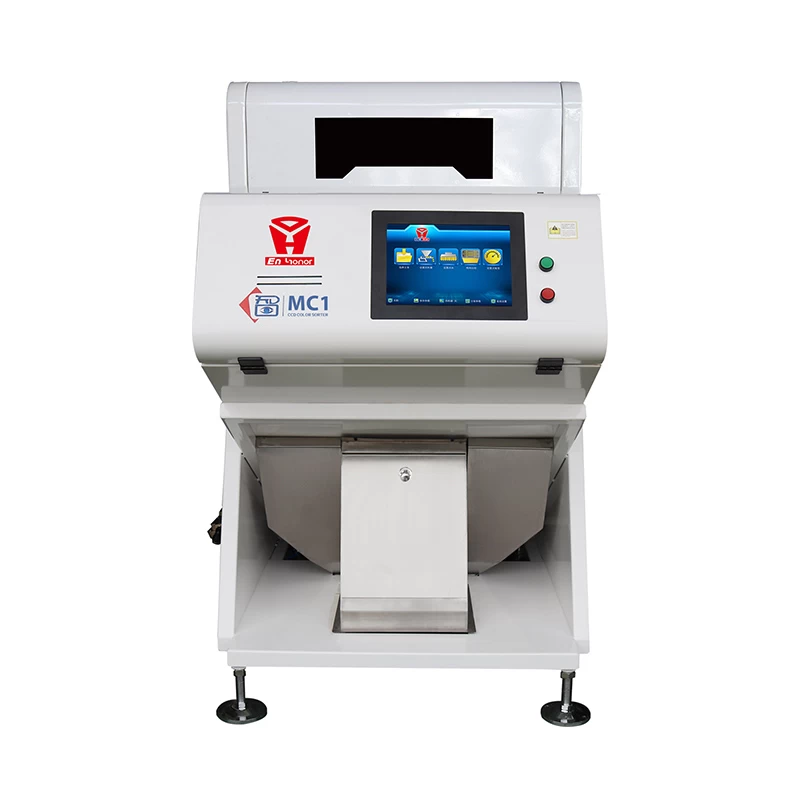

MC1
|
MC2
|
MC4
|
MC6
|
MC8
|
MC10
|
MC12
|
|
Channel
|
63
|
126
|
252
|
378
|
504
|
630
|
756
|
|
Capaciaty （t/h）
|
0.6~1
|
1~2
|
3~6
|
5~8
|
9~12
|
10~14
|
12~16
|
|
Sorting Accuracy
|
≥99.99%
|
≥99.99%
|
≥99.99%
|
≥99.99%
|
≥99.99%
|
≥99.99%
|
≥99.99%
|
|
Carryover
|
﹥8:1
|
﹥8:1
|
﹥8:1
|
﹥8:1
|
﹥8:1
|
﹥8:1
|
﹥8:1
|
|
Voltage （V）
|
AC200-240V 50/60Hz
|
AC200-240V 50/60Hz
|
AC200-240V 50/60Hz
|
AC200-240V 50/60Hz
|
AC200-240V 50/60Hz
|
AC200-240V 50/60Hz
|
AC200-240V 50/60Hz
|
|
Rated Power （KW）
|
﹤1.5
|
﹤1.8
|
﹤2.6
|
﹤3.6
|
﹤4.6
|
﹤5.5
|
﹤7
|
|
Air Pressure （MPa）
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
|
Air Consumption（㎥/min）
|
﹤1.0
|
﹤2.0
|
﹤4.0
|
﹤5.5
|
﹤6.5
|
﹤8.0
|
﹤8.0
|
|
Dimension（mm）
（L x W x H）
|
910X1610X1545
|
1224X1610X1620
|
1870X1595X2040
|
2528X1595X2040
|
3152X1595X2040
|
3910X1595X2040
|
4668X1595X2040
|
|
Weight （kg）
|
450
|
700
|
1200
|
1500
|
1800
|
2200
|
2550
|
|
Applications :
