A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. Rotary evaporation is most often and conveniently applied to separate "low boiling" solvents such a n-hexane or ethyl acetate from compounds which are solid at room temperature and pressure. However, careful application also allows removal of a solvent from a sample containing a liquid compound if there is minimal co-evaporation (azeotropic behavior), and a sufficient difference in boiling points at the chosen temperature and reduced pressure.

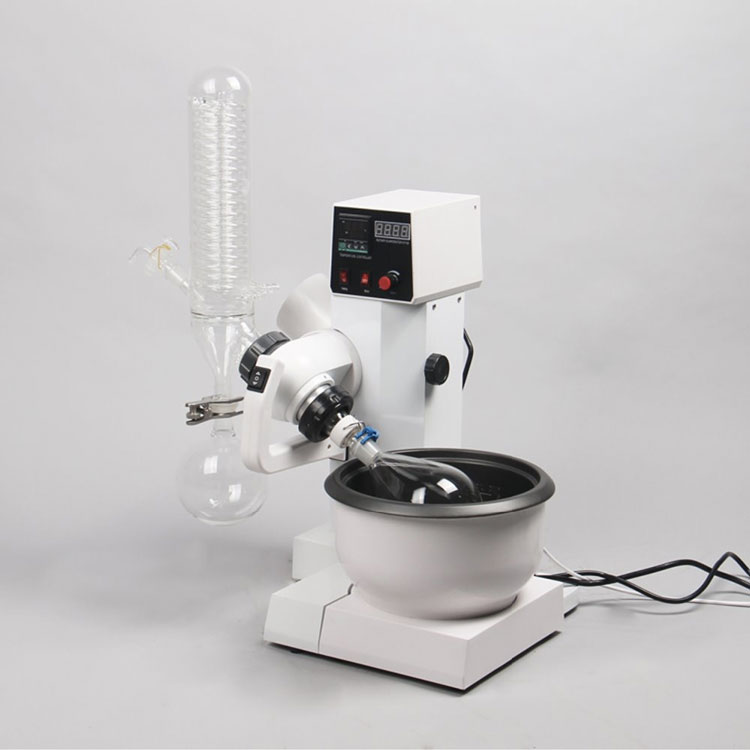

The most cost effective model with MOTOR lift for all standard applications: simple stracture, easy to maintain, with different condenser options, for up to 1L evaporation flask.
|
Model
|
OLT-RE-2
|
|
Evaporation Flask
|
pear-shaped , 1L as defult, 24/40 or 24/29 joint
|
|
Receiving Flask
|
rond-bottm, 1L, 35/20 ball joint at the top
|
|
Vacuum Seal
|
PTFE+viton
|
|
Rotation Speed
|
10 to 180 rpm
|
|
Ultimate Vacuum
|
20mbar or less
|
|
Safety Features
|
fuse and ver-temperature protection
|
|
Lift Function
|
electrical motor lift
|
|
Stand base
|
heavy-duty SUS304 plate
|
|
Motor
|
induction motor
|
|
Bath Temp Range
|
+5℃ to 180℃
|
|
Accuracy
|
+/-1℃
|
|
Display
|
digtial display for speed, set/ actual temperature
|
|
Bath size
|
240mm diameterx 130mm height, 5.8liter
|
|
Bath material
|
SUS304
|
|
Total weight
|
40kg
|
|
Heating power
|
1500w
|
|
Voltage
|
108V-240V
|
1.High quality borosilicate glass 3.3 with excellent physical and chemical properties.
2.Comatible with evaporating flasks from 0.25L to 2L.
3.4 options of glassware assembly: vertical coil, diagonal coil, dry ice and vertical coil with reflux.
4.Easy to operate motor lift (150mm range )
5. Large 1200cm2 cooling surface.

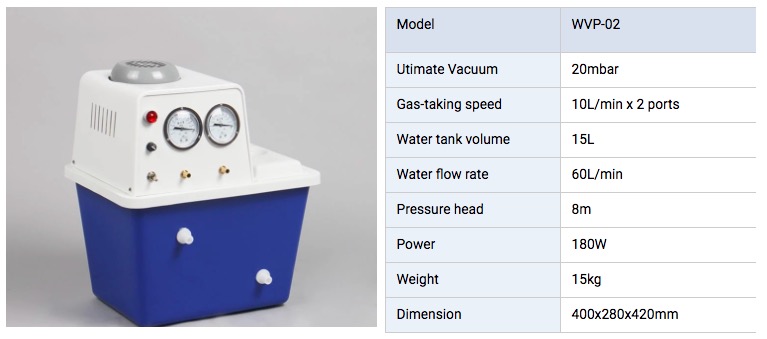

1.Dramatically reduced water consumption compared to tap water.
2.Assured constant water circulation which is independent from tap water contingencies like water availability or low pressure
3.Oil-free and maintemance-free design, absolute clean vacuum.
4.Chemical corrosion-resistant ABS stracture for long time service.
5.Two independent vacuum channels to support two vacuum systems simultaneously
6.Small footprint design, ideal for desktop rotary evaporator operation.
Packing and Shipping
-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
