Product Description
Our Round Electromagnets offer On/Off capability and can be controlled in an automated sheet metal handling system. Through the application of controlled DC electrical current, electromagnets have the ability to hold and release ferrous material on command. The Round Electromagnets are available in a variety of sizes.
|
Specifications
|
|
Brand
|
Landa
|
Product Name
|
H1505 circular electromagnet
|
|
Model
|
H1505
|
Rated Voltage
|
DC 6v 12v 24v
|
|
Power
|
0.85-1.7w
|
Force
|
20-25N
|
|
Waterproof Class
|
IP65
|
Duty Cycle
|
50-100%
|
|
Cable Length
|
200mm
|
Material
|
Metal, Electronic Parts
|
|
Action Form
|
Holding type
|
Weight(N.W.)
|
0.04kg
|
|
Install Style
|
Screw
|
Thread Size & Deepth(mm)
|
M3,5
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Insulation Class
|
B
|
|
Packaging Details
|
|
Body Size
|
D15*H5(mm)
|
Carton Box Size(Standard)
|
350*310*180(mm), accepted custom
|
Product Feature
1. Holding type, round shape, mini size, IP65 waterproof, DC solenoid electromagnet.
2. The electromagnet need to be energised to develop suction force, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.
3. Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.
4. Also offer custom shape and energise to release circular electromagnet

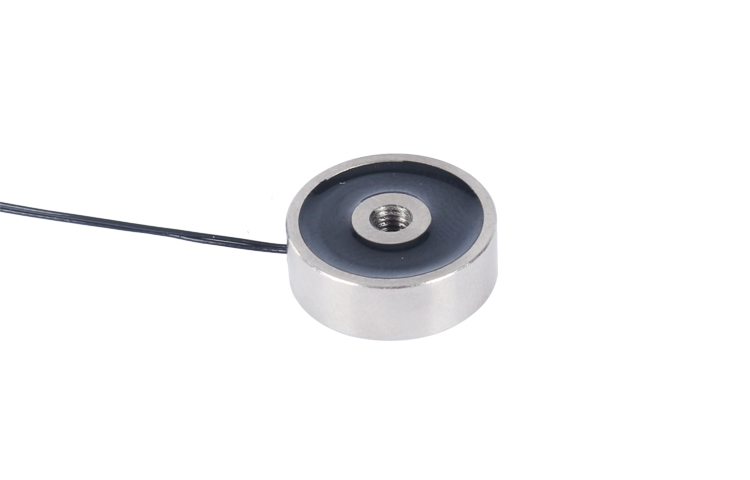

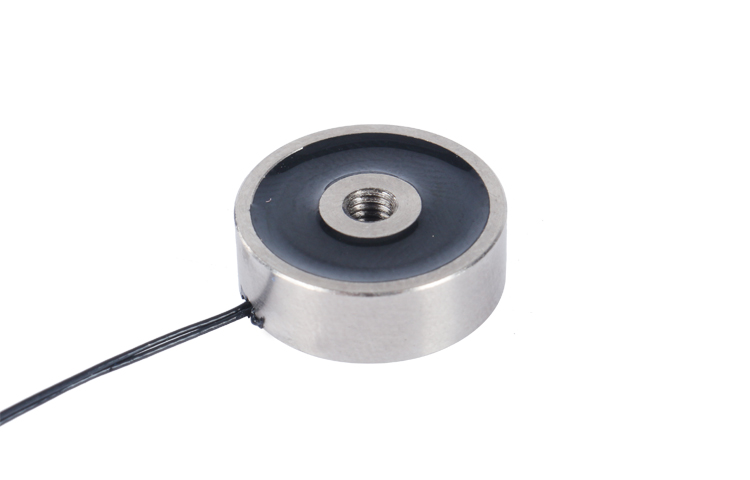

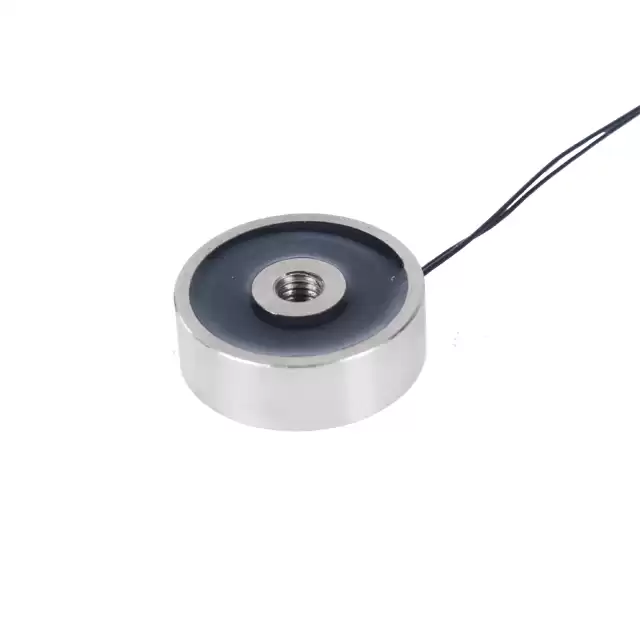

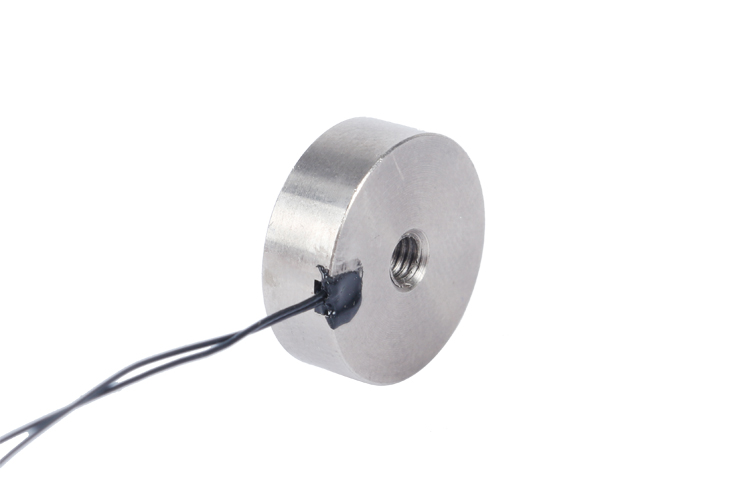

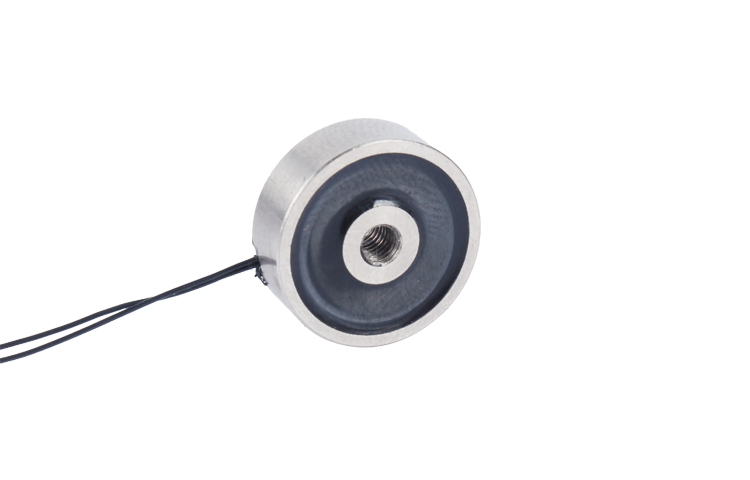

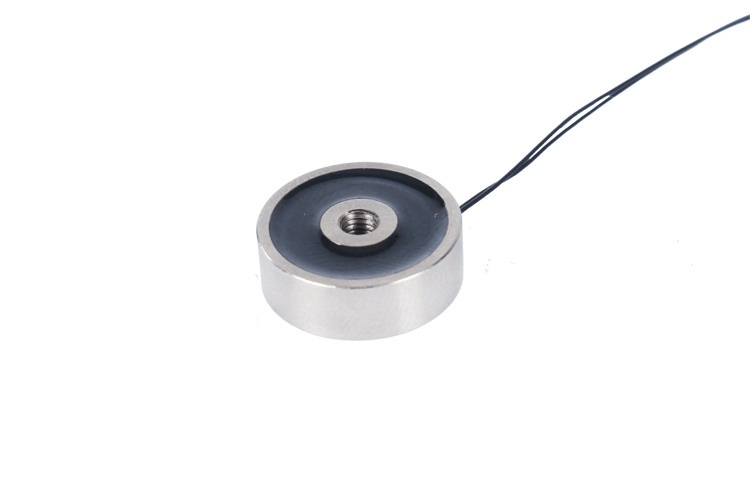

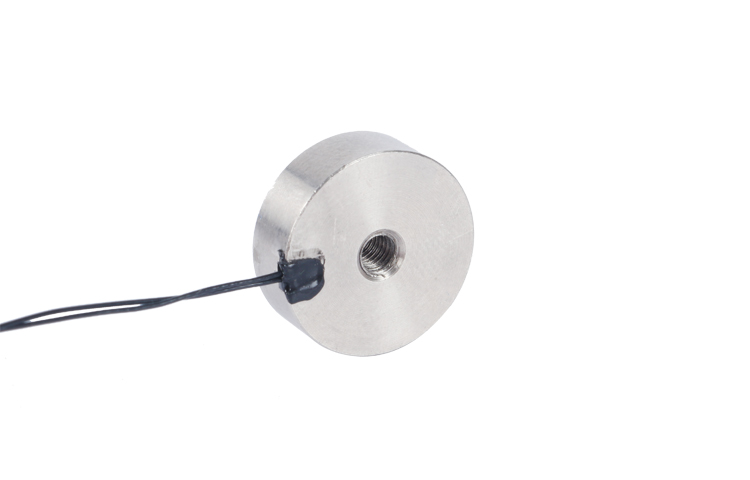

Detailed Images
