Bearing NO.
|
Dimensions(mm/in.)
|
Dynamic load ratings(N)
|
Static load ratings(N)
|
Weight
(kg)
|
|
d
|
D
|
B
|
C
|
S
|
S1
|
G
|
Ds
|
F
|
|
UC202
|
15
|
1.8504
|
1.2205
|
0.6693
|
0.5
|
0.72
|
0.189
|
1/4-28UNF
|
0.146
|
12800
|
6600
|
0.19
|

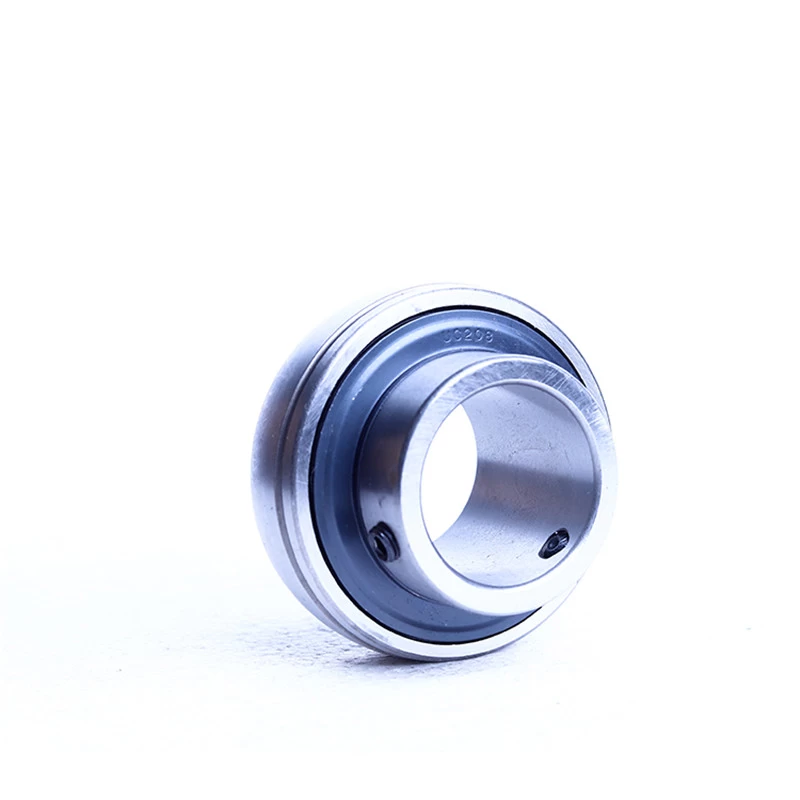

Miniature UC202 bearing insert, bore size 15 mm, Although its basic performance is similar to that of deep groove ball bearing, most of the bearings are used in relatively rough machinery, the installation and positioning are not accurate enough, the axis of the shaft and the seat hole is neutral, or the shaft is long and the deflection is large, and the accuracy of the bearing itself is not high enough, and some structures are relatively rough, so the actual performance of the bearing is relatively the same specification Deep groove ball bearings are subject to considerable discount.
The code of Insert ball bearing with set screw is uc200 series (light series), uc300 series (heavy series) and UB (sb) 200 series. If the application environment is small, uc200 series is usually selected on the applications,, otherwise uc300 series is selected. Generally, there are two jackscrews on the spherical surface ball bearing, with an included angle of 120 °. The characteristic is that the jackscrew is used to Jack the shaft when cooperating with the shaft, and then it has a fixed effect. However, the cooperation environment needs to have a small oscillation scale. It is widely used in textile machinery, ceramic machinery and other manufacturing industries.
