MINIMAL MAINTENANCE PLASTIC GRID MATTING HOOF CARE PRODUCTS
Plastic grid matting hoof care products have been proven to immediately reduce the amount of time needed for daily and long term maintenance of riding arena, paddocks, gated areas and feeding areas and so on. It needs minimal maintenance, once you install it you can free yourself forever.

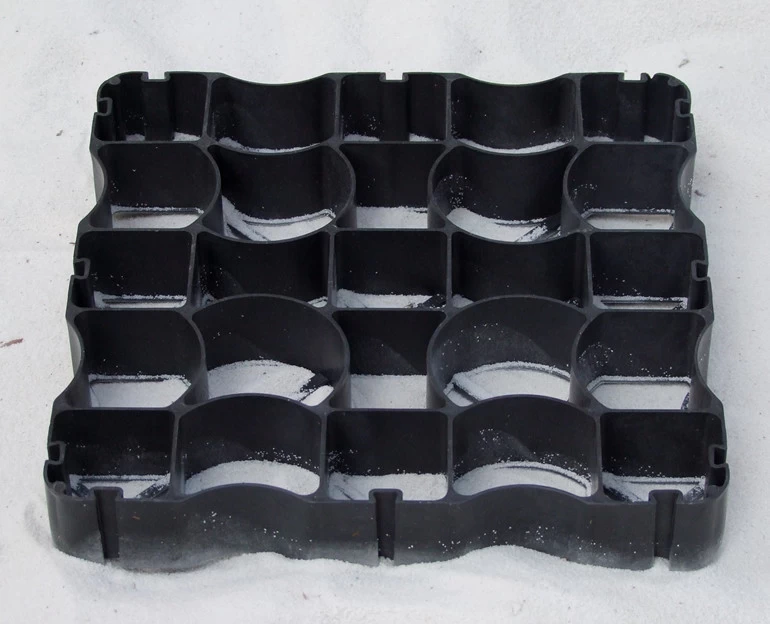

HOOF CARE PRODUCTS LY950 SPECIFICATION
| MATERIAL |
HDPE(100% Recycled High Density Polyethylene) |
| COLOR |
BLACK, DARK GREEN |
| SIZE |
336*336*50MM |
| CELL WALL THICKNESS |
2MM |
| WEIGHT |
0.65KG/PC, 5.85KG/M2 |
| |
|
TECHNICAL DATA
| LOADING BEARING CAPACITY |
More than 250tons/m2 after filled |
| OPEN CELL PERCENTAGE |
92% top; 75% base |
| ANTI HCL |
According to GB4218-1984, 30% x 24h, no visible change |
| ANTI NAOH |
According to GB4218-1984, 30% x 24h, no visible change |
| THERMAL AGING |
According to GB/T 7141-1999, 70IC x24h, no visible change |
| UV RESISTANCE |
According to GB/T18830, UPE＞30T(UVA)AV＜5%, Qualified |
| TOXICITY |
Non Toxic |
| DURABILITY |
At least 10 years in neutral ground of 4＜pH＜9 |
| PACKING |
Nine individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1m2 in one go. |
| PACKING |
570sqm/20'GP; 1150sqm/40'GP; 1310sqm/40'HC |
WHY WE ARE SPECIAL AND BETTER?
After studied the European Standard design, we made a revision on interlocking part, which is able to interlock tightly and ensure the interlocking parts no broken during horses running.
9 individual sections are pre-assembled in the factory to form easy-to-install units. This means that you can lay an area of 1 m² in one go.
APPLICATION
Indoor and outdoor riding arenas, Paddocks and open stables, Horse walkers, Lunging arena, Equestrian sports area, Tethering and mounting areas, Feeding spots, Tolt tracks, Racetracts, Gravel road, Round pens, Washing areas.
FEATURE
Non-slip
Elastic and robust
Crack-proof
Weatherproof
Environmentally friendly, 100% recyclable
High load capacity
Ammonia resistant
Withstands frost and UV light
Does not rot
ADVANTAGES
No mud
Equal load on all joints
The tread layer remains separate from the substructure
Minimal maintenance
High degree of elasticity
Load capacity of up to 250tons/m2
Outstanding drainage
More than 200 elastic elements per m2
Quick and easy to install
Environmentally friendly
Minimal hoof impact marks
Patented safety locking system
Permanent drainage
Robust surface with good grip
All-weather areas, the ideal surface all year round
Open stables keep free from mud and puddles.
