Product Description

Product Application

Parking is a universal problem as most cities are limited with space;lifting stereoscopic garage is the future trend.Jinsanyang(JSY) parking system provides and focuses on the research and the operation of sky parking.It solves the parking difficult problem.

Information

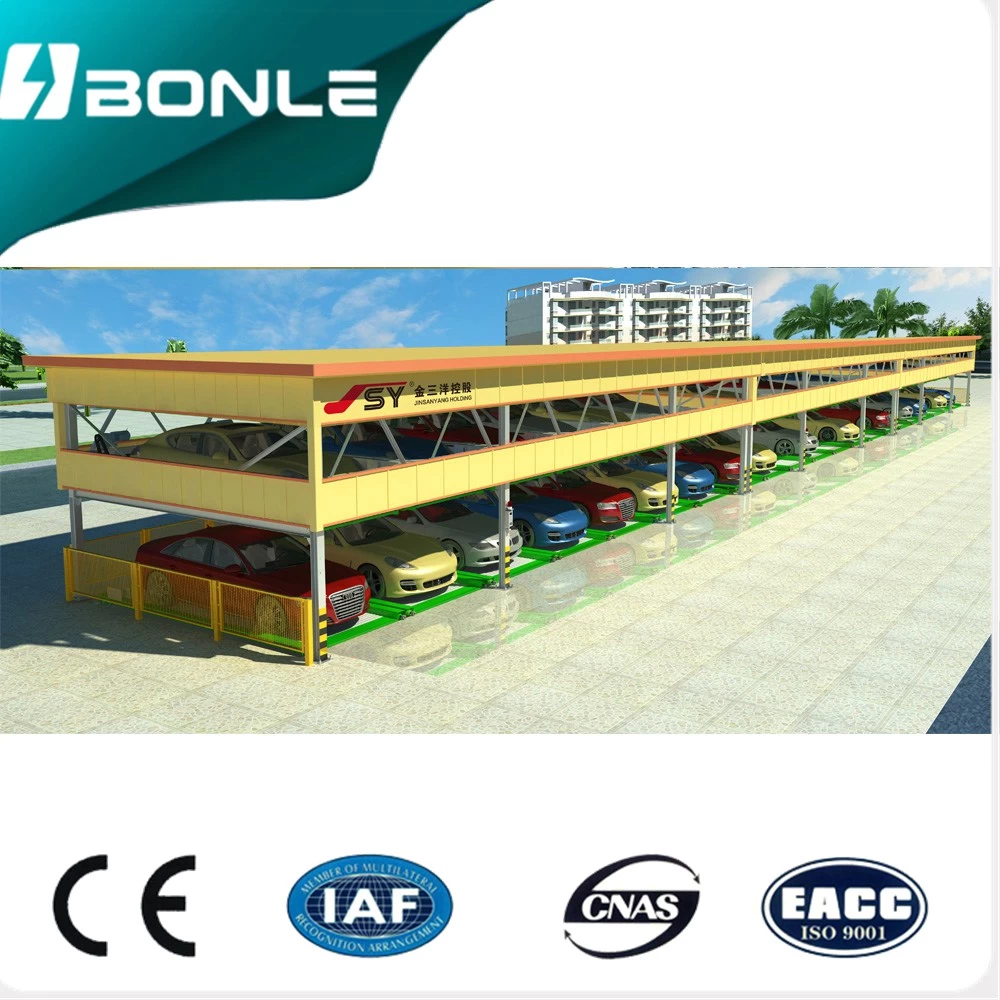

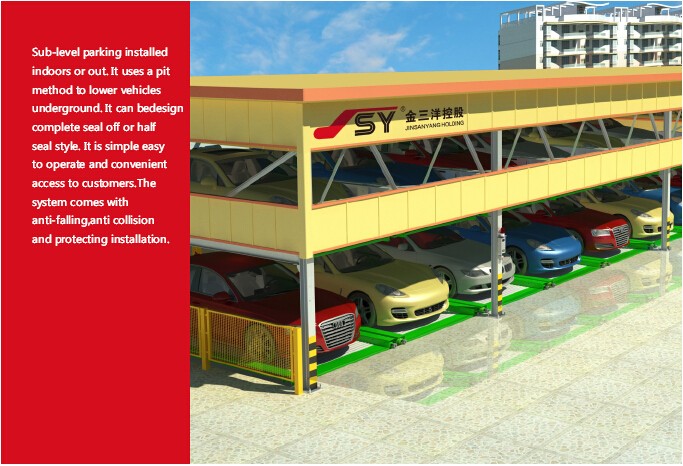

(Minus-One&Plus-two)Three-layer  lift-Sliding mechanical parking system
Equipment Size
L (MM)
5550
5850
5550
5250
4950
W (MM)
2400
2500
2400
2350
2300
H (MM)
2550
2050
2000
2000
2000
Dimensions of vehicle suitable for parking
Vehicle Type
SUV
PC/over size
PC/L
PC/Me
PC/C
L (MM)
5000
5300
5000
4700
4400
W (MM)
1850
1900
1850
1800
1750
H (MM)
2050
1550
1550
1450
1450
Weight (KG)
1850
2350
1700
1500
1300
Parking Capacity
3 Layers/3xN-1(N-Number Of Columns)
Drive
Motor Power
2.2KW~2.2KW
Lifting Speed (m/min)
5.5 m/min
Sliding Speed (m/min)
8 m/min

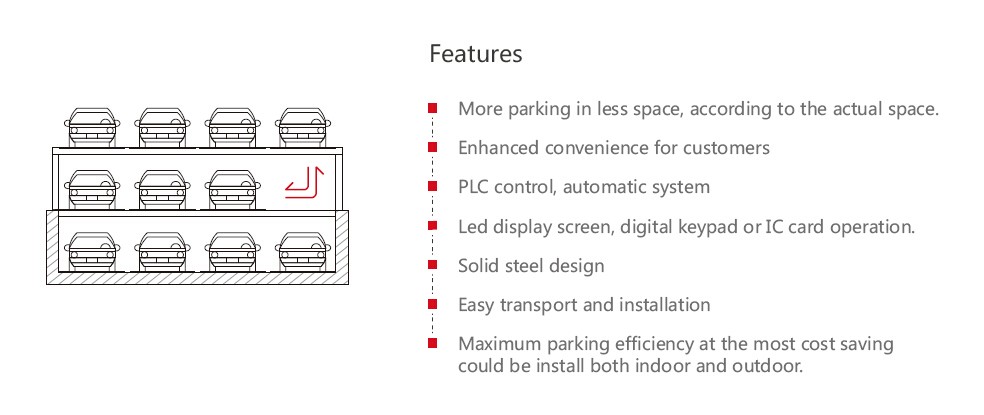

Features
Show
Advantage

Advantage


1.Steel Selection: Large-scale steel ，solid steel design


2.Installarion Technology: High strengh bolt , long-lasting life


3.Restrictor:Resonable design with external contracting holding for tires,


preventing slidding


4.Motor Position: Hiding motor , convenient usage
