Description

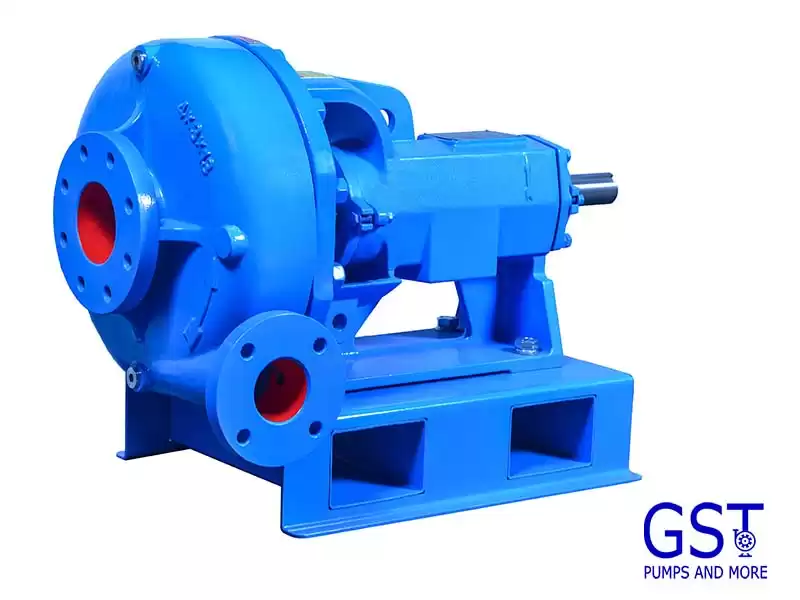

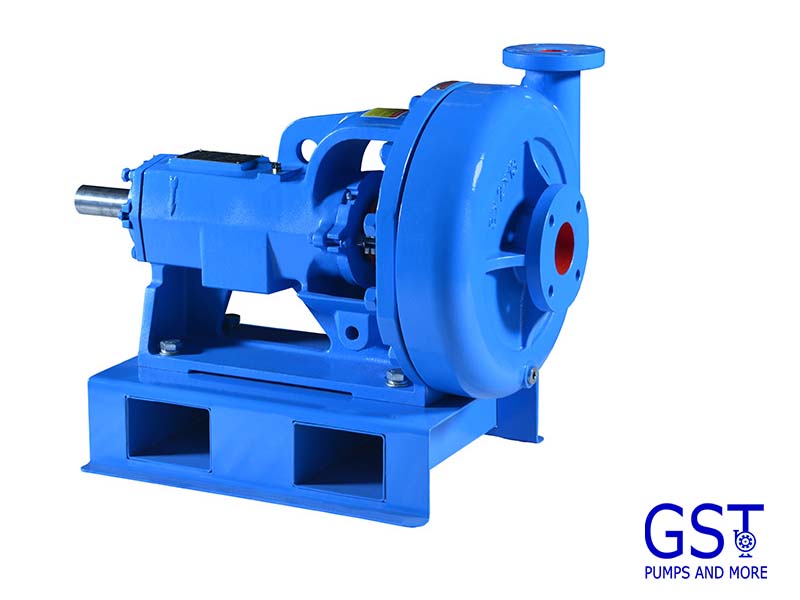

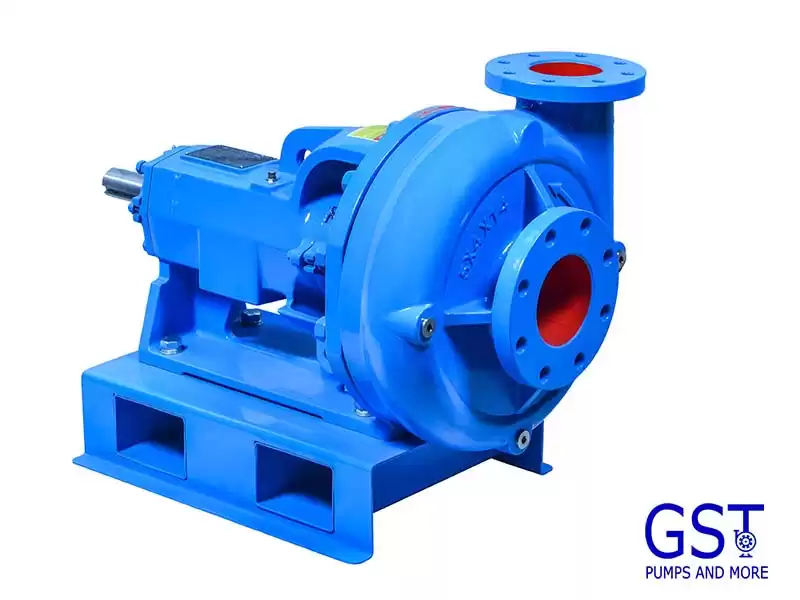

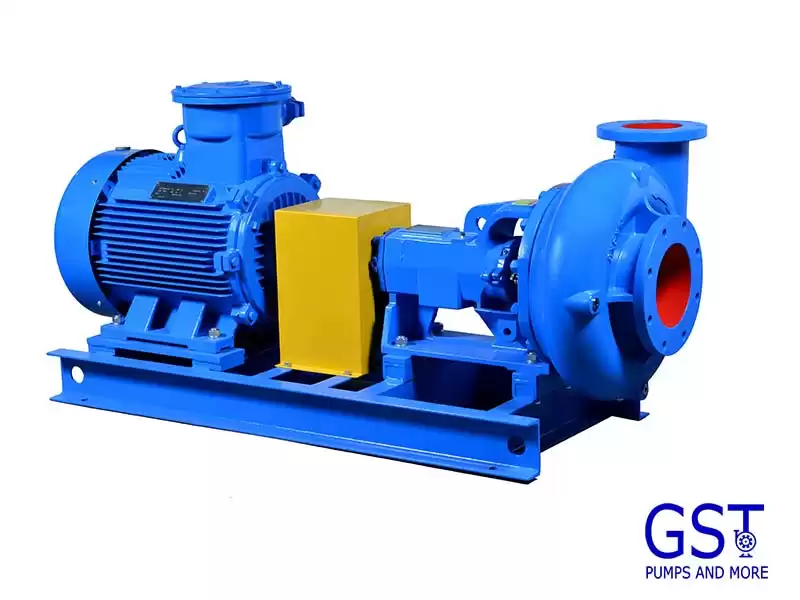

Mission type centrifugal sand pumps are open impeller design and with grease lubrication configuration. We select the best materials, engineering and craftsmanship available in the industry for making the best sand pump, and thru years of improvement and upgradation GST brand sand pump performance is reaching and exceeding Mission centrifugal pump. Our sand pump adopts single stage axial suction structure. Material of fluid end parts use wear resistant ductile iron, also available with high chrome corrosive and abrasive resistant material. Our thick, high strength concentric casing provides extended service life over conventional volute designs. The concentric casing design reduces turbulence and abrasive wear to the minimal level. Meanwhile, our wide open-vane impeller increases flow and produces lower thrust for extended bearing life. GST brand sand pump is capable to transfer abrasive and corrosive mud or slurry from a hundred GPM to over thousand GPM.
Features
- Long life: Highly wear resistant ductile iron for fluid end parts.
- Wider open impeller increases flow and longer bearing life.
- Long life mechanical seal for near zero leakage.
- Grease lubrication for bearings.
- Smooth impeller eye to reduce turbulence and higher efficiency.
Application
- Feed pump for desander, desilter, mud cleaner,
- Mixing pump for jet mud mixer.
- Weighting pump for solid control system
- Trip or metering pump
Specifications (based upon 20℃ clear water)
|
Model
|
Impeller
Diameter
|
Capacity,
m³/h(gpm)
|
Head,
m(feet)
|
Speed, rpm
|
Efficiency
|
Power, kW
|
NPSHR
m(feet)
|
|
50HZ
|
60HZ
|
%
|
Shaft power
|
Motor power
|
|
SBM8×6
|
12-1/2”
|
255 (1123)
|
32 (105)
|
1450
|
1750
|
67
|
33.2
|
75
|
2.5 (8.2)
|
|
11-1/2”
|
250 (1101)
|
24 (78.7)
|
1450
|
1750
|
63
|
25.9
|
55
|
2.7 (8.8)
|
|
11”
|
245 (1079)
|
20 (65.6)
|
1450
|
1750
|
62
|
21.5
|
45
|
2.7 (8.8)
|
|
10”
|
210 (925)
|
17 (55.8)
|
1450
|
1750
|
70
|
13.9
|
30
|
3.0 (9.8)
|
|
SBM6×5
|
12-1/2”
|
200 (881)
|
34 (111)
|
1450
|
1750
|
65
|
28.5
|
55
|
3.2 (10.5)
|
|
12”
|
195 (859)
|
31 (102)
|
1450
|
1750
|
68
|
24.2
|
45
|
3.0 (9.8)
|
|
11”
|
190 (837)
|
24 (78.7)
|
1450
|
1750
|
70
|
17.7
|
37
|
3.5 (11.5)
|
|
SBM5×4
|
12”
|
110 (484)
|
32 (105)
|
1450
|
1750
|
65
|
14.7
|
30
|
3.5 (11.5)
|
|
11”
|
105 (462)
|
27 (88.6)
|
1450
|
1750
|
68
|
11.4
|
22
|
4.0 (13.1)
|
|
10”
|
100 (440)
|
21 (68.9)
|
1450
|
1750
|
68
|
8.4
|
18.5
|
4.2 (13.8)
|
|
9-1/2”
|
95 (418)
|
17 (55.8)
|
1450
|
1750
|
68
|
6.5
|
15
|
4.2 (13.8)
|
|
SBM4×3
|
11-1/2”
|
90 (396)
|
30 (98.4)
|
1450
|
1750
|
65
|
11.3
|
22
|
3.6 (11.8)
|
|
11”
|
85 (374)
|
27 (88.6)
|
1450
|
1750
|
65
|
9.6
|
18.5
|
3.5 (11.5)
|
|
10”
|
80 (352)
|
21 (68.9)
|
1450
|
1750
|
66
|
6.9
|
15
|
3.5 (11.5)
|
|
9”
|
70 (308)
|
16 (52.5)
|
1450
|
1750
|
66
|
4.6
|
11
|
3.5 (11.5)
|
|
SBM3×2
|
11-1/2”
|
60 (264)
|
27 (88.6)
|
1450
|
1750
|
56
|
7.8
|
15
|
2.5 (8.2)
|
|
11”
|
50 (220)
|
25 (82)
|
1450
|
1750
|
56
|
6.1
|
11
|
2.5 (8.2)
|
|
10”
|
45 (198)
|
21 (68.9)
|
1450
|
1750
|
60
|
4.3
|
7.5
|
2.3 (7.6)
|
|
9”
|
40 (176)
|
16 (52.5)
|
1450
|
1750
|
60
|
2.9
|
5.5
|
2.1 (6.9)
|

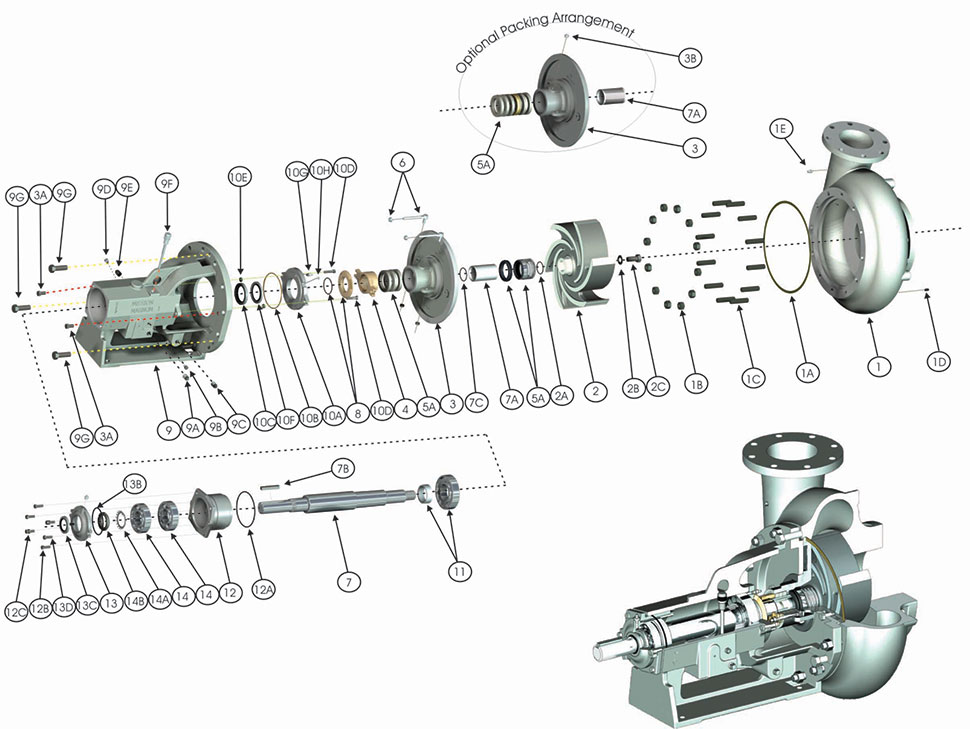

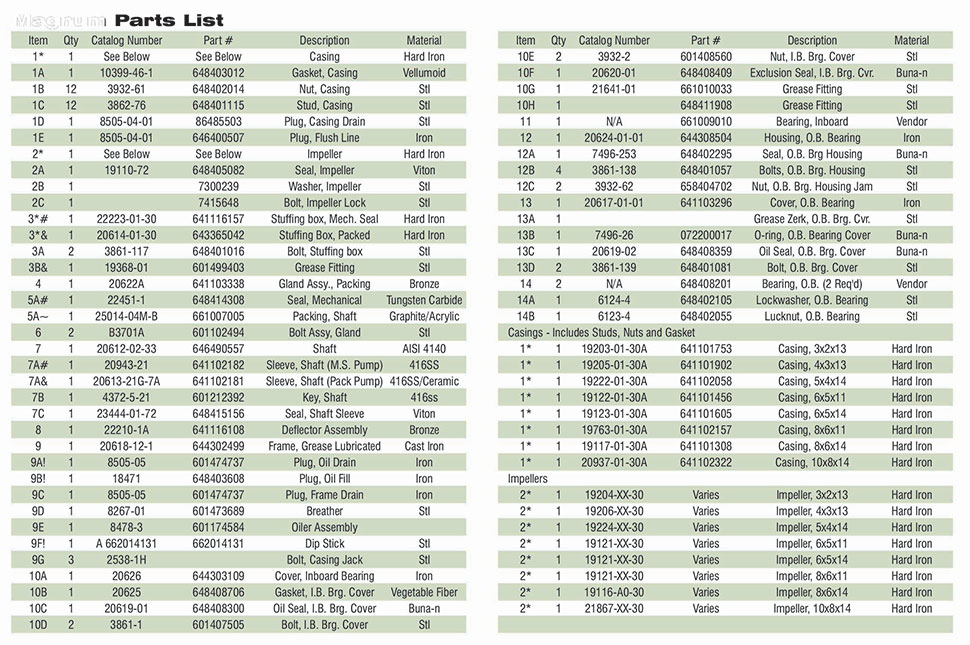

Product construction

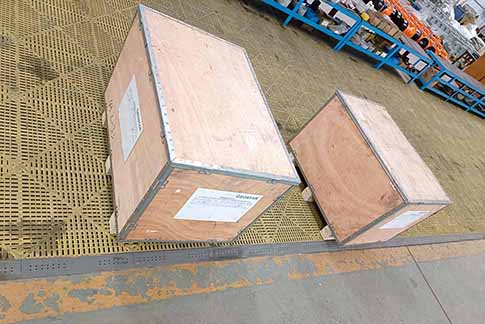

Packaging & Shipment
Packaging type: Export plywood box
Exporting port: Tianjin, Shanghai
FAQ
1. Who are you?
Tianjin Geostar Petroleum Equipment Co., Ltd. are integrated oilfield pump solution provider. We produce GST brand centrifugal pump and supply RG brand F series drilling mud pump, parts, plunger pump etc.
2. Why should we buy from you?
a. Competitive price
b. Quick delivery
c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.
3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.
4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.
5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, mud pump unit and complete equipment depends upon technical configuration.
