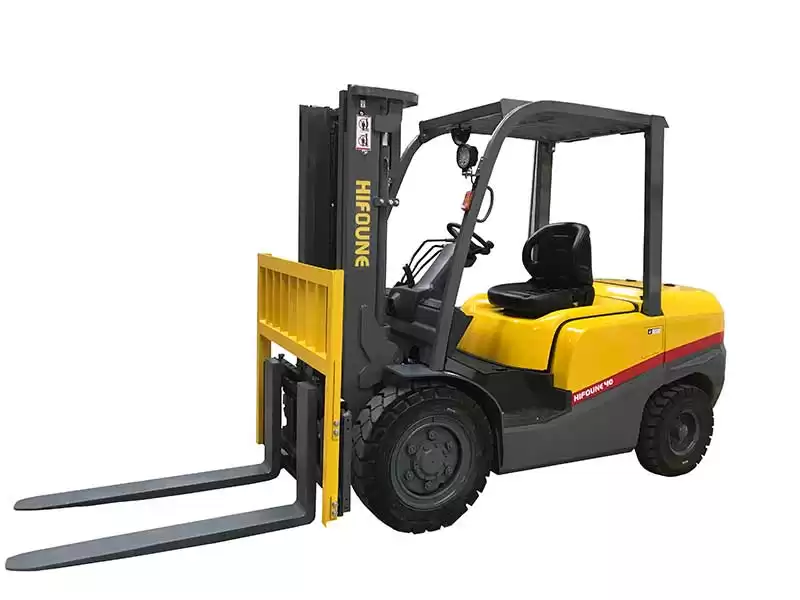

The 4 ton mini forklift truck produced by China hifoune
forklift truck suppliers adopts relatively advanced international technology and independently developed a new series of hifoune forklift internal combustion counterbalanced forklifts based on the original products. Our factory has also applied for the only independent brand of UNITCM. Our forklift truck manufacturer ais equipped with a research and development department, which specializes in the research and development of new models of forklifts, new configurations and engine debugging. By upgrading the appearance and reliability, the performance of the whole vehicle has been greatly improved compared with the original product. In terms of appearance, the appearance design method we adopted makes the whole car smooth and dynamic, in line with the appearance design trend.

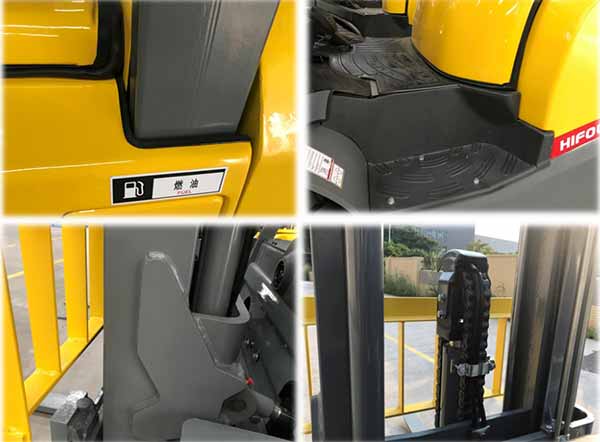

Eiesel powered forklift exterior
The exterior design method adopted makes the whole vehicle smooth and dynamic, which conforms to the trend of exterior design. The appearance of the whole vehicle is simple, and the exposed parts are all made of metal, which is firm and reliable.
Forklift Truck Specification
|
Dimensions
|
Overall Length (with fork)
|
mm
|
2820
|
|
Overall Width
|
mm
|
1300
|
|
Overhead Guard Height
|
mm
|
2130
|
|
Fork Size (LxWxT)
|
mm
|
1220×150×50
|
|
Mast Height (Fork lowered)
|
mm
|
2140
|
|
Battery (Voltage/Capacity)
|
V/Ah
|
12/90
|
|
Truck Weight
|
kg
|
5100
|
|
Fuel Tank Capacity
|
L
|
70
|
|
Engine
|
Brand
|
|
XINCHAI
|
ISUZU
|
|
Model
|
|
C495
|
4JG2
|
|
Rated Power
|
kw/rpm
|
42/2650
|
44.8/2450
|
|
Rated torque
|
n-m/rpm
|
174/1600
|
186/1800
|
|
Number Of Cylinder
|
|
4
|
4
|
|
Displacement
|
|
2.8
|
3
|
Performance description of
4T diesel forklift truck
For the entire forklift, we use high counterweight or long wheelbase design to make the vehicle’s longitudinal stability better. The average lifting height of the forklift is much higher than that of the original forklift. At the same time, it reduces the load on the rear axle and extends the steering tires. life. The thicker rear legs of the overhead guard improve the performance of the overhead guard and ensure the operator. The standard car is equipped with a hood lock to ensure the operator.
About the
engine of 4T diesel forklift
We generally use
Mitsubishi, Isuzu and Nissan engines. This is the best and most produced product in our current factory.
Forklift Advantages
The engine intake pipe adopts a high-position independent channel, which effectively prevents dust from being sucked in.
The thickening of the rear legs of the overhead guard increases the engine air intake, reduces the air intake resistance, enables the engine to burn more fully, and prolongs the engine life.
The large-capacity aluminum tube belt radiator and optimized heat dissipation channels further improve the heat dissipation capacity of the vehicle and ensure the reliable operation of the engine.
The drive axle and steering axle bridge bodies are formed by integral casting, which greatly improves the reliability of the whole vehicle.
