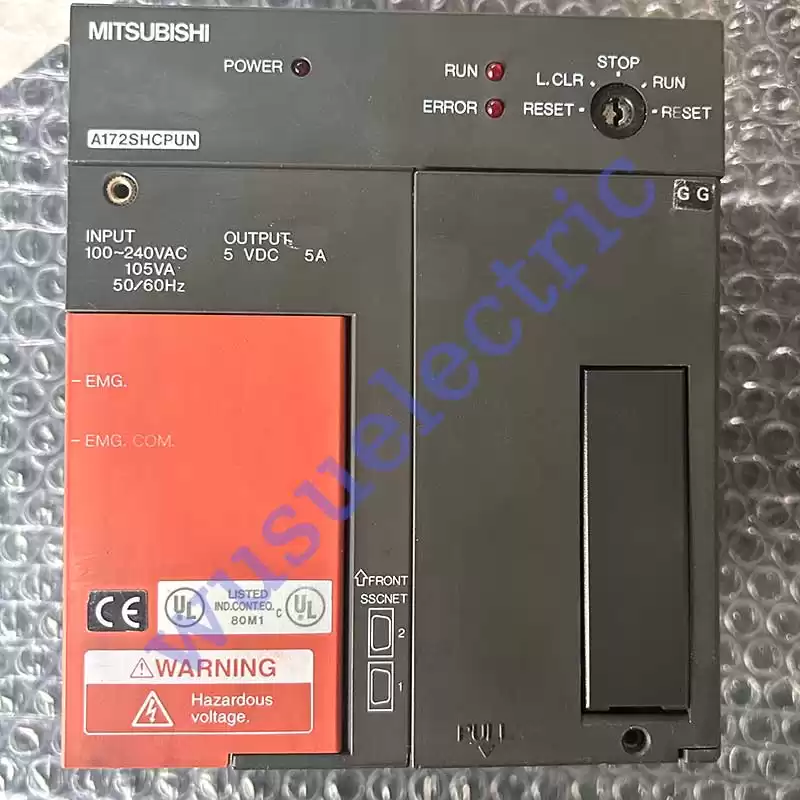

Mitsubishi A172SHCPUN

Model Number A172SHCPUN is a feature-rich motion controller designed and manufactured by Mitsubishi Electric. This controller provides precise control for up to 8 axes. Because it features a wide range of input and output signals, it is an excellent choice for motion control applications. The A172SHCPUN controller's compact size, high computing frequency, and sufficient memory capacity make it an ideal choice for demanding automation tasks.

The A172SHCPUN motion controller by Mitsubishi delivers exceptional performance and versatility for precise motion control applications. It supports up to 8 control axes, providing the capability to handle complex motion tasks with ease. In addition, it also features a comprehensive set of external input signals, including FLS (upper stroke limit), RLS (lower stroke limit), STOP signal, and DOG/CHANGE near-zero point dog/changeover between speed and position. TRA tracking is also supported, enhancing the controller's tracking capabilities. The A172SHCPUN operates at a current consumption of 1.63 Amperes at 5 volts DC, ensuring efficient power usage. It hass a computing frequency of 3.5 ms for 1 to 8 axes, enabling fast and accurate motion control. The controller offers a generous number of real I/O points, with 1024 available for seamless integration with external devices. The built-in RAM provides a memory capacity of 192kb, while the program capacity for the main sequence reaches up to 30k steps. With 8192 registers available for file registers (R), the A172SHCPUN allows for versatile data storage and manipulation. The controller's compact dimensions of 130 mm x 113.3 mm x 93.6 mm (5.12 in x 4.46 in x 3.69 in) make it suitable for installations with limited space. Despite its compact size, it maintains a sturdy build with a weight of 0.85 kg. The A172SHCPUN operates using a stored program repeated operation control method, ensuring reliable and efficient execution of motion programs. It offers both a refresh method and a direct method for I/O control, providing flexibility in selecting the desired control approach.

● A172SHCPUN

● DISCONTINUED BY MANUFACTURER

● MOTION CONTROLLER

● CPU

● 8 AXIS

● INPUT: 100-240 VAC

● 50/60 HZ

● OUTPUT: 5 AMP

● 5 VDC
