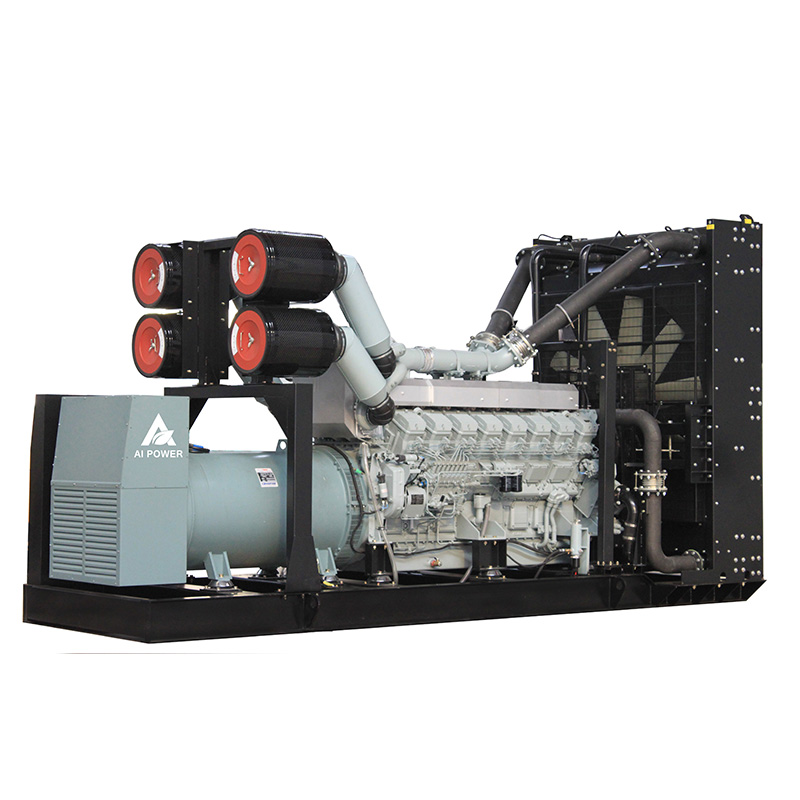

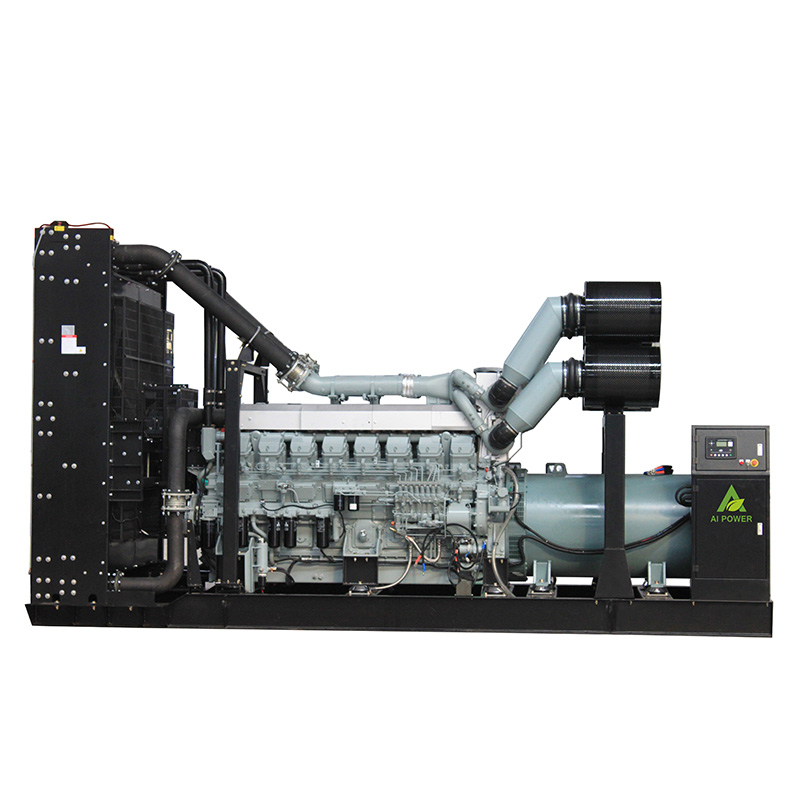

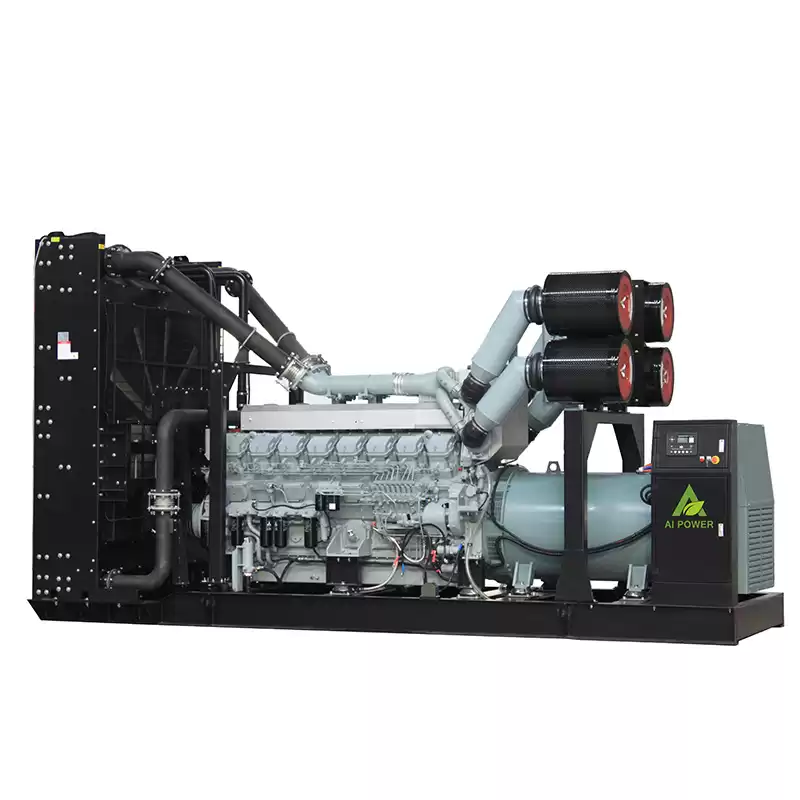

Mitsubishi Diesel Engine Generator 750KVA

Mitsubishi Diesel Generator Diesel Sets 600kw



Mitsubishi generator diesel 650KVA China

AI POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
Besides generators, we also product the refere product incldue lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switchgear.

Diesel generator Details
Model Ai-750GF
Power 750KVA
Frequency 50HZ
Voltage 380/220v(voltage can be customized)
Optional Type Open/soundproof/trailer
Size of Open type 3340*1550*2250mm
Weight of Open type 4800kg
With Diesel Engine
Brand&model Mitsubishi S6R2-PTA-C
Cylinders 6 L type
Bore*Stroke 170*220mm
Displacement 30L
Fuel Consumption at 100% Load 196g/kw.h
Speed Governor ECM
With Alternator
Optional Brands Stamford/Leroy Somer/Mecc Alte/Marathon
Exciter type Single bearing,brushless,Self-excited
Power factor 0.8
Voltage adjust range ≥5%
Insulation Grade H
Protection Grade IP23



Supply Scope

• Mitsubishi diesel Engine include air, fuel, oil filters, starting motor and charge alternator etc.

• Brushless AC alternator, single bearing, flange connection, with AVR
• Radiator with engine driven fan mounted on skid
• Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
• Anti-vibration pads between engine/alternator and base frame
• Circuit breaker 3P as standard, 4P optional
• Auto control panel
• Start battery with connecting cable and floating battery charger
• Flexbile pipe, exhaust elbow, industrial silencer etc.
• Standard tools kit
• Electric drawing, test report ,operation & maintaince manual of generator etc.
•Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc
