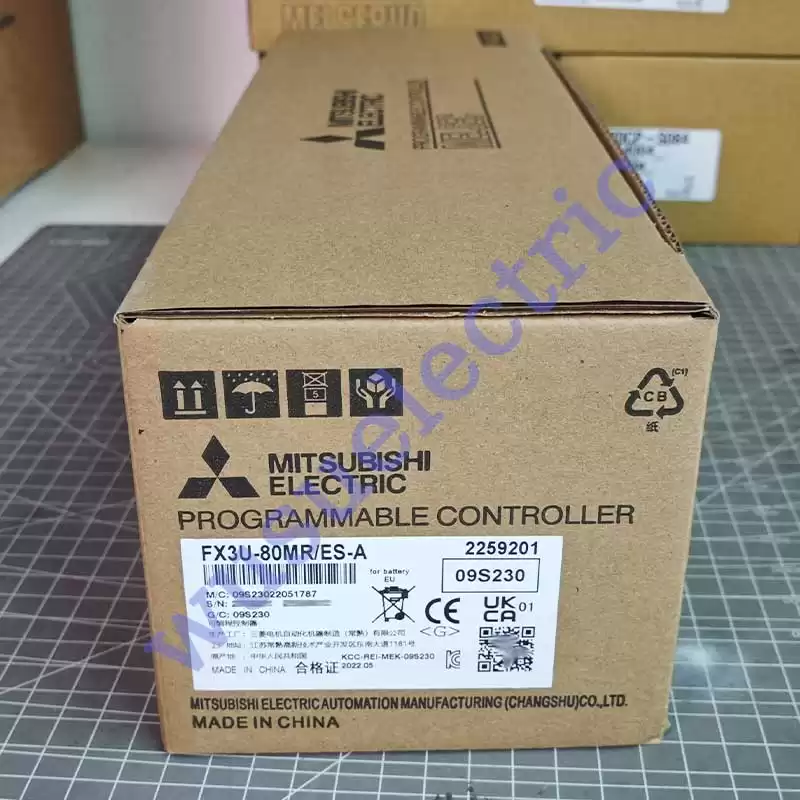

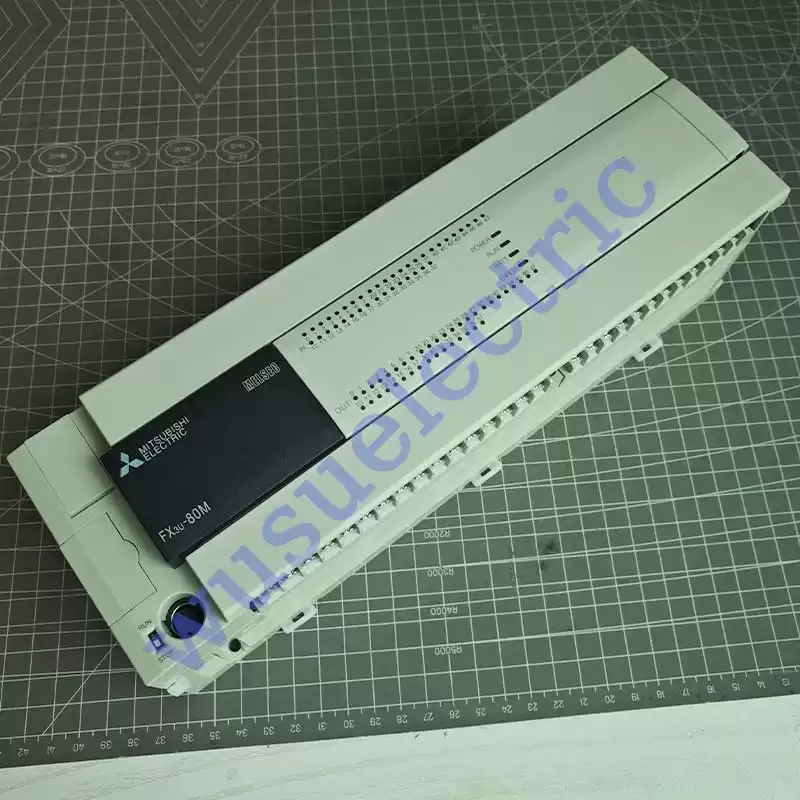

80I/O [40DI (40 x digital inputs (24Vdc; Sink/Source)) + 40DO (40 x digital outputs (Rly. NO contacts; 2A / 240Vac or 30Vdc; 10ms response))] - 64Ksteps (RAM; Program) memory capacity - connection capacity 256 x I/O points - with screw-clamp connections (I.O's) - with RS-422 communication capability - Supply voltage 100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac) - DIN rail mounting (285mm width) - equivalent to FX3U80MRES
| Primary brand |
Mitsubishi Electric |
| Main function |
CPU unit |
| Product series / family name |
Industrial automation > PLCs (Programmable Logic Controllers) > MELSEC-F (FX) series > Controllers (CPUs) |
| Sub-range name |
MELSEC-F - FX3U series |
| Functions |
High-end Programmable Logic Controller (PLC) CPU unit
Program execution type -- cyclical / Refresh mode processing |
| Design |
built-in I/Os |
| Supply voltage (AC) |
100Vac-240Vac (120Vac / 208Vac / 220Vac / 230Vac) |
| Programming languages |
Ladder diagram (LD) / Relay symbol language
Structured Ladder / Function Block Diagram (FBD)
Structured Text (ST)
Sequential Function Chart (SFC) |
| Memory capacity |
64Ksteps (RAM; Program)
7680 points (Auxiliary relays)
512 points (Timers)
235 points (Counters)
8000 points (Data registers)
32768 points (Extension registers) |
| Connection capacity |
256 x I/O points
384 x I/O points (with CC-Link or AnyWireASLINK) |
| Connection type |
screw-clamp connections (I.O's) |
| Communication protocol |
RS-422 |
| Mounting mode |
DIN rail |
| Digital inputs |
40 x digital inputs (24Vdc; Sink/Source) |
| Digital outputs |
40 x digital outputs (Rly. NO contacts; 2A / 240Vac or 30Vdc; 10ms response) |
| Dimensions |
W285mm x H90mm x D86mm |
| Ambient air temperature for operation |
+32°F...+131°F / 0°C...+55 °C |
| Ambient air temperature for storage |
-13°F...+167°F / -25°C...+75 °C |
| Processing time |
65ns / instruction (contact instruction) - 0.000065 ms
642ns / instruction (MOV instruction) - 0.000642 ms |
| Current consumption |
600mA / 0.6A |
| Power consumption |
50 W |
| Equivalent to |
FX3U80MRES |
| Compliant with standard(s) |
CE (EMC directive)
CE (LVD - Low Voltage Directive)
UL / cUL
KC
ABS approval
DNV approval
LR approval
GL approval
BV approval
RINA approval
NK approval
KR approval |
