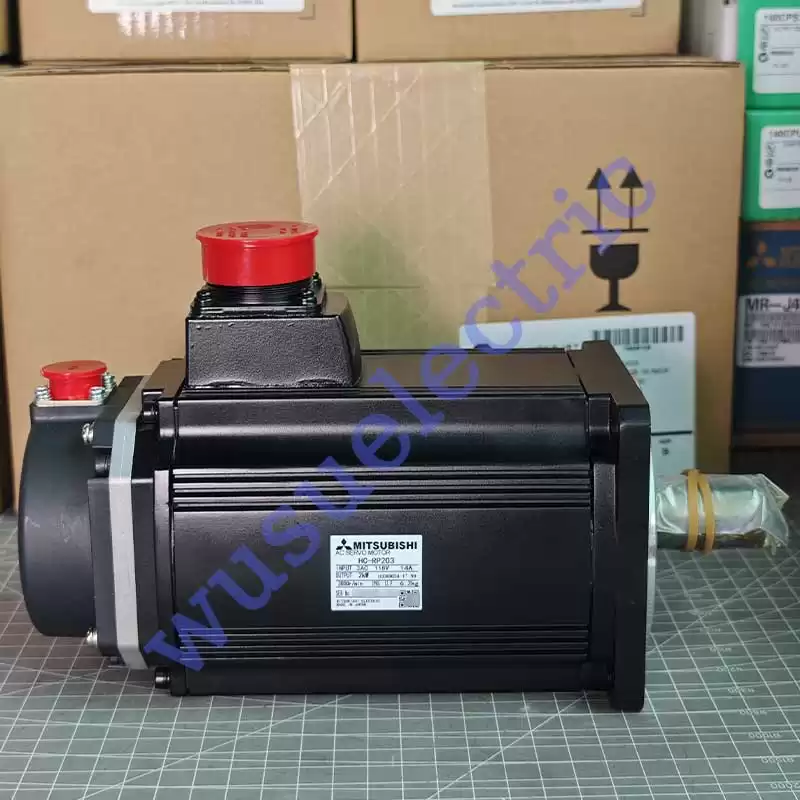

AC brushless rotary servo motor with straight shaft + built-in absolute feedback encod. (18-bit) + oil seal - Mitsubishi Electric (MELSERVO J3 series) - Rated output 2000W / 2kW - 18-bit (equivalent to 260000ppr) feedback - Rated current 14A - Supply voltage 200Vac class - Rated torque 6.37Nm nominal - Rated rotational speed 3000rpm - 100x100mm flange mounting - IP65 - rated for 0...+40°C ambient
| Primary brand |
Mitsubishi Electric |
| Main function |
AC servo motor |
| Product series / family name |
MELSERVO J3 series |
| Sub-range name |
HC-RP series |
| Functions |
AC brushless rotary servo motor |
| Design |
straight shaft
built-in absolute feedback encod. (18-bit)
oil seal
ultra-low inertia / medium power capacity |
| Supply voltage (AC) |
200Vac class |
| Rated current |
14A |
| Rated active power (kW) |
2000W / 2kW |
| Rotational speed |
3000rpm
4500rpm (maximum) |
| Torque |
6.37Nm nominal |
| Maximum torque |
15.9Nm |
| Moment of inertia |
0.00023kg.m2 (2.3kg.cm2) |
| Mounting mode |
100x100mm flange mounting |
| Resolution |
18-bit (equivalent to 260000ppr) feedback |
| Degree of protection |
IP65 |
| Dimensions |
H146mm x W100mm x D240.5mm |
| Ambient air temperature for storage |
-15°C...+70 °C |
| Maximum current |
37 A |
| Benefits |
well suited for high-throughput operations
ultra-high throughput material handling systems |
