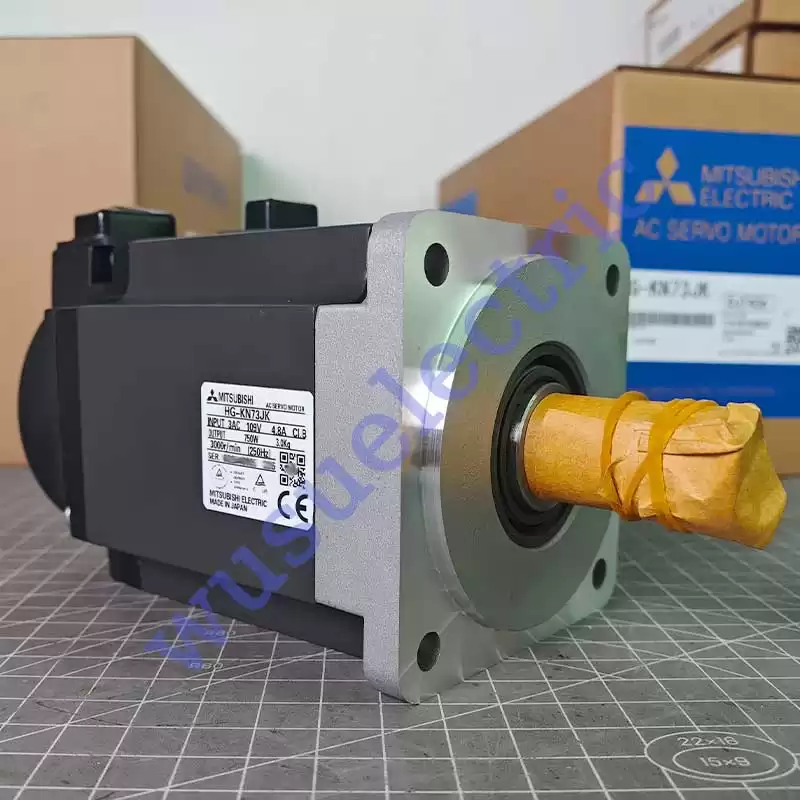

Mitsubishi Electric (MELSERVO JE series) - Rated output 750W / 0.75kW - 131072ppr (equivalent to 17-bit) feedback - Rated current 4.8A - Supply voltage 200Vac class - Rated torque 2.4Nm nominal - Rated rotational speed 3000rpm - 80x80mm flange mounting - IP65 - rated for 0...+40°C ambient
| Primary brand |
Mitsubishi Electric |
| Main function |
AC servo motor |
| Product series / family name |
MELSERVO JE series |
| Sub-range name |
HG-KN series |
| Functions |
AC brushless rotary servo motor |
| Design |
keyed shaft
built-in absolute feedback encod. (17-bit)
oil seal
Totally Enclosed Natural Cooling (TENC) structure
low inertia / small power capacity
natural cooling |
| Supply voltage (AC) |
200Vac class |
| Rated current |
4.8A |
| Rated active power (kW) |
750W / 0.75kW |
| Rotational speed |
3000rpm
5000rpm (maximum) |
| Torque |
2.4Nm nominal |
| Maximum torque |
7.2Nm |
| Moment of inertia |
0.00128kg.m2 (1.28kg.cm2) |
| Mounting mode |
80x80mm flange mounting |
| Resolution |
131072ppr (equivalent to 17-bit) feedback |
| Degree of protection |
IP65 |
| Dimensions |
H96mm x W80mm x D162.5mm |
| Ambient air temperature for operation |
0...+40 °C |
| Ambient air temperature for storage |
-15°C...+70 °C |
| Maximum radial load |
392 N |
| Maximum axial load |
147 N |
| Maximum current |
14 A |
