Part Number AJ65BTRP110B
Configured Specifications
Type Repeater Control Type Network Varieties CC-Link
Representative Standard CE / UL / CUL Classification B Part
Note Used as a set with AJ65BT-RPI-10A (A part). 156 k/625 k/2.5 Mbps, Conforming standard: UL/cUL CE (EMC) RoHS 6
Product Specifications
Part Numbers
CC-Link Repeater Unit Space Optical Repeater Unit Specifications
CC-Link Space Optical Repeater: related image

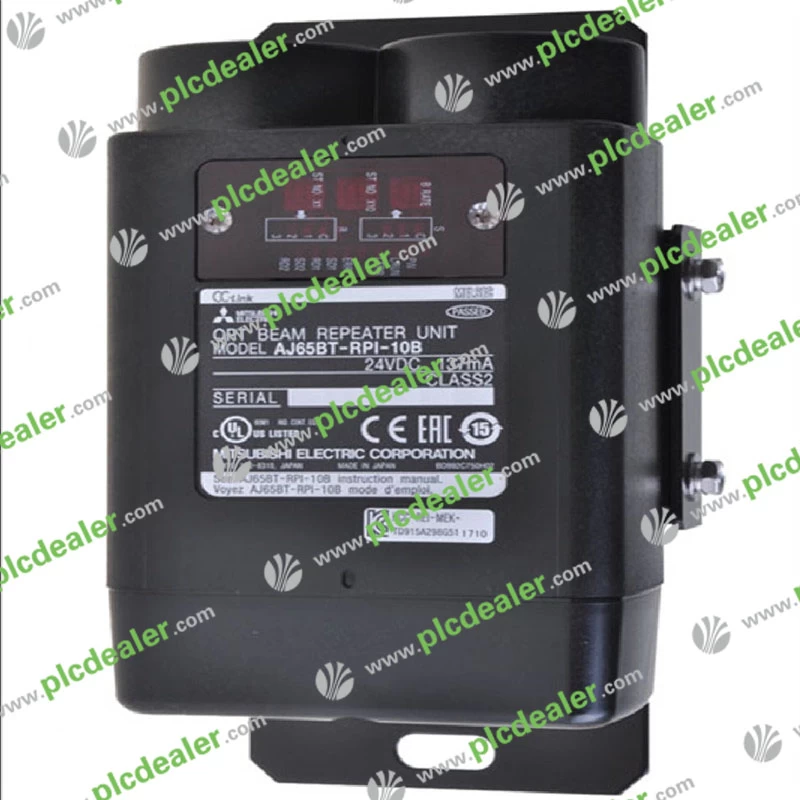

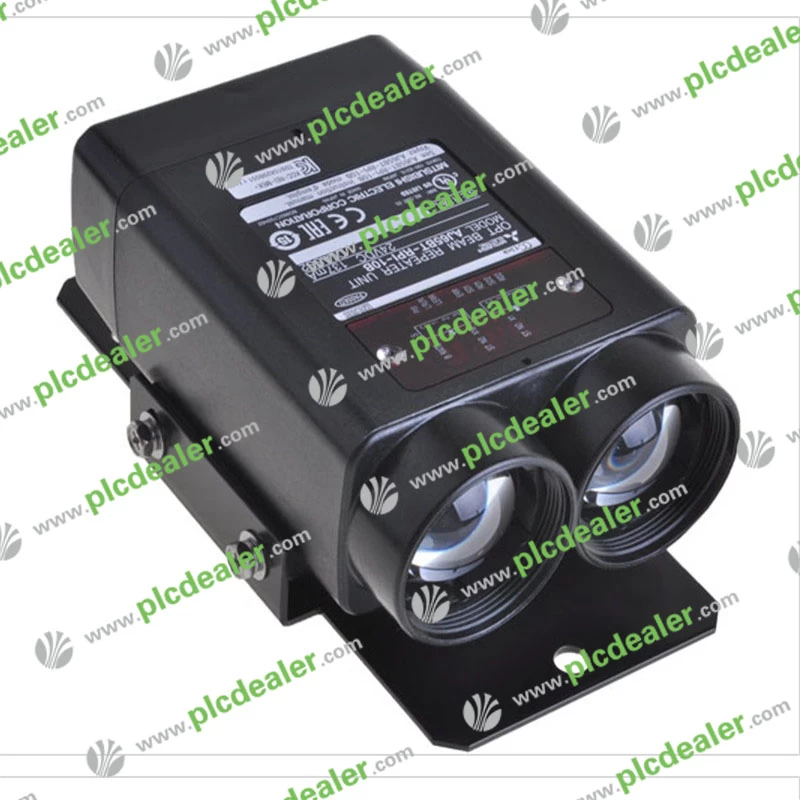

AJ65BT-RPI-10A/AJ65BT-RPI-10B external appearance
AJ65BT-RPI-10A/AJ65BT-RPI-10B dimensional drawing unit: mm
Product Name Type Name Content Number Of Occupied Points Station Type
Space Optical Repeater Unit AJ65BT-RPI-10A AJ65BT-RPI-10A and AJ65BT-RPT-10B are used as a set.
Compatible with 156 k / 625 k / 2.5 Mbps,
Spatial transmission from 0 to 100 m with infrared rays
Optical communication status monitor function -/1 Remote I/O with one station occupied
AJ65BT-RPI-10B -/1 Remote I/O with one station occupied
Common Items
Optical Communication Specifications -
Optical Transmission Distance 0 to 100 m
Directivity Angle When the optical transmission distance is from 0 to 50 m: full angle of 2°
When the optical transmission distance is from 50 to 100 m: full angle of 1°
Modulation Frequency A Unit → B Unit: 36±3 MHz
B Unit → A Unit: 44±2.5 MHz
Modulation Method FSK
CC-Link Specifications -
Transmission Speed 156 kbps / 625 kbps / 2.5 Mbps (Selectable)
Maximum Number Of Segment Connection Levels AJ65BT-RPI only: 2 levels
Combination of AJ65BT-RPI and AJ65SBT-RPT: 3 levels
Combination of AJ65BT-RPI, AJ65SBT-RPS, AJ65SBT-RPG, AJ65FBTA-RPH and AJ65BTS-RPH: 2 levels
Maximum Transmission Distance Of Each Segment Varies depending on the transmission speed.
Maximum Number Of Connected Devices 64 devices
Number Of Occupied Stations Monitor Function Used: 1 station
Monitor Function Not Used: 0 station
Dielectric Strength Between all DC external terminals at once and earth: 500 V AC for 1 minute
Insulation Resistance Between all DC external terminals at once and earth: 10 MΩ or more at 500 V DC on an insulation resistance meter
Unit Power Supply Voltage 20.4 to 26.4 V DC
Current 137 mA (When TYP. 24 V DC)
External Dimensions Height (H) 100.0 mm
Width (W) 161.0 mm
Depth (D) 57.5 mm
Mass 0.5 kg
Ambient Operating Temperature 0 to 50℃
Ambient Storage Temperature -20 to 75℃
Ambient Operating Humidity 10 to 90% RH, no condensation
Ambient Storage Humidity 10 to 90% RH, no condensation
Vibration Resistance JIS B 3502, IEC 61131-2 compliant Under Intermittent Vibration Frequency: 5 to 8.4 Hz, Single amplitude: 3.5 mm
Frequency: 8.4 to 150 Hz, Constant acceleration: 9.8 m/s2
Sweeps: 10 sweeps in each direction of X, Y and Z
Under Continuous Vibration Frequency: 5 to 8.4 Hz, Single amplitude: 1.75 mm
Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m/s2
Impact Resistance JIS B 3502, IEC 61131-2 compliant (490 m/s2, 10 times in each direction of X, Y and Z)
Operating Atmosphere There shall be no significant amount of dust, and no corrosive gas.
Ambient Illuminance 10,000 lx or less (not subject to direct sunlight)
Cooling Method Self-cooling
Operating Altitude 0 to 2,000 m
Installation Location Indoor
Overvoltage Category II or lower
Pollution Degree 2 or less
Basic Information
Type Repeater Control Type Network Varieties CC-Link Representative Standard CE / UL / CUL
