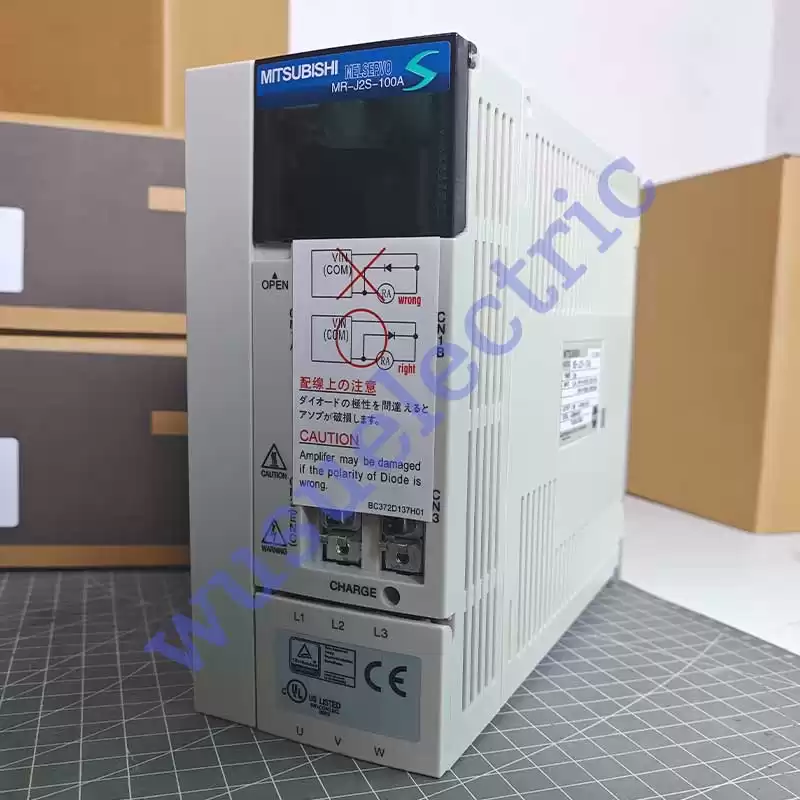

Rated output 1000W / 1kW - Supply voltage 200Vac-230Vac (200V class; 220Vac / 230Vac) (Single-phase input (2P) or 3-phase input (3P)) - rated for 0...+55°C ambient
| Primary brand |
Mitsubishi Electric |
| Main function |
AC servo drive |
| Product series / family name |
MELSERVO J2S series |
| Sub-range name |
MR-J2 series |
| Functions |
AC motion servo drive / amplifier
sine wave PWM control/current control method
speed control mode
torque control mode |
| Design |
built-in dynamic brake
natural cooling |
| Supply voltage (AC) |
200Vac-230Vac (200V class; 220Vac / 230Vac) |
| Type of network |
Single-phase input (2P) or 3-phase input (3P) |
| Rated active power (kW) |
1000W / 1kW |
| Protection functions |
overcurrent shut-off
regeneration overvoltage shut-off
overload shut-off (electronic thermal)
servo motor overheat protection
encoder fault protection
regeneration fault protection
undervoltage/sudden power outage protection
overspeed protection
excessive error protection |
| Communication protocol |
No communication interface |
| Digital inputs |
1 x digital input (24Vdc; sink/source) (EMG)
1 x digital input (24Vdc; sink/source) (LSP)
1 x digital input (24Vdc; sink/source) (LSN)
1 x digital input (24Vdc; sink/source) (SON)
1 x digital input (24Vdc; sink/source) (RES)
1 x digital input (24Vdc; sink/source) (PC / ST1 / RS2)
1 x digital input (24Vdc; sink/source) (TL / ST2 / RS1)
1 x digital input (24Vdc; sink/source) (SP2) |
| Digital outputs |
1 x digital output (rly. contact type) (ALM)
1 x digital output (rly. contact type) (ZSP)
1 x digital output (rly. contact type) (TLC / VLC) |
| Analog inputs |
1 x analog input (0-10Vdc) (TLA / TC)
1 x analog input (-10...+10Vdc) (VC / VLA) |
| Resolution |
17-bit / 131072ppr encod. feedback input |
| Dimensions |
H168mm x W70mm x D190mm |
| Ambient air temperature for operation |
0...+55 °C |
| Ambient air temperature for storage |
-20°C...+65 °C |
| Current consumption |
54A input |
| Power consumption |
(drive auxiliary power consumption) 50 W |
| Technical compatibility with |
HC-SFS series
HC-LFS series |
