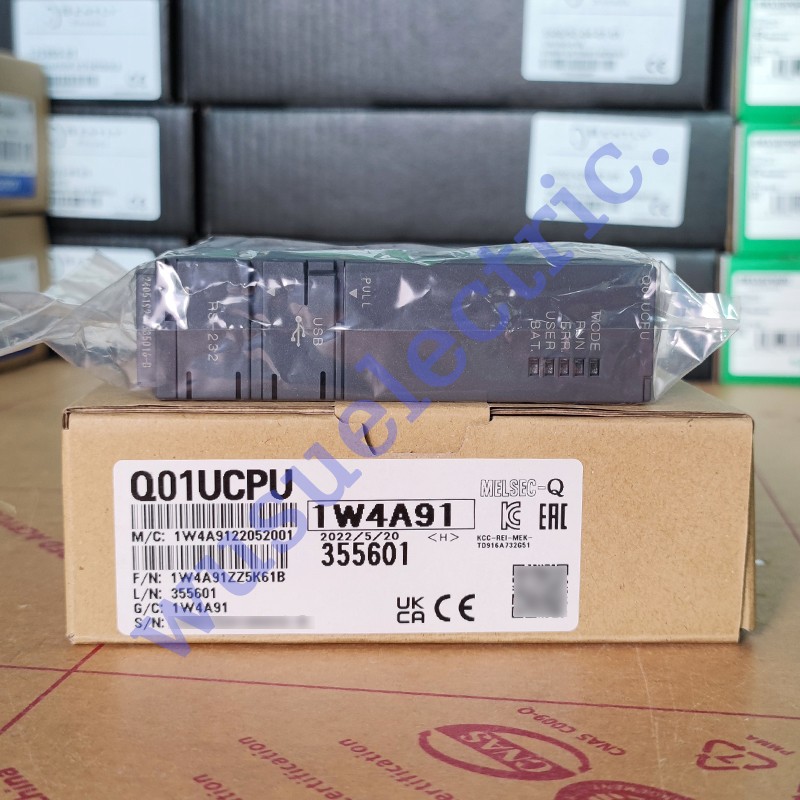

Specifications
| Primary brand |
Mitsubishi Electric |
| Main function |
CPU unit |
| Product series / family name |
Industrial automation > PLCs (Programmable Logic Controllers) > MELSEC-Q (QnU) series > Controllers (CPUs) |
| Sub-range name |
MELSEC-Q QnU series |
| Functions |
Universal Programmable Logic Controller (PLC) CPU unit
I/O control system -- Refresh system
Program execution type -- stored-program cyclic operation |
| Supply voltage (DC) |
5Vdc (from dedicated Q-series P.S.U.) |
| Programming languages |
Ladder diagram (LD) / Relay symbol language
Structured Text (ST)
Logic symbolic language
Function Block Diagram (FBD)
MELSAP3 (SFC)
MELSAP-L |
| Memory capacity |
15Ksteps / 60KBytes (Program)
2048 points (Timers)
1024 points (Counters)
12288 points (Data registers)
8192 points (Internal relays)
8192 points (Latch relays)
8192 points (Link relays)
8192 points (Link register)
2048 points (Annunciator)
2048 points (Edge relays)
2048 points (Link special relays)
2048 points (Link special register)
65536 points (File registers)
8192 points (Step relays)
20 points (Index register / standard device register)
10 points (32-bit ZR indexing)
512 points (Pointer)
128 points (Interrupt pointer)
2048 points (Special relays)
16 points (Function input FX)
16 points (Function input FY)
5 points (Function register FD) |
| Connection capacity |
1024 x I/O points |
| Connection type |
USB connector
9-pin D-Sub female connector (RS-232) |
| Communication protocol |
RS-232 |
| Mounting mode |
Backplane / rack |
| Ambient air temperature for operation |
+32°F...+131°F / 0°C...+55 °C |
| Ambient air temperature for storage |
-13°F...+167°F / -25°C...+75 °C |
| Processing time |
60ns / instruction (LD instruction) - 0.00006 ms
120ns / instruction (MOV instruction) - 0.000120 ms
9.79μs / instruction (PC MIX value) - 0.00979 ms
240ns (Floating point addition) - 0.00024 ms |
| Refreshing time |
(Constant scan) 0.5ms-2s / 0.0005-2 s |
